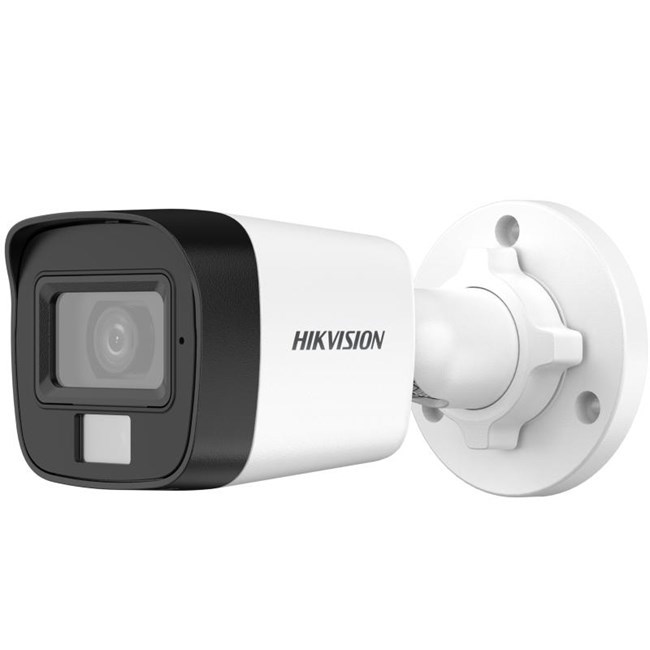

Hikvision DS-2CE16D0T-EXLPF 2MP 2.8mm Smart Hybrid TVI/AHD/CVI/CVBS Bullet Kamera

DS-2CE16D0T-EXLPF

2MP Smart Hybrid Light Fixed Mini Bullet Camera

• High quality imaging with 2 MP, 1920 × 1080 resolution
• Smart-Hybrid light, optimize your security with flexible lighting options
• 2.8 mm, 3.6 mm fixed focal lens
• Up to 20 m IR distance for bright night imaging
• Up to 20 m white light distance for bright night imaging
• One port for 4 switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)

Camera
Image Sensor : 2 MP CMOS
Max. Resolution : 1920 (H) × 1080 (V)
Min. Illumination : 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
Shutter Time : PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & Night : ICR
Angle Adjustment : Pan: 0 to 360°, Tilt: 0 to 90°, Rotate: 0 to 360°
Signal System : PAL/NTSC


Lens
Lens Type : 2.8 mm
Focal Length & FOV :
2.8 mm, horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113°

3.6 mm, horizontal FOV: 77°, vertical FOV: 43°, diagonal FOV: 90°

Lens Mount : M12


Illuminator
Supplement Light Type : Smart,IR,White Light
Supplement Light Range :
IR : Up to 20 m

White Light : Up to 20 m

Image Parameters Switch : STD/HIGH-SAT/HIGHLIGHT
Image Settings : Brightness, Sharpness, Smart IR
Frame Rate :
TVI: 1080p @ 30 fps, 1080p @ 25 fps

AHD: 1080p @ 30 fps, 1080p @ 25 fps

CVI: 1080p @ 30 fps, 1080p @ 25 fps

CVBS: PAL/NTSC

Day/Night Mode : Auto/Color
Wide Dynamic Range (WDR) : Digital WDR
Image Enhancement : DWDR/BLC/HLC/Global
White Balance :  Auto/Manual
AGC : Yes


Interface
Video Output : Switchable TVI/AHD/CVI/CVBS


General
Material : Plastic
Dimension : Ø70 mm × 138.8 mm (Ø2.76" x 5.46") , Max. 150 g (0.33 lb.)
Operating Condition : -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
Communication :  HIKVISION-C
Language : English
Power Supply : 12 VDC ± 25%, Max. 3.2 W

*You are recommended to use one power adapter to supply the power for one camera.

Approval
Protection : IP67

EAN Numarası: 6931847187613
