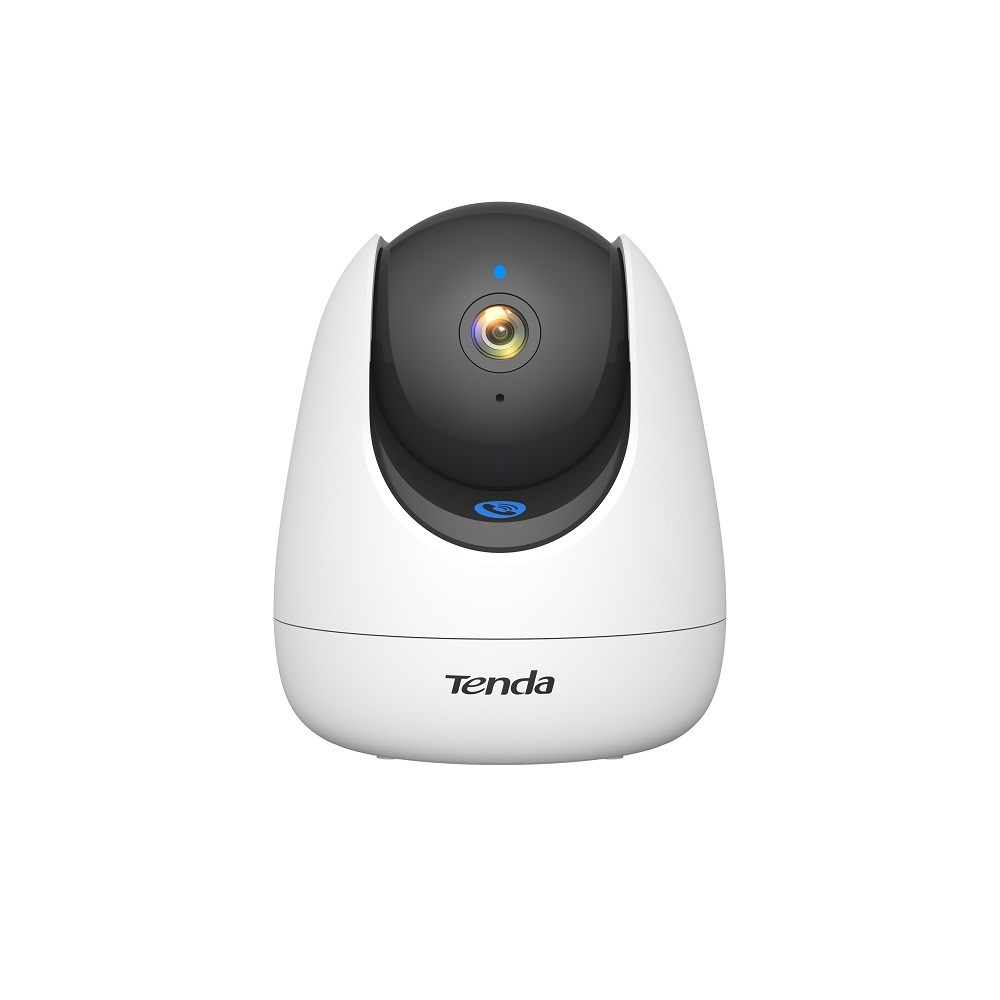

Tenda CP3 Pro 3MP Security Pan/Tilt Kamera

CP3 Pro

Security Pan/Tilt Camera 3MP

• Support Wi-Fi 6
• Built-in microphone and speaker for two-way audio, support one-touch call
• Support motion, human, pet and cry detection, human tracking, sound and light alert
• 360° all-round high quality imaging with 3MP resolution

• Camera

  Image Sensor : 1/3 Progressive Scan CMOS sensor

  Day and Night : ICR type

• Lens

  Focal Length : 4mm

  Aperture : F2.0

  FOV : Horizontal : 78°, Vertical : 41.8°, Diagonal : 95°

• Illuminator

  Supplementary Light : 2 IR Lights

  Supplementary Light Distance : Up to 10 m/32 ft (depending on environment)

  IR Wavelength : 850nm

  Night Vision Mode : Black & White Mode

• Video

  Video Encoding Format : H.265, H.264

  Main Stream Resolution : 2304 × 1296, 1920 × 1080, 1280 × 720

  Sub Stream Resolution : 640 x 360 , 352 x 288 , 320x240

  Frame Rate : 1-30fps, Default 20fps

  Bit Rate : 512kbps -- 4096kbps

  Bit Rate Control : CBR,VBR

• Audio

  Audio Encoding Format : G.711A, G.711U, AAC

  Audio Sampling Rate : 8 kHz

  Audio Communication : Two-way Audio, One-touch Call

• Image

  Image Enhancement : DWDR, BLC, HLC, 3D DNR

  Privacy Mask : 4 Areas

• Network

  ONVIF : Support

  Protocols : TCP/IP, UDP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP

• Pan&Tilt

  Pan Movement Range : 0°--355°

  Tilt Movement Range : -65°--90°

  Preset : 6

  Patrol : Panoramic Patrol, Preset Patrol

• Wi-Fi

  Antenna : Internal antenna

  Wireless Standard : IEEE 802.11 b/g/n/ax

  Transmission Rate : Up to 287Mbps

  Channel Width : :20/40 MHz

  Modulation : DSSS/OFDM/OFDMA

  Frequency Band : 2.4GHz: 2412MHz-2472MHz(CH1-CH13)

  Transmit Power : 2.4GHz: <0.1W(EIRP)

  Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

• Alarm

  Smart Detection : Motion Detection, Tempering Detection, Human Detection, Cry Detection, Pet Detection

  Smart Linkage : Sound&light Alert, Human Tracking

  DIY Audio : 3 Customized Audios

• Interface

  Audio Input :Built-in MIC, adjustable microphone volume

  Audio Output : Built-in Speaker, 68 dBA (Alarm sound at 1 meter), adjustable sound level

  Storage : Built-in Micro SD Card Slot, Up to 256 GB

  Reset Button : Support

  LED Indicator :

  Dual Color (red & blue)
  LED Indicator

• General

  Power : 9V DC, 1A, Ø5.5mm&Ø2.1mm Power Plug

  Material : Plastic

  Smart Integration : Amazon Alexa

  Product Dimension : 103mm x 88mm x 88mm (4.1'' × 3.5'' × 3.5'')

  Package Dimension : 100mm x 100mm x 163mm (4.0'' × 4.0'' × 6.5'')

  Product Weight : 200g (0.44lb)

  With Package Weight : 420g (0.93lb)

  Installation Method : Desktop, Ceiling Mounting



• Certification : CE, RoHS, FCC, RCM, UKCA

  Temperature :

  Operating Temperature: -10°C ~ 45°C (14°F ~ 113°F)
  Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)

  Humidity :

  Operating Humidity: 10% ~ 95% RH (non-condensing)
  Storage Humidity: 3% ~ 95% RH (non-condensing)

  Package Contents :

  Camera
  Power Adapter (cord length: 3m)
  Installation Template
  Mounting Bracket
  Mounting Accessories Kit
  Quick Installation Guide

EAN Numarası: 6932849438819
