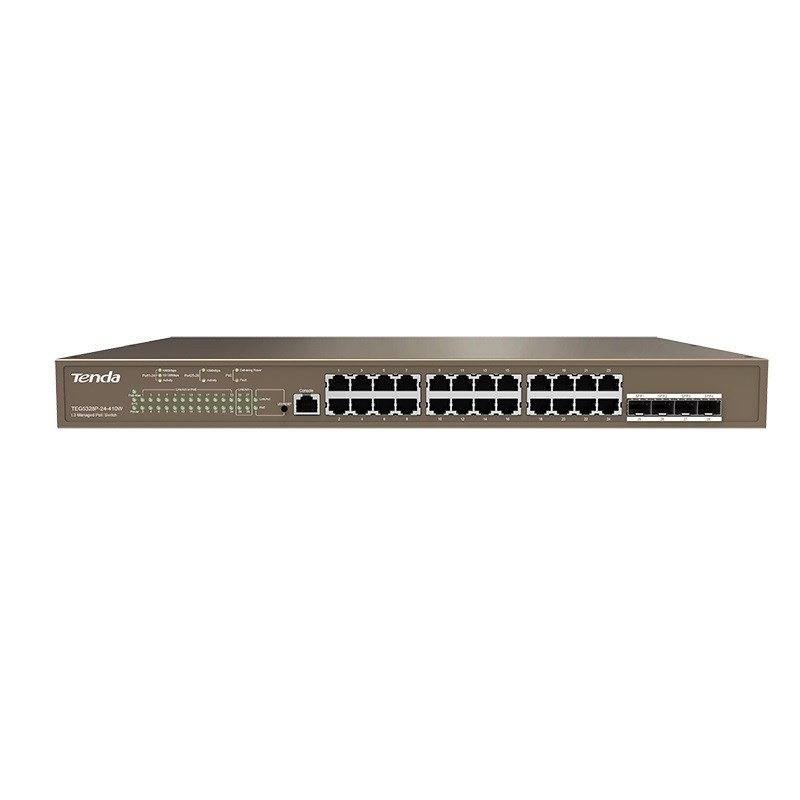

Tenda TEG5328P-24-410W 24 Port Yönetilebilir PoE Switch

Network standards

IEEE802.3、 IEEE802.3u、 IEEE802.3ab、 IEEE802.3z、 IEEE802.3x、 IEEE802.3af/at、IEEE802.1p、IEEE802.1q、 IEEE802.1w、 IEEE802.1d、 IEEE802.1s

LED Indicator

1*Link/Act or PoE LED indicator
1*Link/1*Link/Act mode converting LED indicator
1*PoE mode converting LED indicator
1*PoE Max LED indicator
1*Power LED indicator
1*SYS LED indicator

Interfaces

24*10/100/1000 Base-T Ethernet ports
4*1000 Base-X SFP ports
1*Console port

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity

2

Level of protection

Lightning protection for ports: 6kV
Lightning protection for power: 6kV
ESD:
Air discharge: ±10kV
Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

56Gbps

Packet forwarding rate

41.70Mpps

Buffer

12Mb

MAC address table

16K

Jombo frame

10K

PoE power supply management

Support

PoE budget

Single port: AF: 15.4W, AT: 30W
Whole device: 370W

Input voltage

100-240V AC 50/60Hz

Power consumption

Full load: ＜432W
Empty load: ＜23W

Dimension

440.0mmx284.0mmx44.0mm

Mounting

Desktop mounting: support
Wall mounting: support
Rack mounting:non-support

Energy Efficient

Support

Environment

Operating temperature: 0°C - 45℃
Storage temperature: -40°C - 70°C
Operating humidity: (10% - 90%) RH, non-condensing
Storage humidity: (5% - 90%) RH, non-condensing

Certification

FCC、CE、RoHS

L3 Features

Supports VLAN-based routing
Supports IPv4 static routing
Supports static ARP

PoE power supply management

Supports port PoE configuration and power supply with priority
Supports PoE over-temperature protection
Supports PoE scheduled management
Supports intelligent management and PoE-powered device detection
(port status, power assignment and PoE-powered device status)

Security features

ARP receiving limit
Unknown MAC address discard
DoS attack defense
802.1x security authentication
Radius security authentication

VLAN

IEEE 802.1Q VLAN
VLAN Layer-3 interfaces
Supports three port modes: Access, Trunk and Hybrid

DHCP Server

DHCP Relay
DHCP Snooping
Supports Option 82 policy configuration

Port aggregation

Static aggregation
LACP dynamic aggregation

Spanning tree

IEEE 802.1d STP (Spanning Tree Protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)
Supports edge port
Supports BPDU statistics

Multicast

IGMP Snooping V1/V2/V3
Supports port fast leave

Port Mirroring

Supports N: 1 port mirroring

Quality of Service

SP (Strict Priority)
SWRR (Simple Weighted Round Robin)
WRR (Weighted Round Robin)
Supports 802.1p port trust mode
Supports DSCP port trust mode
Supports a maximum of 8-queue service quality mapping

ACL

Supports MAC ACL and IP ACL

Loading and upgrade

Supports FTP/TFTP/HTTP upgrade
Supports configuration import and export

Management and maintenance

Supports Telnet, Console
Supports SNMP V1/V2/V3
Supports WEB management and maintenance
Supports Ping/Tracert/Connection Detection
CPU Monitoring and memory monitoring

EAN Numarası: TEG5328P-24-410W
