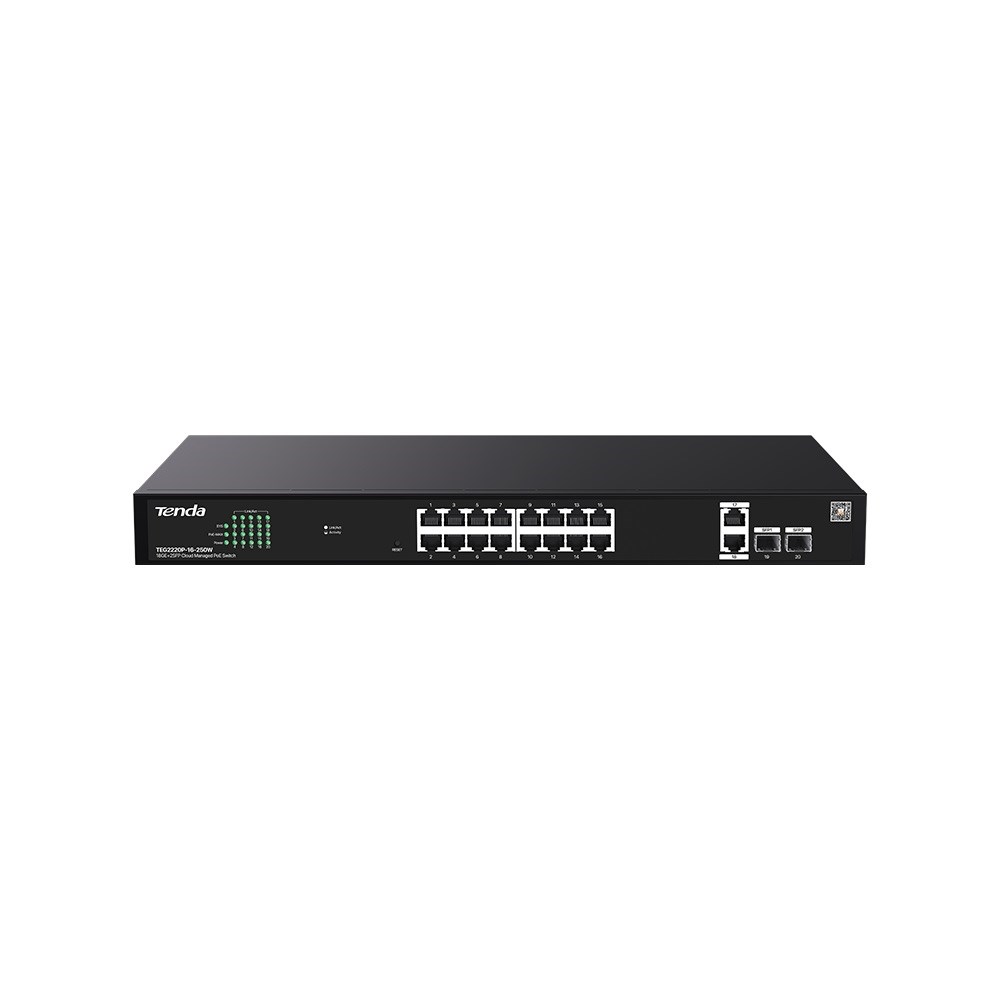

Tenda TEG2220P-16-250W 16 Port 18GE+2SFP Cloud Managed PoE Switch

TEG2220P-16-250W

18GE+2SFP Cloud Managed PoE Switch

• Support QVLAN, DHCP Snooping, loop protection,etc
• Single port output power 30W, maximum output power 230W
• Support Web platform remote management, mobile APP management
• 18GE+2SFP Cloud Managed Switch With 16-Port PoE

TEG2220P-16-250W is a 20-port PoE switch supporting Tenda CloudFi web and app management.Compatible with 802.3af/at standards, this switch provides up to 30W per port and up to 250W as a whole.It also supports detection of loops and limit unknown access,and 24/7 watchdog, making it an ideal choice for adding PD devices 18GE+2SFP Cloud Managed PoE Switchsuch as APs,cameras,and IP phones to your network and reducing time and costs on maintenance.

• Hardware

  Dimensions : 440mm*178mm*44mm

  Mounting :

  Rack mounting : support
  Desktop mounting: support
  Wall mounting: support

  Enclosure material : Metal

  Interfaces :

  (18) 1GE RJ45 ports
  (2) 1GE SFP ports

  PoE interface : (16) PoE (Pins 1, 2+,3, 6-)

  LED Indicator

  Power
  Link/Act
  PoE MAX

  Switching capacity : 40Gbps

  Forwarding rate : 29.8Mpps

  Power method : 100-240V AC，50 / 60Hz

  Power consumption : 250W

  Total available PoE : 30W

  Max. PoE wattage per port by PSE : 230W

  Lightning protection :

  Port: 6 KV
  Power：6 KV

  Button : Factory reset

  Operating temperature : 0°C - 45℃

  Storage temperature : -40°C - 70°C

  Operating humidity : 10% - 90%,non-condensing

  Storage humidity : 5% - 90%,non-condensing

  Certifications : FCC, CE, RoHS

• Software

  VLAN :

  Support VLAN transparent transmission
  Support IEEE802.1Q VLAN

  Port :

  Support port flow control
  Support port isolation
  Support port mirroring and aggregation
  Support port traffic statistics

  Speed limit : Support port entrance and exit speed limit

  Anti-ring : Support switch port loop protection

  QoS :

  Support strict priority
  Supports weighted priority

  MAC :

  Support MAC address table viewing
  MAC whitelist binding

  Storm control : Support port storm control

  Loading and Upgrading :

  Support HTTP upgrade
  Support configuration import and export

  IGMP :

  Supports lGMP fast leave
  Supports lGMP Report Suppression

  DHCP :

  Support DHCP Client
  Support DHCP Snooping

  PoE :

  Support PoE power displaySupport PoE on and off
  Support PoE timing

  watchdog : 7*24 hours automatic operation and maintenance

  Management and Maintenance :

  Support CloudFi App management
  Support CloudFi Cloud web Ul management
  Support local web Ul management
  Support ping test
