Tenda 24 Port TEG1024D 10/100/1000 Gigabit Rack Mountable Yönetilemez Switch

Tenda  24 Port TEG1024D 10/100/1000 Gigabit Rack Mountable Yönetilemez Switch

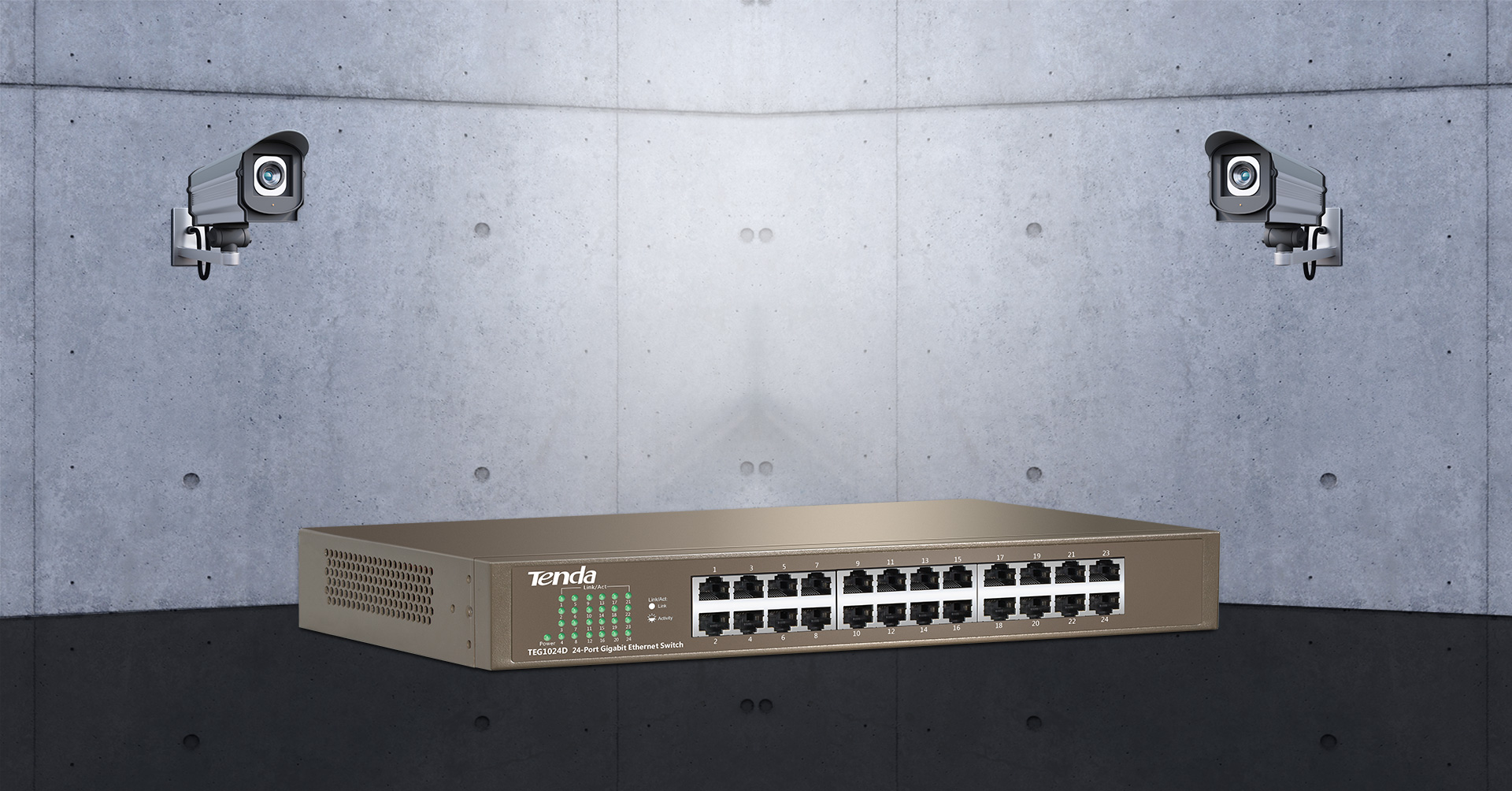

Dedicated for security surveillance and SMEs

24-Port Gigabit Ethernet Switch TEG1024D

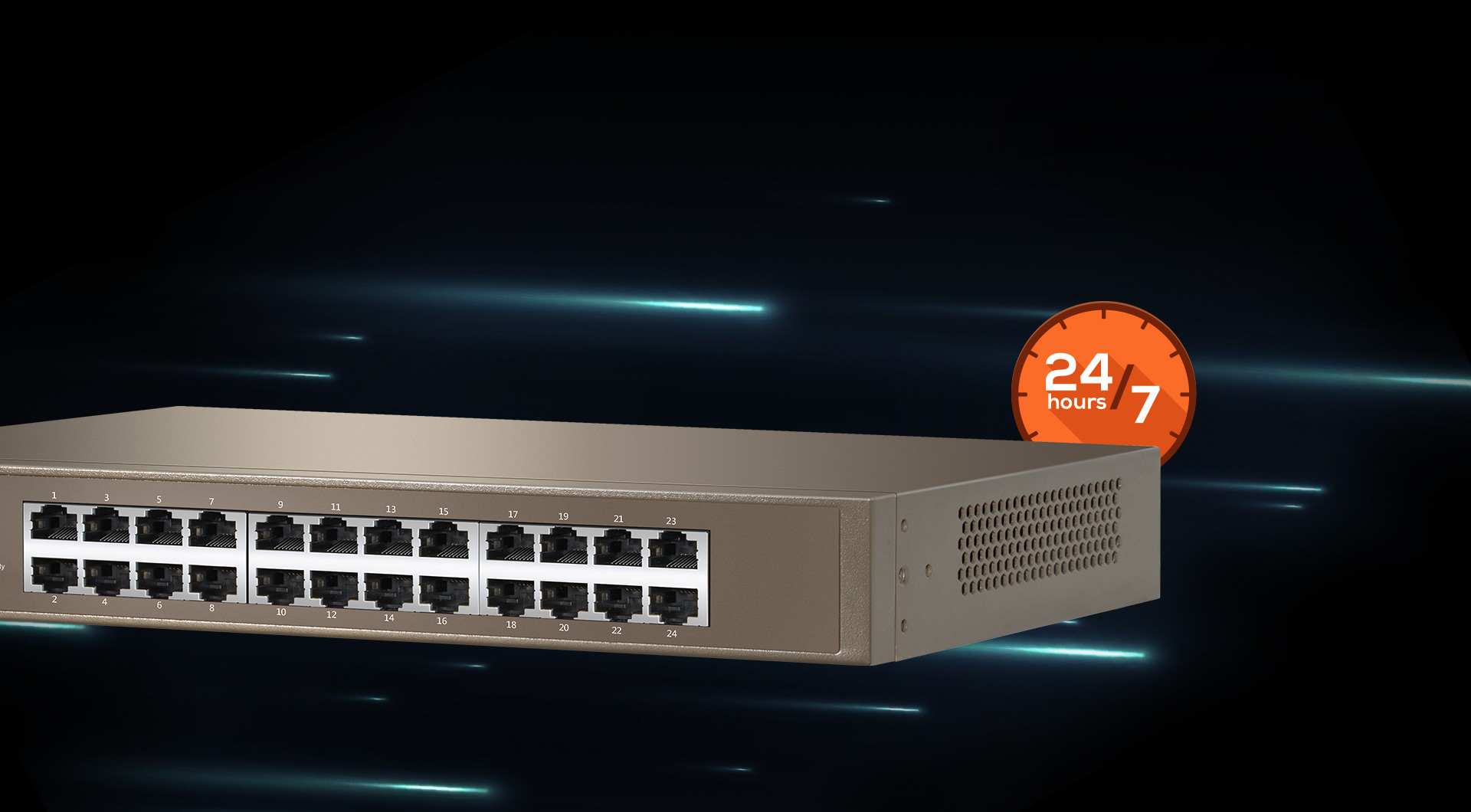

Stable connection for 7*24

24*10/100/1000 Mbps auto-negotiation RJ45 ports, up to 2000 Mbps of full duplex transmission rate, line-speed forwarding by all ports, and large cache capacity ensure the timely transfer of large files and stable streaming video. Stay connected for 7*24.

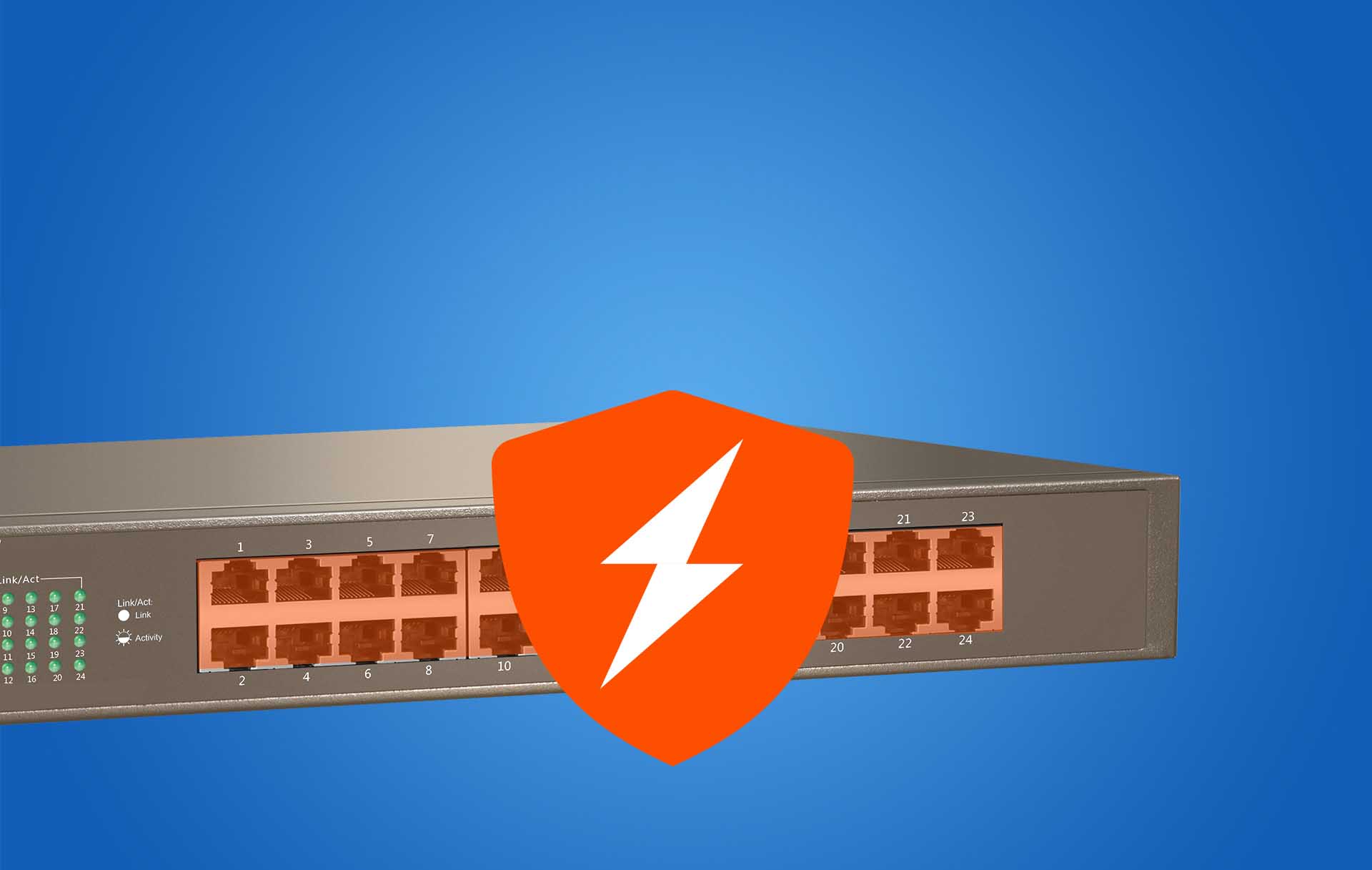

Excellent lightning protection of ports

Professional integrated lightning protection circuit enables all the 16 ports to provide IV-class (6 kV in common mode) lightning protection, effectively decreasing the damage rate to the ports by lightning surge.

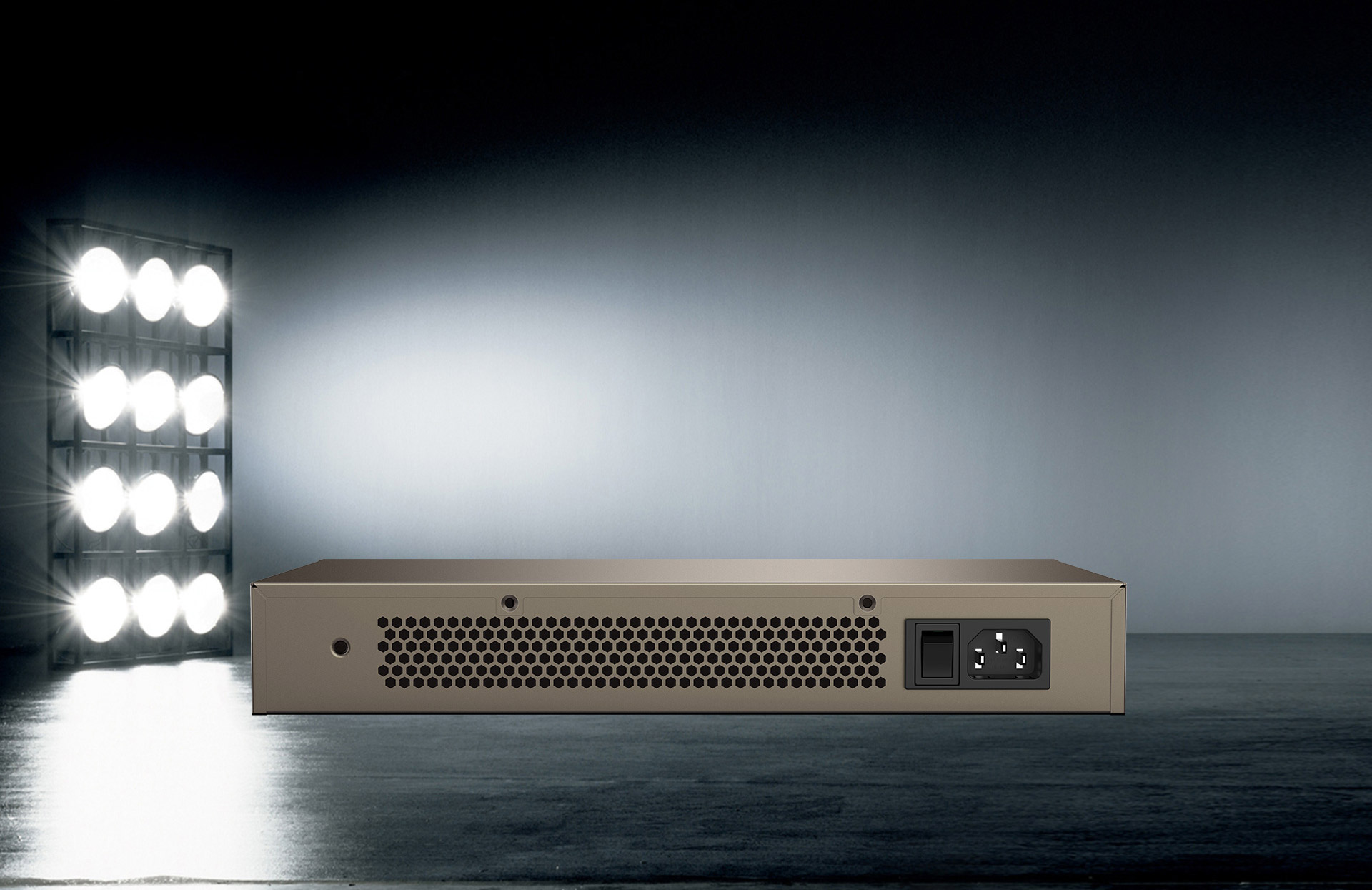

Professional lightning protection for power supply

The built-in power supply module is designed with enhanced lightning protection, which can withstand 6 kV lightning surge, 3 times higher than other ordinary switches, effectively protecting the switch from being damaged by adverse thunderstorm.

Innovative design

Full steel housing and plating through holes in three faces allow higher-efficient heat dissipation; fanless design ensures the noiselessness and dust free, harmoniously fitting into the offices; 13-inch size makes it mountable both on desktop and rack and plug and play function makes it easy for use.

Higher-efficient heat dissipation

Fanless design

19-inch rack mount

Standard&Protocol

IEEE 802.3?IEEE 802.3u?IEEE 802.3x?IEEE 802.3ab

Cabling type

Category 5e or better

Port

24*10/100/1000M Base-T Ethernet ports (Auto MDI/MDIX)

LED

1*Power,24*Link/Act

Dimension

294mm×178mm×44mm , 1U height

Mounting options

Desktop or rack mount

Forwarding Mode

Store and Forward

MAC Address Table

8K

Switching Capacity

48Gbps / non-blocking

Forwarding capacity

35.7 mpps

Lightning Protection

6KV for power supply ,6KV for all RJ45 ports

Power Supply

100~240V AC,50/60Hz

Temperature

Operating|Storage temperature:-10°C~45°C | -40°C~70°C

Humidity

Operating|Storage Humidity:10%~90% RH(noncondensing) | 5%~90% RH(noncondensing)
