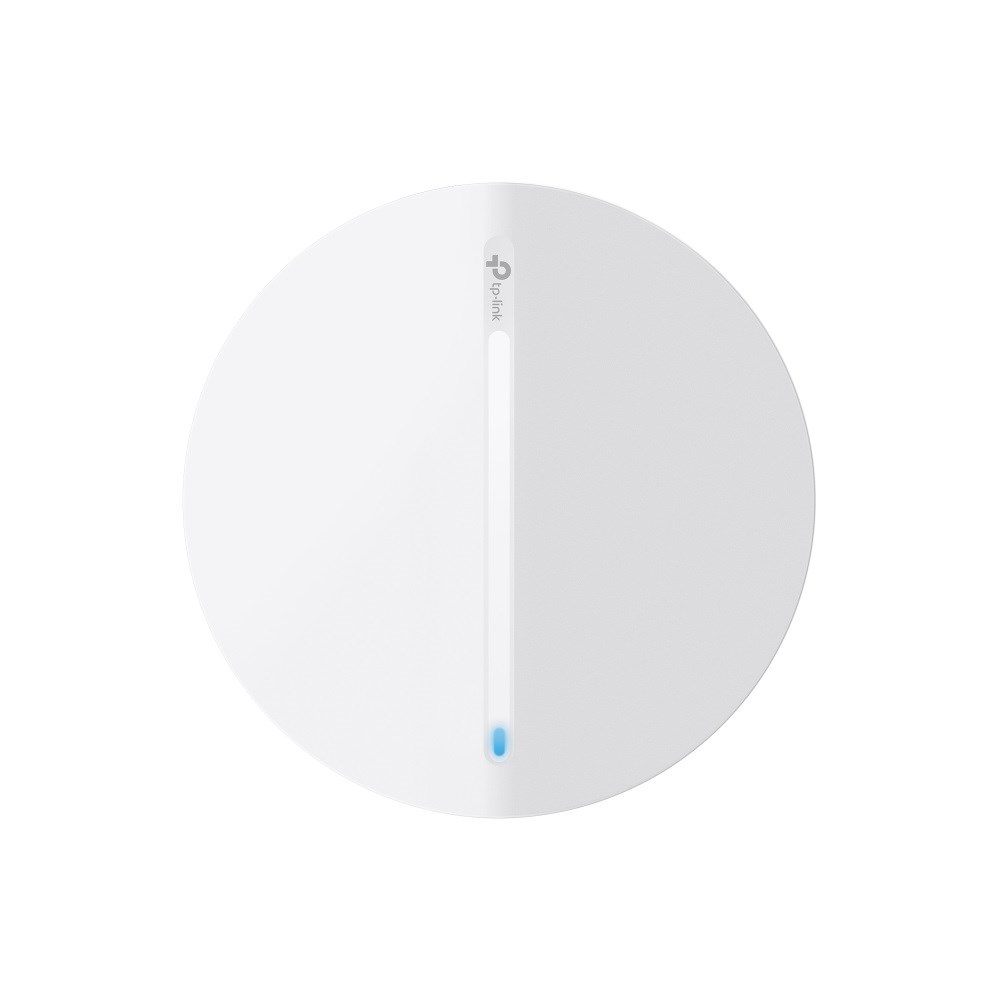

TP-Link Festa F61 AX1800 Ceiling Mount WiFi 6 Access Point

1x Gigabit Ethernet Port

Reset

802.3af PoE
48V Passive PoE
12V/1A DC (Power Adapter Included)

EU: 10.6W (For PoE); 9.6W (for DC)
US: 10.9W (For PoE); 9.8W (for DC)

398.5g

6.3 × 6.3 × 1.5 in (160 × 160 × 38.5 mm)

2.4 GHz: 2x 4 dBi
5 GHz: 2× 5 dBi

Ceiling /Wall Mounting (Kits included)
Junction Box Mounting

115㎡(1250 ft²)

250+

IEEE 802.11 a/b/g/n/ac/ax

2.4 GHz and 5 GHz

5 GHz: 1201 Mbps
2.4 GHz: 574 Mbps

Mesh
Seamless Roaming
Beamforming
Automatic Channel Selection
MU-MIMO: 2*2 MU-MIMO DL
MIMO: 2*2 (2.4G and 5G) MU-MIMO
OFDMA^‡
Band Steering
Load Balance
Airtime Fairness
RADIUS Accounting
Wireless Schedule
Static IP/Dynamic IP
Rate Limit: Based on SSID/Client
Multiple SSIDs: 16(8 on each band)
Enable/Disable Wireless Radio
Enable/Disable SSID Broadcast
Guest Network
Transmit Power Control: Adjust Transmit Power on dBm
QoS (WMM)

Captive Portal Authentication
Access Control
Maximum Number of MAC Filter: 4,000
Wireless Isolation Between Clients
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
802.1X Support
VLAN

CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, Band1 & Band2, EIRP)
<30 dBm(5 GHz, Band3, EIRP)

FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)
