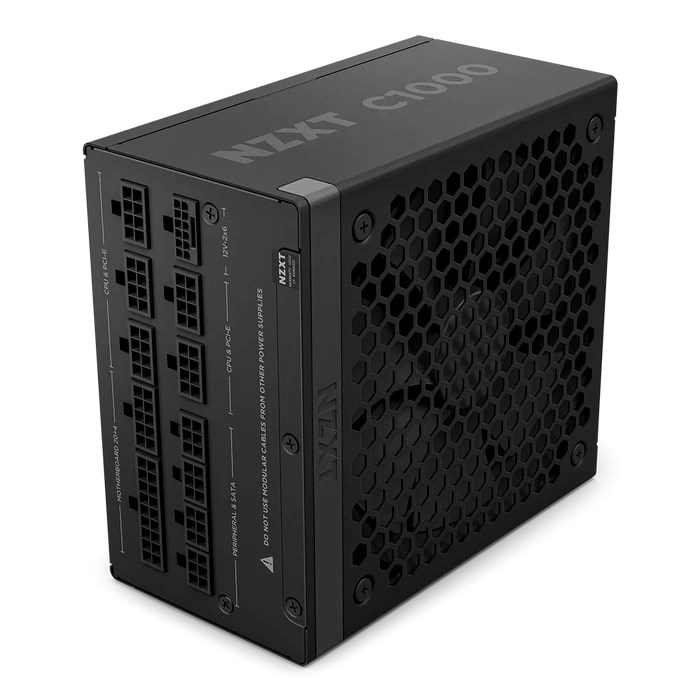

NZXT PA-0G2BB-EU C1000 1000W 80+ Gold Tam Modüler ATX 3.1 Güç Kaynağı

Output Connectors

24-pin ATX Power Cable : 1

4+4-pin CPU Power Cable : 1

8-pin CPU Power Cable : 1

6+2-pin PCIe Power Cable : 3

16-pin (12+4) 12V-2x6 PCIe Cable :1

SATA Cable : 12

Peripherals Cable : 4

Cable Specs

24-pin ATX Power Cable : 600mm with nylon sleeving

4+4-pin CPU Power Cable : 700mm with nylon sleeving

8-pin CPU Power Cable : 700mm with nylon sleeving

6+2-pin PCIe Power Cable : 650mm with nylon sleeving

16-pin (12+4) 12V-2x6 PCIe Cable : 650mm with nylon sleeving

SATA Cable : 500 + 150mm

Peripherals Cable : 500 + 150mm

Dimensions

Width : 150 mm

Height : 86 mm

Depth : 160 mm

General

Material(s) : Steel, PCB and Plastic

Compliance Standard : ATX12V v3.1 / EPS12V v2.92

Regulation & Certification : FCC, Canada, CE, CB(IEC 62368-1), UKCA, CCC, BSMI, BIS, RCM, UAE, TUV, cTUVus, KC, CP65

AC Input Rating

100 - 240Vac : 13A 50Hz-60Hz

200 - 240Vac : 6.5A 50Hz-60Hz (China & South Korea)

DC Output Rating

3.3V / +5V : 22A (120W)

12V : 83.3A (1000W)

5Vsb : 3A (15W)

Total : 1000W

Energy Efficiency

Rating : 80 Plus Gold

10% loading : 85.5% @115Vac

20% loading : 89.7% @115Vac

50% loading : 91.9% @115Vac

100% loading : 89.3% @115Vac

Electrical Features

PF Correction : Active @0.99

Protections : OVP / UVP / SCP / OTP / OPP / OCP

Fan Specs

Dimensions : 135 x 135 x 25 mm

Speed : 2300 ± 10% RPM

Airflow : 93.02 CFM (Min.)

Noise : 44.5 dBA max

Bearing : Fluid Dynamic Bearing (FDB)

Operation

MTBF : 100,000 hours

Temperature : 0 - 50 °C

EAN Numarası: 5056547204710
