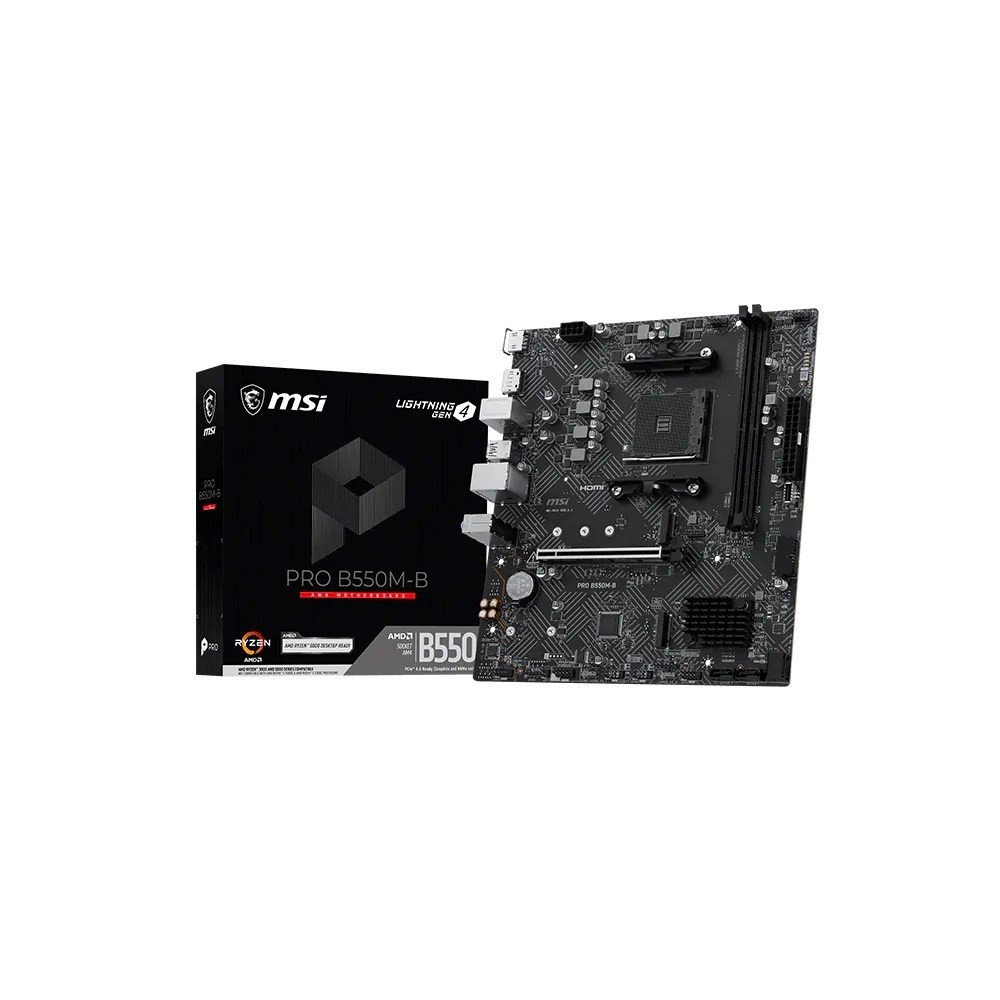

MSI PRO B550M-B DDR4 AMD B550 Soket AM4 mATX Anakart

AMD B550

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors
Socket AM4

2x DDR4, Maximum Memory Capacity 64GB
Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
Max. overclocking frequency:
• 1DPC 1R Max speed up to 4600+ MHz
• 1DPC 2R Max speed up to 3866+ MHz

Supports JEDEC Speed
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Memory Overclocking by A-XMP OC mode

• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

1x HDMI™
Support HDMI^TM 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Supports DP 1.2, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

1x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
*The supported specification depends on installed processor.

Realtek^® ALC897 Codec
7.1-Channel High Definition Audio

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 22110/2280 devices
4x SATA 6G
*The supported specification depends on installed processor.

Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)

Realtek^® RTL8111H 1Gbps LAN

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports

4x EZ Debug LED

1. HDMI™

2. DisplayPort

3. Keyboard / Mouse

4. USB 5Gbps Type-A

5. LAN Port

6. Audio connectors

7. USB 2.0

8. USB 5Gbps Type-A

Support for Windows^® 11 64-bit, Windows^® 10 64-bit

mATX
220mmx243.84mm
