Teknik Bilgiler:
Soket Tipi | AMD AM5 |
Chipset | AMD B650 |
Bellek Tipi | DDR5 |
Bellek Kapasitesi | 96 GB |
Form Faktörü | MITX |
Ram Slot Sayısı | 2 Adet |
Dahili Grafik | Var |
HDMI Çıkışı | Var |
CHIPSET | AMD B650 |
---|---|
CPU | Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors Socket AM5 |
MEMORY | 2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 7200+ MHz 1DPC 2R Max speed up to 6400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ |
ONBOARD GRAPHICS | 1x HDMI™ Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
SLOT | 1x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
STORAGE | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G |
RAID | Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
USB | 2x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
LAN | Realtek® RTL8125BG 2.5Gbps LAN |
WIRELESS LAN & BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
AUDIO | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel |
INTERNAL IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
LED FEATURE | 4x EZ Debug LED |

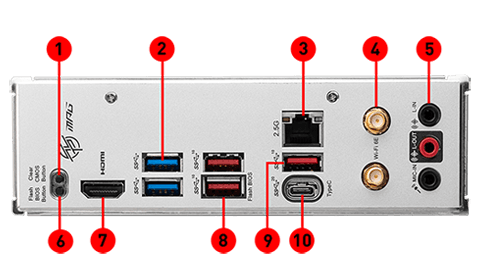

BACK PANEL PORTS | ![]() 1. Clear CMOS Button 2. USB 3.2 Gen 1 5Gbps (Type-A) 3. 2.5G LAN 4. Wireless / Bluetooth 5. Audio Connectors 6. Flash BIOS Button 7. HDMI™ 8. USB 3.2 Gen 2 10Gbps (Type-A) 9. USB 3.2 Gen 2 10Gbps (Type-A) 10. USB 3.2 Gen 2x2 20Gbps (Type-C) |
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
PCB INFO | Mini-ITX 170mmx170mm |
Soket Tipi | AMD AM5 |
Chipset | AMD B650 |
Bellek Tipi | DDR5 |
Bellek Kapasitesi | 96 GB |
Form Faktörü | MITX |
Ram Slot Sayısı | 2 Adet |
Dahili Grafik | Var |
HDMI Çıkışı | Var |
