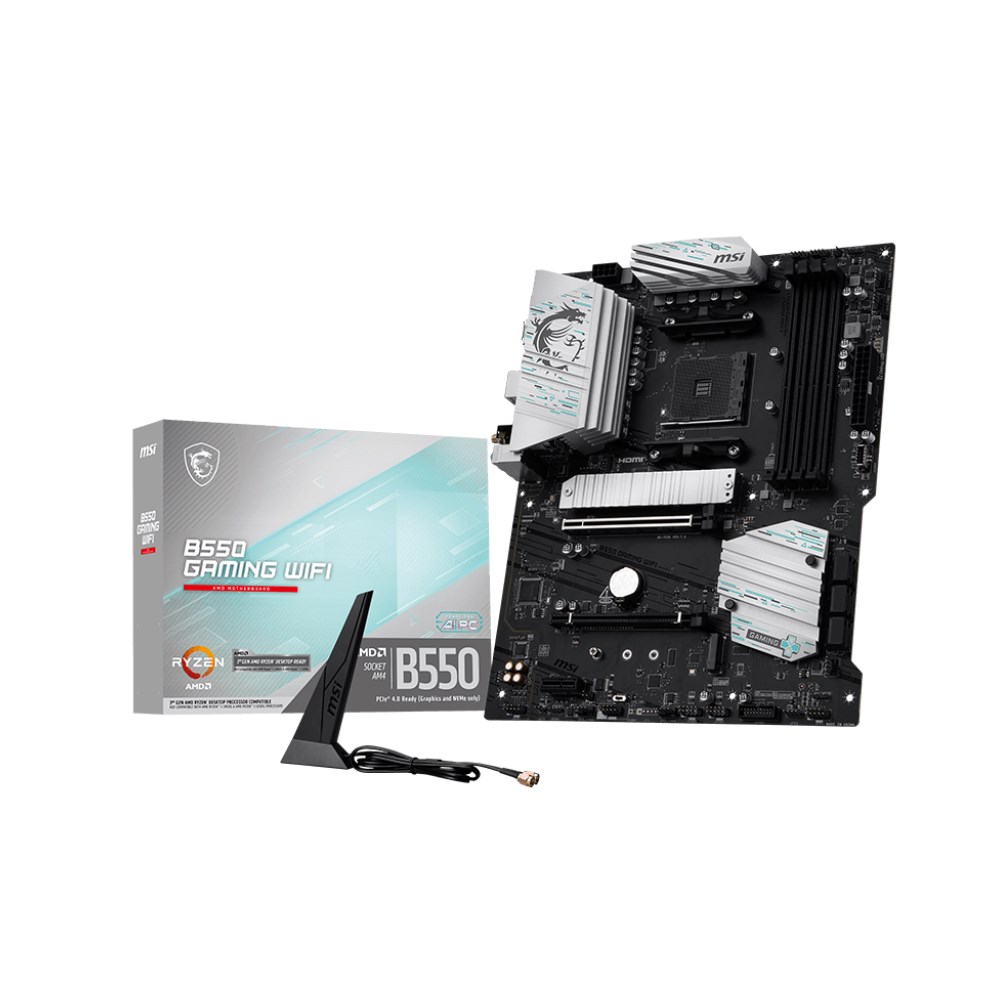

MSI B550 GAMING WIFI DDR4 AMD B550 Soket AM4 ATX Anakart

AMD B550

Supports 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for Sock
Socket AM4

4x DDR4, Maximum Memory Capacity 128GB
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866+ MHz by A-XMP OC MODE
• 1DPC 1R Max speed 4800 MHz
• 1DPC 2R max speed 3866 MHZ
• 2DPC 1R max speed 4000 MHZ
• 2DPC 2R max speed 3600 MHZ

• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.2, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

Realtek^® ALC897
7.1-Channel High Definition Audio

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280 devices
6x SATA 6G

AMD MULTI-GPU Support

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)

Realtek^® 8111H 1G LAN

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable RGB LED connector(JRAINBOW)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
1x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports

Wi-Fi 5 Solution
Supports Bluetooth^® 5.0

4x EZ Debug LED

1. USB 2.0

2. DisplayPort 1.2

3. 1G LAN

4. USB 10Gbps (Type-A)

5. Wi-Fi / Bluetooth

6. Audio Connectors

7. Flash BIOS Button

8. HDMI™

9. USB 2.0

10. USB 5Gbps (Type-A)

11. USB 10Gbps (Type-C)

Support for Windows^® 11 64-bit

ATX
243.84mmx304.8mm
