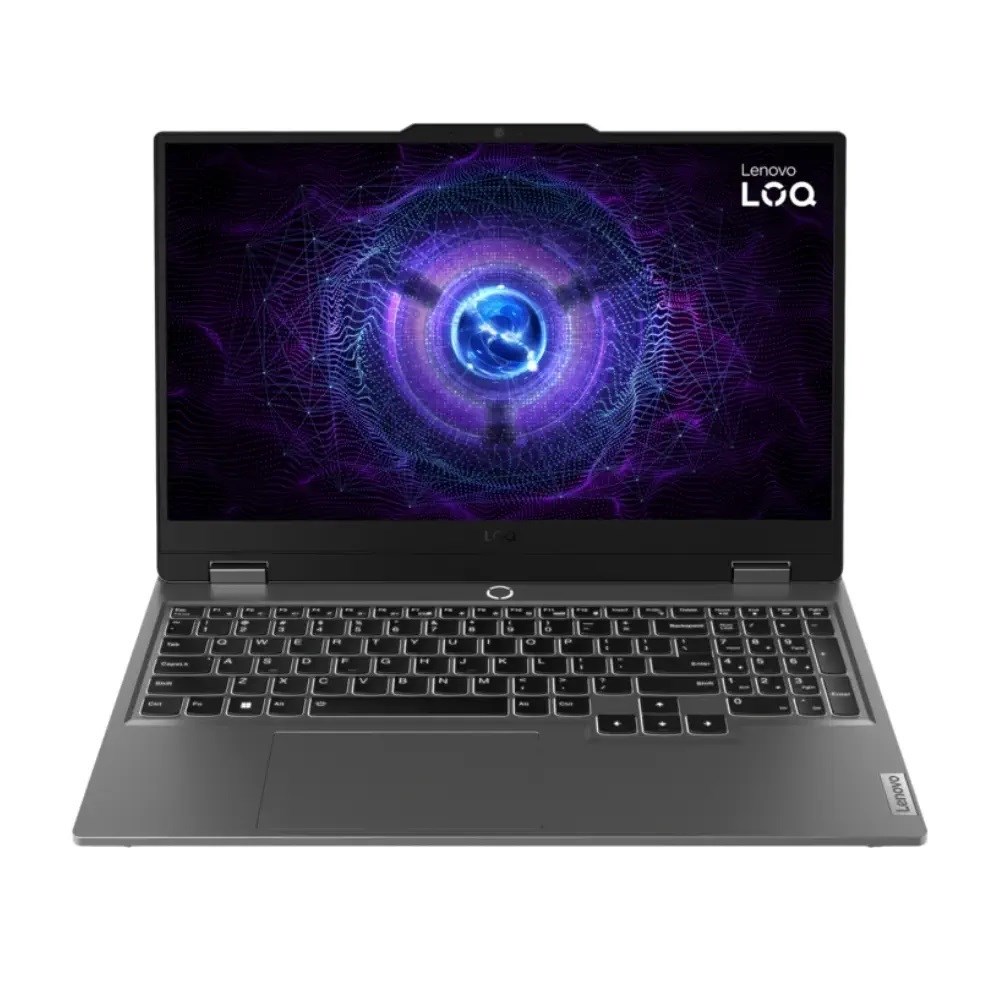

Lenovo 83GS00PHTR LOQ 15IAX9 i5-12450HX 12GB 1TB SSD 8GB RTX4060 FreeDOS 15.6" Notebook

PERFORMANCE:

Processor

Intel® Core™ i5-12450HX, 8C (4P + 4E) / 12T, P-core up to 4.4GHz, E-core up to 3.1GHz, 12MB

AI PC Category

AI-Powered Gaming PC

Graphics

NVIDIA® GeForce RTX™ 4060 8GB GDDR6, Boost Clock 2370MHz, TGP 105W

Chipset

Intel® HM670 Chipset

Memory

1x 12GB SO-DIMM DDR5-4800

Memory Slots

Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory

Up to 32GB DDR5-4800

Storage

1TB SSD M.2 2242 PCIe® 4.0x4 NVMe®

Storage Support

Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB each

Storage Slot

Two M.2 2280 PCIe® 4.0 x4 slots

Card Reader

None

Optical

None

Audio Chip

High Definition (HD) Audio, Realtek® ALC3287 codec

Speakers

Stereo speakers, 2W x2, optimized with Nahimic Audio

Camera

HD 720p with E-shutter

Microphone

2x, Array

Battery

Integrated 60Wh

Power Adapter

170W Slim Tip (3-pin)

Special Features

AI Chip: LA1

DESIGN:

Display

15.6" FHD (1920x1080) IPS 300nits Anti-glare, 100% sRGB, 144Hz, G-SYNC®

Touchscreen

None

Color Calibration

None

Keyboard

White Backlit, Turkish

Touchpad

Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)

Case Color

Luna Grey

Surface Treatment

Painting

Case Material

PC-ABS (Top), PC-ABS (Bottom)

Pen

Pen Not Supported

Dimensions (WxDxH)

359.86 x 258.7 x 21.9-23.9 mm (14.17 x 10.19 x 0.86-0.94 inches)

Weight

Starting at 2.38 kg (5.25 lbs)

SOFTWARE:

Operating System

None

Bundled Software

None

CONNECTIVITY:

Ethernet

Integrated 100/1000M

WLAN + Bluetooth

Wi-Fi® 6, 802.11ax 2x2 + BT5.2

WWAN

Non-WWAN

Standard Ports

3x USB-A (USB 5Gbps / USB 3.2 Gen 1)

1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with Lenovo® PD 140W and DisplayPort™ 1.4

1x HDMI® 2.1, up to 8K/60Hz

1x Headphone / microphone combo jack (3.5mm)

1x Ethernet (RJ-45)

1x Power connector

SECURITY & PRIVACY:

Security Chip

Firmware TPM 2.0 Enabled

Fingerprint Reader

None

Other Security

E-shutter

CERTIFICATIONS:

Green Certifications

ErP Lot 3

RoHS compliant

Other Certifications

TÜV Rheinland® Low Blue Light (Software Solution)

Mil-Spec Test

MIL-STD-810H military test passed

MODEL INFORMATION:

Model

83GS00PHTR
