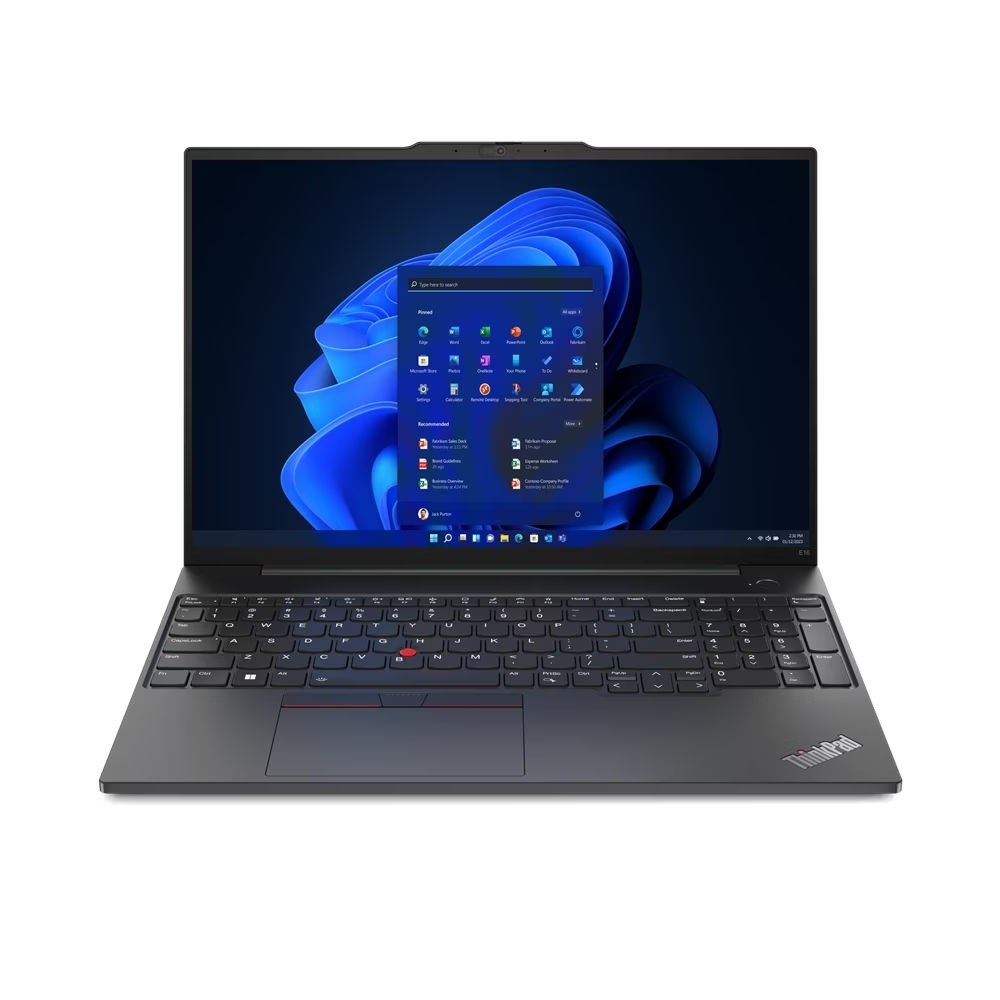

LENOVO ThinkPad E16 21JT0017TX AMD Ryzen 7 7730U 16GB 512GB SSD O/B VGA 16" FreeDOS Notebook

PERFORMANCE:

Processor

AMD Ryzen™ 7 7730U (8C / 16T, 2.0 / 4.5GHz, 4MB L2 / 16MB L3)

Graphics

Integrated AMD Radeon™ Graphics

Chipset

AMD SoC Platform

Memory

8GB Soldered DDR4-3200 + 8GB SO-DIMM DDR4-3200

Memory Slots

One memory soldered to systemboard, one DDR4 SO-DIMM slot, dual-channel capable

Max Memory

Up to 40GB (8GB soldered + 32GB SO-DIMM) DDR4-3200

Storage

512GB SSD M.2 2242 PCIe® 4.0x4 NVMe® Opal 2.0

Storage Support

Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 512GB • M.2 2280 SSD up to 1TB

Storage Slot

Two M.2 slots • One M.2 2242 PCIe® 3.0 x4 slot • One M.2 2280 PCIe 3.0 x4 slot

Card Reader

No card reader

Optical

None

Audio Chip

High Definition (HD) Audio, Synaptic® CX11880 codec

Speakers

Stereo speakers, 2W x2, Dolby® Atmos®

Camera

FHD 1080p + IR Hybrid with Privacy Shutter

Microphone

2x, Array

Battery

Integrated 57Wh

Power Adapter

65W USB-C® (3-pin)

DESIGN:

Display

16" WUXGA (1920x1200) IPS 300nits Anti-glare, 45% NTSC

Touchscreen

None

Keyboard

Backlit, Turkish

Case Color

Graphite Black

Case Material

Aluminium (Top), Aluminium (Bottom)

Dimensions (WxDxH)

Starting at 356.1 x 247.7 x 19.85 mm (14.02 x 9.75 x 0.78 inches)

Weight

Starting at 1.81 kg (3.99 lbs)

SOFTWARE:

Operating System

None

Bundled Software

None

CONNECTIVITY:

Ethernet

100/1000M (RJ-45)

WLAN + Bluetooth

Wi-Fi® 6, 11ax 2x2 + BT5.1

WWAN

None

SIM Card

None

NFC

None

Standard Ports

1x USB 3.2 Gen 1

1x USB 3.2 Gen 1 (Always On)

1x USB-C® 3.2 Gen 1 (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4)

1x USB-C® 3.2 Gen 2 (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4)

1x HDMI® 1.4b

1x Ethernet (RJ-45)

1x Headphone / microphone combo jack (3.5mm)

Docking

Various docking solutions supported via USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad® E16 Gen 1 (AMD)

Monitor Cable

None

SECURITY & PRIVACY:

Smart Card Reader

None

Security Chip

Discrete TPM 2.0 Enabled

Fingerprint Reader

Touch Style, Integrated in Power Button

Physical Locks

Kensington® Nano Security Slot™, 2.5 x 6 mm

Other Security

Camera privacy shutter

IR camera for Windows® Hello

MANAGEABILITY:

System Management

Non-DASH

ACCESSORIES:

Bundled Accessories

None

CERTIFICATIONS:

Green Certifications

ErP Lot 6

ErP Lot 26

RoHS compliant

TCO Certified 9.0

Other Certifications

TÜV Rheinland® Low Blue Light (Software Solution)

Mil-Spec Test

MIL-STD-810H military test passed
