| PERFORMANCE |
| Processor |
Intel Core™ 7 240H, 10C (6P + 4E) / 16T, P-core 2.5 / 5.2GHz, E-core 1.8 / 4.0GHz, 24MB Intel® Smart Cache
|
| Graphics |
Integrated Intel® Graphics
|
| Chipset |
Intel® SoC Platform
|
| Memory |
1x 32GB SODIMM DDR5-5600
|
| Memory Slots |
Two DDR5 SODIMM slots, dual-channel capable
|
| Max Memory |
Up to 64GB DDR5-5600
|
| Storage |
1TB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
|
| Max Storage Support |
Up to two drives, 2x M.2 SSD • M.2 SSD up to 1TB each
|
| RAID Preset |
None
|
| Card Reader |
No card reader
|
| Optical |
None
|
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC256 codec
|
| Speakers |
2Wx1
|
| Camera |
No camera
|
| Microphone |
No microphone
|
| Power Supply |
135W 90% Adapter
|
| DESIGN |
| Keyboard |
USB, Calliope, Black, Turkish 179
|
| Mouse |
USB Calliope Mouse, Black
|
| Optional Bay |
None
|
| Expansion Slots |
Three M.2 slots (one for WLAN, two for SSD)
|
| Case Color |
Black
|
| Stand |
None
|
| Adapter Cage |
None
|
| Toolless Chassis Screw |
Toolless Chassis Screw
|
| Mounting |
VESA Mount
|
| IO Box |
No IO box
|
| Pen |
Pen Not Supported
|
| Form Factor |
Tiny (1L)
|
| Dimensions (WxDxH) |
- Tiny only (without rubber feet) | 179 x 182.9 x 34.5 mm (7.05 x 7.2 x 1.36 inches)
- Tiny only (with rubber feet) | 179 x 182.9 x 36.5 mm (7.05 x 7.2 x 1.44 inches)
|
| Weight |
Around 1.13 kg (2.49 lbs)
|
| CONNECTIVITY |
| WLAN + Bluetooth |
Realtek® Wi-Fi® 7 RTL8922AE, 802.11be 2x2 160MHz + BT5.4
|
| WWAN |
WWAN Not Supported
|
| Ethernet |
Integrated 100/1000M
|

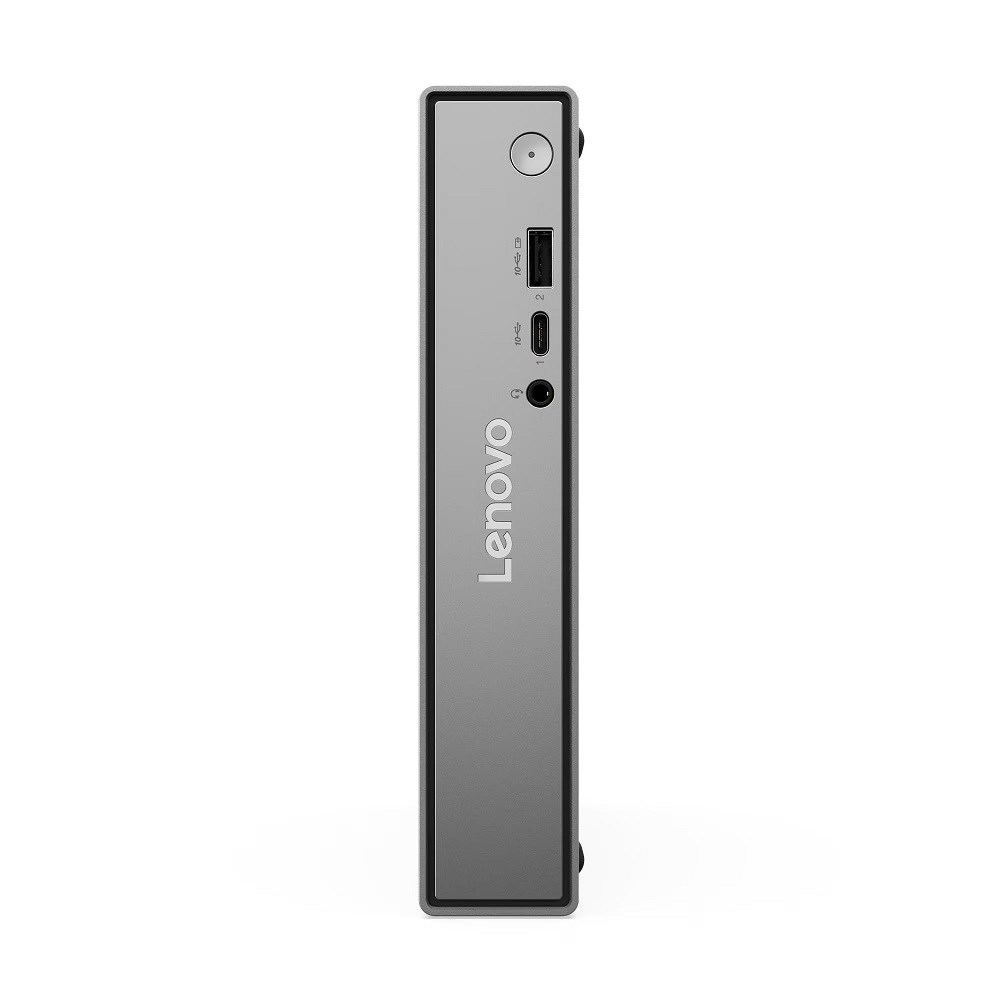

| Front Ports |
- 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with data transfer and 5V@3A charging
- 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and [email protected] charging
- 1x headphone / microphone combo jack (3.5mm)
|
| Rear Ports |
- 2x USB-A (Hi-Speed USB / USB 2.0), one supports Smart Power On
- 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
- 1x HDMI® 2.1 TMDS
- 1x DisplayPort™ 1.4b
- 1x Ethernet (GbE RJ-45)
- 1x Power connector
|
| Optional Rear Ports (configured) |
None
|
| Monitor Cable |
None
|
| SECURITY & PRIVACY |
| Security Chip |
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
|
| Fingerprint Reader |
No fingerprint reader
|
| Physical Locks |
Kensington Security Slot™, 3 x 7 mm
|
| Chassis Intrusion Switch |
Chassis Intrusion Switch
|
| MANAGEABILITY |
| System Management |
Non-vPro®
|
| SERVICE |
| Base Warranty |
1-year, Courier or Carry-in
|
| Included Upgrade |
3Y Onsite upgrade from 1Y Courier/Carry-in (CPN)
|
| CERTIFICATIONS |
| Green Certifications |
- RoHS compliant
- TCO Certified, generation 10
|
| Mil-Spec Test |
MIL-STD-810H:2022 military test passed (Solar Radiation 505.7, Salt Fog 509.8, Contamination by fluids 504.3)
|
| SOFTWARE |
| Operating System |
None
|
| Bundled Software |
None
|
| ACCESSORIES |
| Bundled Accessories |
None
|
| MODEL INFORMATION |
| Model |
13B9001PTR
|
| Machine Type |
13B9
|
| Region |
EET
|
| Country/Region |
Türkiye
|
| TopSeller |
Yes
|
| EAN / UPC / JAN |
0198158726856
|
