KSM32ED8/16HD 16GB 2Rx8 2G x 72-Bit PC4-3200 CL22 288-Pin DIMM
DESCRIPTION

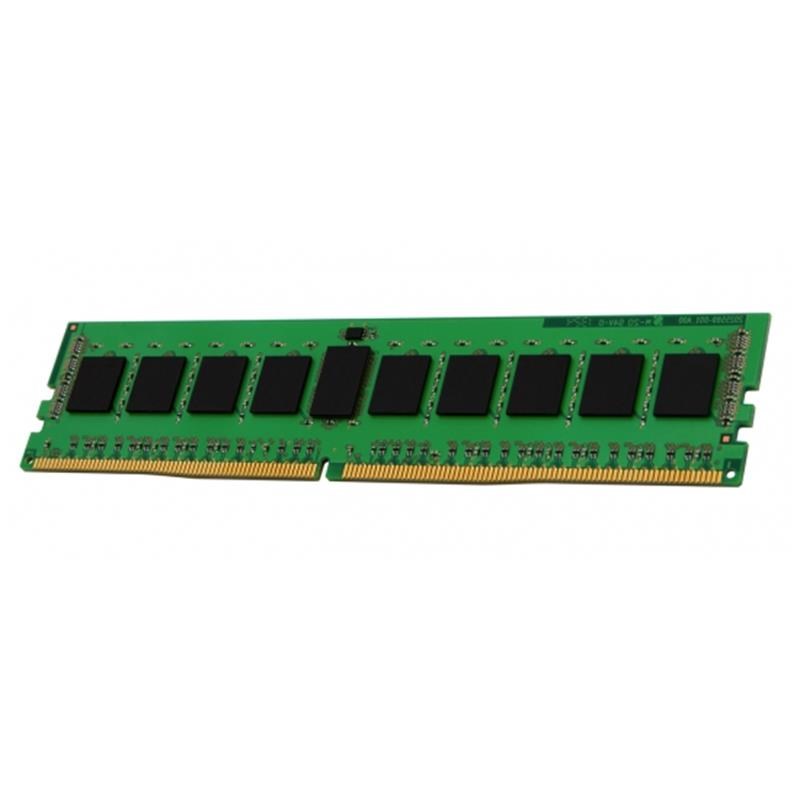

Kingston's KSM32ED8/16HD is a 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on eighteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
Capacity : 16GB 3200Mhz
CL(IDD) : 22 cycles
Row Cycle Time (tRCmin : 45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin) : 350ns(min.)
Row Active Time (tRASmin) : 32ns(min.)
UL Rating : 94 V - 0
Kapasite | 16 GB |
Tip | ECC |
Frekans | 3200 MHz |
Kit | Single |
Gecikme Süresi | CL 22 |
