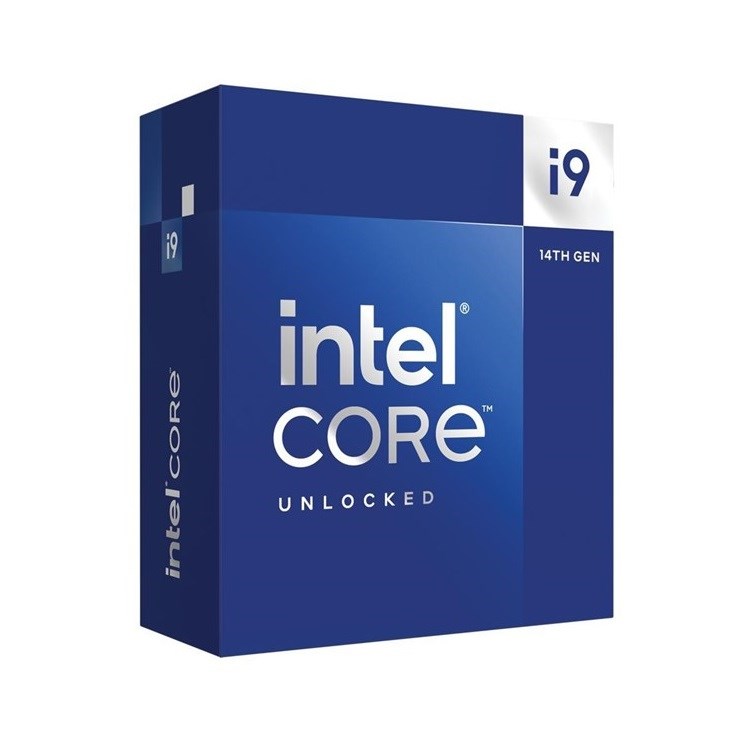

| Intel® Core™ i9 processor 14900K (36M Cache- up to 6.00 GHz) |
| |
| Essentials |
| Product Collection,Intel® Core™ i9 Processors (14th gen) |
| Code Name,Products formerly RAPTOR LAKE |
| Vertical Segment,Desktop |
| Processor Number,i9-14900K |
| Lithography,Intel 7 |
| Use Conditions,PC/Client/Tablet | Workstation |
| |
| CPU Specifications |
| Total Cores,24 |
| # of Performance-cores,8 |
| # of Efficient-cores,16 |
| Total Threads,32 |
| Max Turbo Frequency,6 GHz |
| Intel® Thermal Velocity Boost Frequency,6 GHz |
| Intel® Turbo Boost Max Technology 3.0 Frequency ‡,5.8 GHz |
| Performance-core Max Turbo Frequency,5.6 GHz |
| Efficient-core Max Turbo Frequency,4.4 GHz |
| Performance-core Base Frequency,3.2 GHz |
| Efficient-core Base Frequency,2.4 GHz |
| Cache,36 MB Intel® Smart Cache |
| Total L2 Cache,32 MB |
| Processor Base Power,125 W |
| Maximum Turbo Power,253 W |
| |
| Supplemental Information |
| Marketing Status,Launched |
| Launch Date,Q4'23 |
| Embedded Options Available,No |
| |
| Memory Specifications |
| Max Memory Size (dependent on memory type),192 GB |
| Memory Types,Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels,2 |
| Max Memory Bandwidth,89.6 GB/s |
| ECC Memory Supported ‡,Yes |
| |
| GPU Specifications |
| Processor Graphics ‡,Intel® UHD Graphics 770 |
| Graphics Base Frequency,300 MHz |
| Graphics Max Dynamic Frequency,1.65 GHz |
| Graphics Output,eDP 1.4b | DP 1.4a | HDMI 2.1 |
| Execution Units,32 |
| Max Resolution (HDMI)‡,4096 x 2160 @ 60Hz |
| Max Resolution (DP)‡,7680 x 4320 @ 60Hz |
| Max Resolution (eDP - Integrated Flat Panel)‡,5120 x 3200 @ 120Hz |
| DirectX* Support,12 |
| OpenGL* Support,4.5 |
| OpenCL* Support,3.0 |
| Multi-Format Codec Engines,2 |
| Intel® Quick Sync Video,Yes |
| Intel® Clear Video HD Technology,Yes |
| # of Displays Supported ‡,4 |
| Device ID,0xA780 |
| |
| Expansion Options |
| Direct Media Interface (DMI) Revision,4.0 |
| Max # of DMI Lanes,8 |
| Scalability,1S Only |
| PCI Express Revision,5.0 and 4.0 |
| PCI Express Configurations ‡,Up to 1x16+4 | 2x8+4 |
| Max # of PCI Express Lanes,20 |
| |
| Package Specifications |
| Sockets Supported,FCLGA1700 |
| Max CPU Configuration,1 |
| Thermal Solution Specification,PCG 2020A |
| TJUNCTION,100°C |
| Package Size,45.0 mm x 37.5 mm |
| |
| Advanced Technologies |
| Intel® Gaussian & Neural Accelerator,3.0 |
| Intel® Thread Director,Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU,Yes |
| Intel® Speed Shift Technology,Yes |
| Intel® Adaptive Boost Technology,Yes |
| Intel® Thermal Velocity Boost,Yes |
| Intel® Turbo Boost Max Technology 3.0 ‡,Yes |
| Intel® Turbo Boost Technology ‡,2.0 |
| Intel® Hyper-Threading Technology ‡,Yes |
| Intel® 64 ‡,Yes |
| Instruction Set,64-bit |
| Instruction Set Extensions,Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2 |
| Idle States,Yes |
| Enhanced Intel SpeedStep® Technology,Yes |
| Thermal Monitoring Technologies,Yes |
| Intel® Volume Management Device (VMD),Yes |
| |
| Security & Reliability |
| Intel® Standard Manageability (ISM) ‡,Yes |
| Intel® Control-Flow Enforcement Technology,Yes |
| Intel® AES New Instructions,Yes |
| Secure Key,Yes |
| Intel® OS Guard,Yes |
| Execute Disable Bit ‡,Yes |
| Intel® Boot Guard,Yes |
| Mode-based Execute Control (MBEC),Yes |
| Intel® Virtualization Technology (VT-x) ‡,Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡,Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡,Yes |
