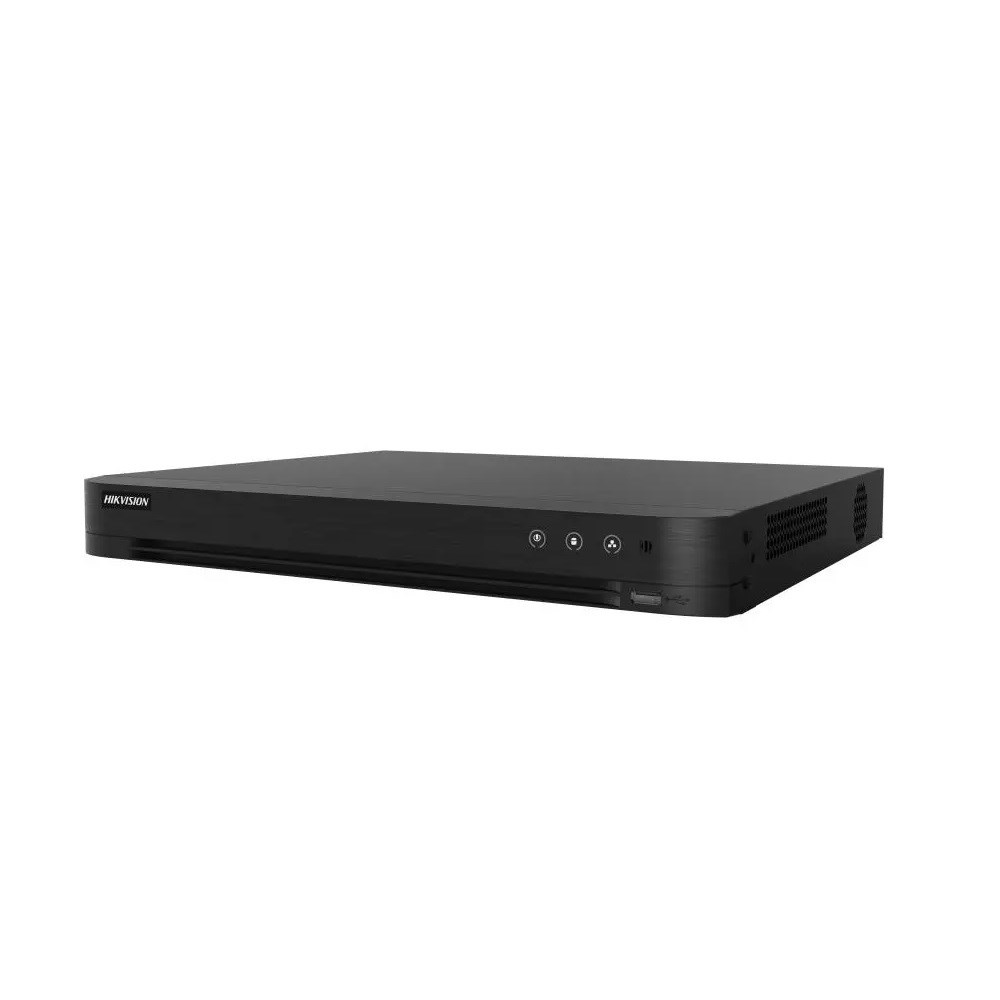

Hikvision iDS-7232HQHI-M2/S 32 Kanal DVR Kayıt Cihazı

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported

Human/Vehicle Analysis

Up to 4-ch

Facial Detection And Capture:

Face picture detection, face picture search

Video Compression:

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution:

When 1080p Lite mode is not enabled:

4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;

When 1080p Lite mode is enabled:

4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Video Bitrate:

32 Kbps to 10 Mbps

Dual-Stream:

Support

Stream Type:

Video, Video & Audio

Audio Compression:

G.711u

Audio Bitrate:

64 Kbps

Analog Video Input:

32-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

AHD Input:

4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps

HDCVI Input:

4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps

CVBS Input:

PAL/NTSC

CVBS Output:

1-ch, BNC (1.0 Vp-p, 75 Ω),

HDMI Output:

1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output:

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz HDMI/VGA simultaneous output

Audio Input:

1-ch, RCA (2.0 Vp-p, 1 KΩ)，32-ch via coaxial cable

Audio Output:

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio:

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous Playback:

16-ch

SATA:

2 SATA interfaces

Capacity:

Up to 10 TB capacity for each disk
