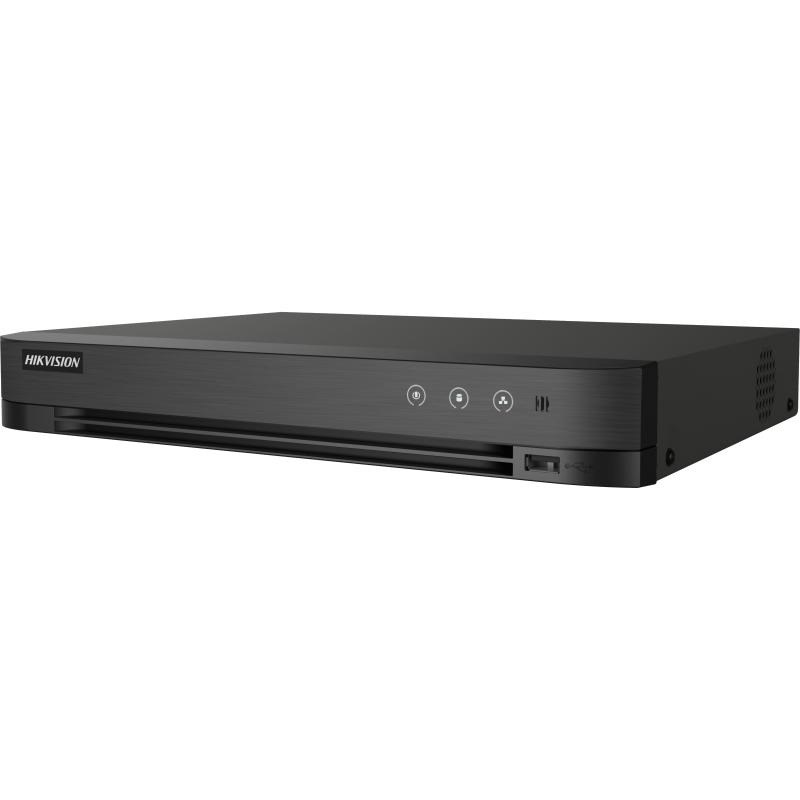

Hikvision iDS-7208HQHI-M1/XT 8 Kanal AcuSense DVR Kayıt Cihazı

IP Video Input:
4-ch (up to 12-ch), Up to 6 MP resolution

Analog Video Input:
8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input:
3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

AHD Input:
5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

HDCVI Input:
3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

CVBS Input:
PAL/NTSC

HDMI Output:
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
HDMI/VGA simultaneous output

VGA Output:
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
HDMI/VGA simultaneous output

CVBS Output:
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480

Video Compression:
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Serial Interface:
RS-485 (half-duplex)

SATA:
1 SATA interface, up to 10 TB capacity for each disk

Power Supply:
12 VDC, 1.5 A

Consumption:
≤ 18 W (without HDD)

Dimension (W × D × H):
319 × 236 × 48 mm (12.6 × 9.3 × 1.9 inch)

Weight:
≤ 1.78 kg (3.9 lb) (without HDD)
