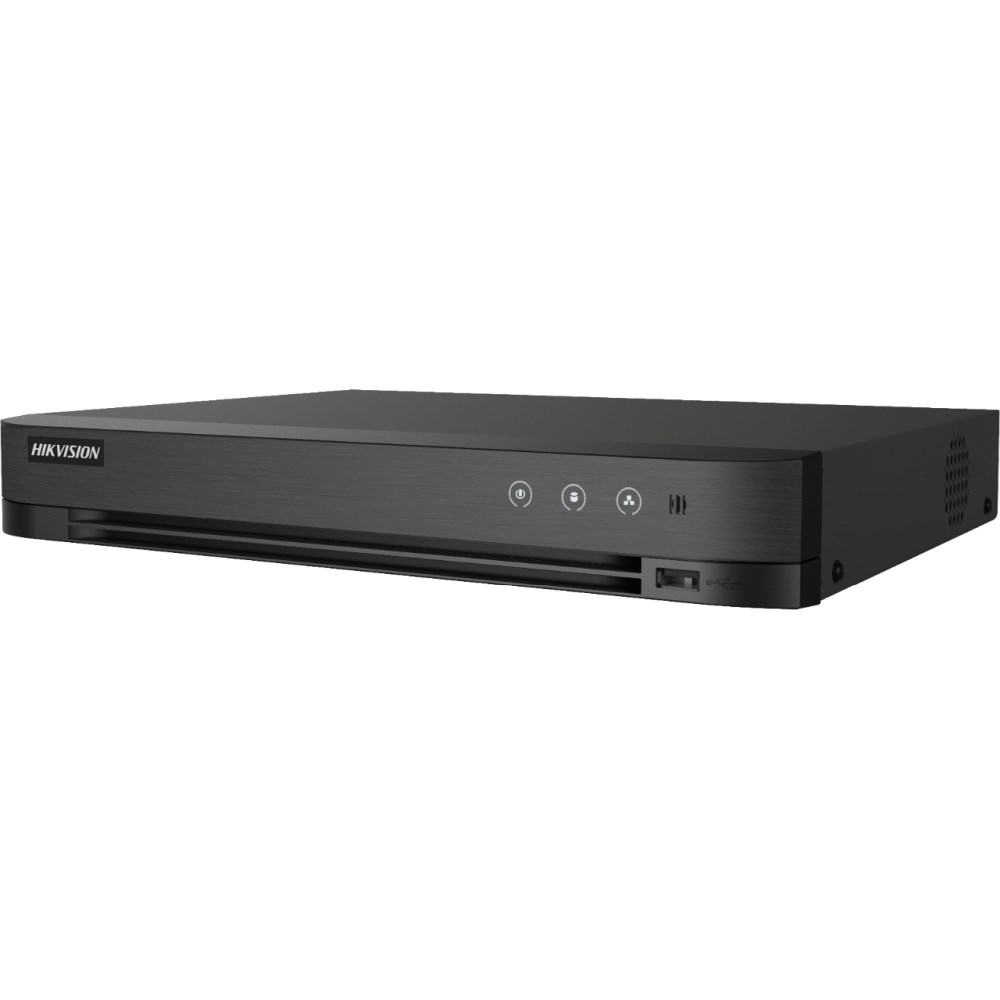

Hikvision iDS-7204HQHI-M1/S 4 Kanal DVR Kayıt Cihazı

Video Compression:
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution:
Main stream:
When 1080p lite mode not enabled:
For 4 MP stream access:
4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps
For 1080p stream access:
1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

Video Bitrate:
32 Kbps to 6 Mbps

Dual-Stream:
Support

Stream Type:
Video, Video & Audio

Audio Compression:
G.711u

Audio Bitrate:
64 Kbps

IP Video Input:
1-ch (up to 5-ch）
Up to 6 MP resolution
Enhanced IP mode on:
2-ch (up to 6-ch), each up to 4 Mbps
Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input:
4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDMI Output:
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
1024 × 768/60Hz, HDMI/VGA simultaneous output

Network Protocol:
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Remote Connection:
32

Network Interface:
1, RJ45 10M/100M self-adaptive Ethernet interface

SATA:
1 SATA interface

Capacity:
Up to 10 TB capacity for each disk

Serial Interface:
RS-485 (half-duplex)

USB Interface:
2 × USB 2.0

Alarm In/Out:
N/A
