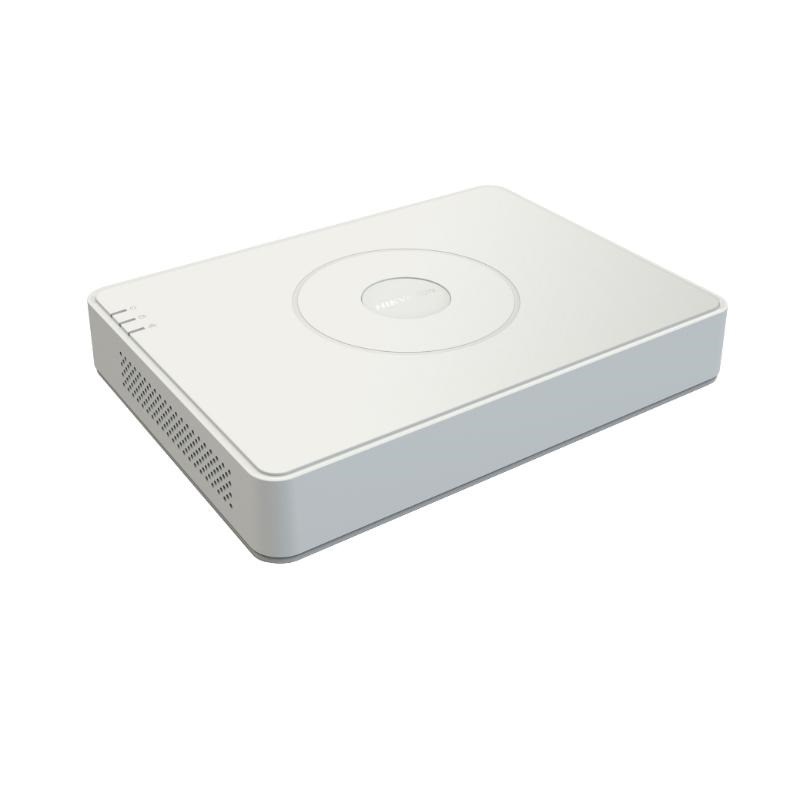

Hikvision iDS-7116HQHI-M1/S 16 Kanal DVR Kayıt Cihazı

Line Crossing Detection/Intrusion Detection:
4-ch

Facial Detection and Capture:
Face picture detection, face picture search

IP Video Input:
2-ch (up to 18-ch)
Enhanced IP mode on:
8-ch (up to 24-ch), each up to 4 Mbps
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input:
16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

Incoming Bandwidth:
96 Mbps

HDTVI Input:
3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

AHD Input:
5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input:
5MP(2880 × 1620)@25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

CVBS Input:
PAL/NTSC

HDMI Output:
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output:
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Audio Input:
1-ch, RCA (2.0 Vp-p, 1 KΩ)
16-ch via coaxial cable

Audio Output:
1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio:
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous playback:
16-ch

Video Compression:
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

SATA:
1 SATA interface

Capacity:
Up to 10 TB capacity for each disk

USB Interface:
Real panel: 2 × USB 2.0
