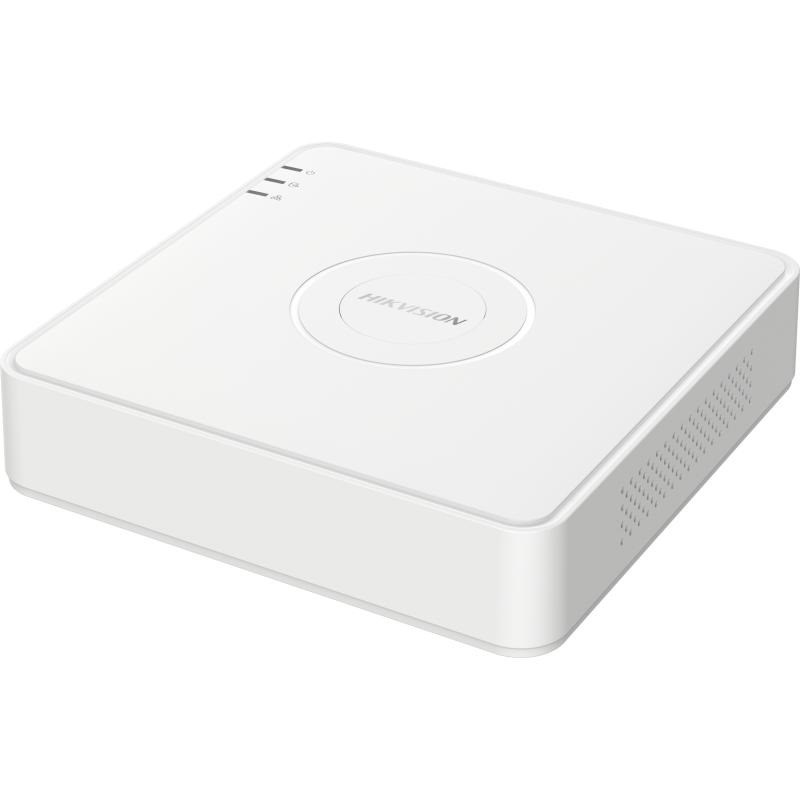

Hikvision iDS-7104HQHI-M1/S 4 Kanal AcuSense DVR Kayıt Cihazı

Human/Vehicle Analysis:
Up to 2-ch

Facial Detection and Capture:
Face picture detection, face picture search

Analog Video Input:
4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input:
3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

AHD Input:
5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input:
5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

CVBS Input:
Support

HDMI Output:
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output:
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode:
HDMI/VGA simultaneous output

Audio Input:
1-ch, RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable

Audio Output:
1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio:
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous Playback:
4-ch

Video Compression:
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

SATA:
1 SATA interface

Capacity:
Up to 10 TB capacity for each disk

Power Supply:
12 VDC, 1.5 A

Dimension (W × D × H):
200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)

Weight:
≤ 1 kg (without HDD, 2.2 lb.)
