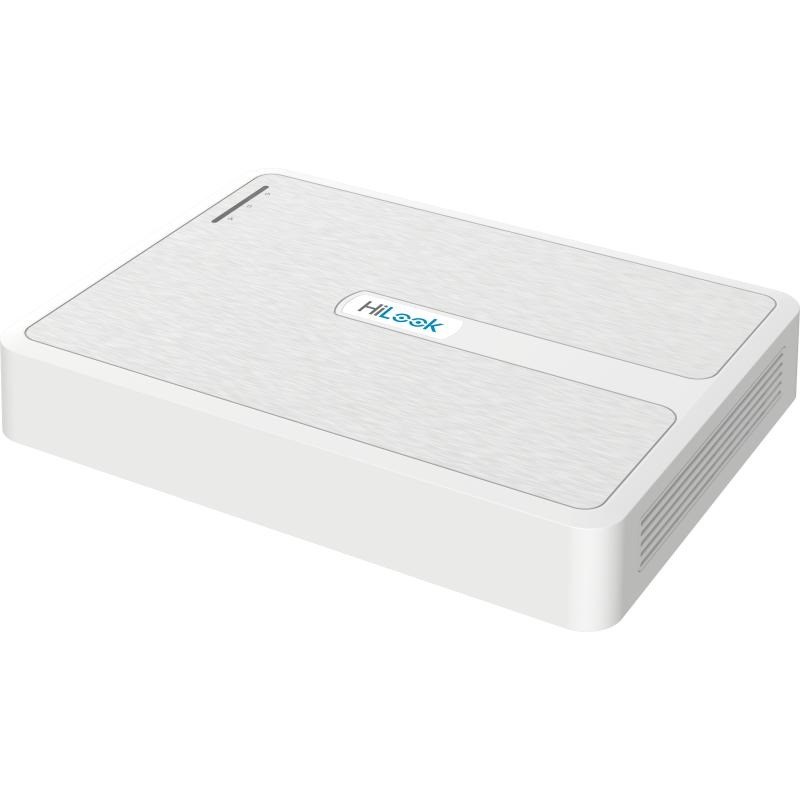

Hikvision DVR-116G-K1 16 Kanal DVR Kayıt Cihazı

Analog Video Input: 16-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input: 1080p25, 1080p30, 720p25, 720p30

AHD Input: 1080p25, 1080p30, 720p25, 720p30

HDCVI Input: 1080p25, 1080p30, 720p25, 720p30

CVBS Input: PAL/NTSC

HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Video Output Mode: HDMI/VGA simultaneous output

Audio Output: 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous Playback: 16-ch

Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF, For 720p stream access: 720p/WD1/4CIF/VGA/CIF, For SD stream access: WD1/4CIF/VGA/CIF

Video Bitrate: 32 Kbps to 4 Mbps

Dual-stream: Support

Stream Type: Video, Video & Audio

Audio Compression: G.711u

Audio Bitrate: 64 Kbps

Total Bandwidth: 96 Mbps

Network Protocol: TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS

Remote Connection: 128

Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface

SATA: 1, SATA interface

Capacity: Up to 10 TB capacity for each disk

USB Interface: 2 × USB 2.0
