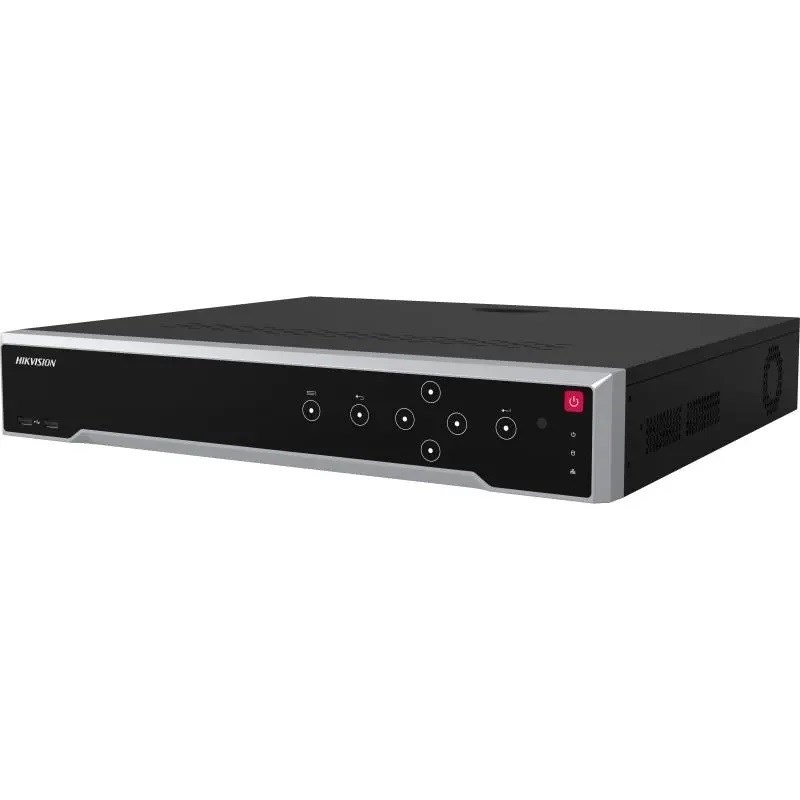

Hikvision DS-7764NI-M4 64 Kanal NVR Kayıt Cihazı

IP Video Input:

64-ch

Up to 32 MP resolution

Incoming Bandwidth:

400 Mbps

Outgoing Bandwidth:

400 Mbps

HDMI 1 Output:

8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

HDMI 2 Output:

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output:

1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Video Output Mode:

HDMI1/VGA simultaneous output, HDMI1/HDMI2 independent output

CVBS Output:

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Output:

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio:

1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding Format:

H.265+/H.265/H.264+/H.264

Synchronous Playback:

16-ch

Decoding Capability:

2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)

Dual-Stream Recording:

Support

Stream Type:

Video, Video & Audio

Audio Compression:

G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Remote Connection:

128

Network Protocol:

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface:

2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces

ESATA:

1 eSATA interface

SATA:

4 SATA interfaces

Capacity:

Up to 16 TB capacity for each HDD

Serial Interface:

2 RS-485 (half-duplex), 1 RS-232

Alarm In/Out:

16/9

USB Interface:

Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
