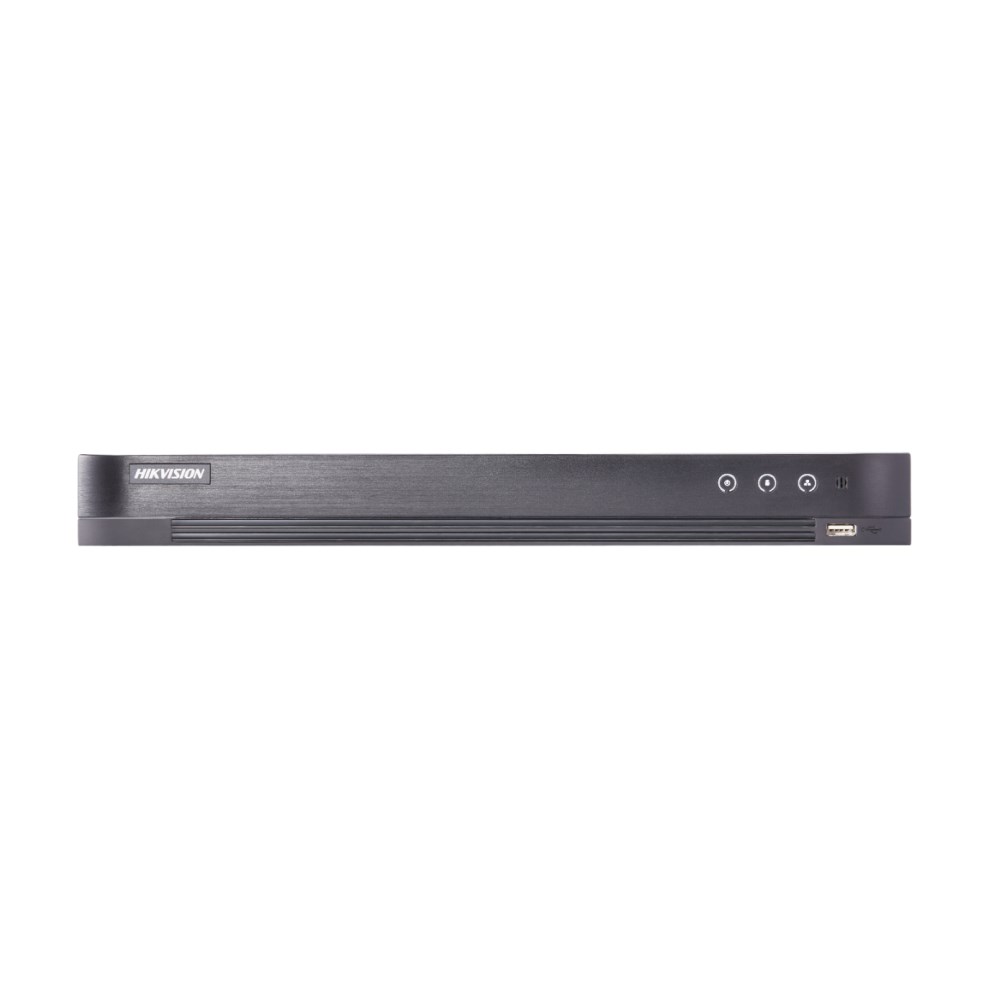

Hikvision DS-7216HUHI-K2 16 Kanal DVR Kayıt Cihazı

Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution: 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

Frame Rate: Main stream: ,8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N)

Video Bit Rate: 32 Kbps to 10 Mbps

Dual Stream: Support

Stream Type: Video, Video & Audio

Audio Compression: G.711u

Audio Bit Rate: 64 Kbps

IP Video Input: 16-ch (up to 32-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input: 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

AHD Input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30

HDCVI Input: 4 MP, 1080p25, 1080p30, 720p25, 720p30

CVBS Input: PAL/NTSC

Audio Input: 4-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio Output: 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous Playback: 16-ch

HDTVI Input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25

VGA/HDMI Output: VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI: 1-ch, 4K (3840 × 2160)/30Hz, ,2K (2560 × 1440)/60Hz,,1920 × 1080/60Hz, 1280 × 1024/60Hz, ,1280 × 720/60Hz, 1024 × 768/60Hz

CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω),

Remote Connections: 128

Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Network Interface: 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

SATA: 2 SATA interfaces

Capacity: Up to 10 TB capacity for each disk

Alarm In/Out: 16/4

USB Interface: Front panel: 1 × USB 2.0,Rear panel: 1 × USB 3.0

Serial Interface: RS-485 (half-duplex)

Power Supply: 12 VDC

Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity: 10% to 90%

Dimensions (W × D × H): 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)

Consumption (Without HDD): ≤ 25 W

Weights (Without HDD): ≤ 2 kg (4.4 lb)
