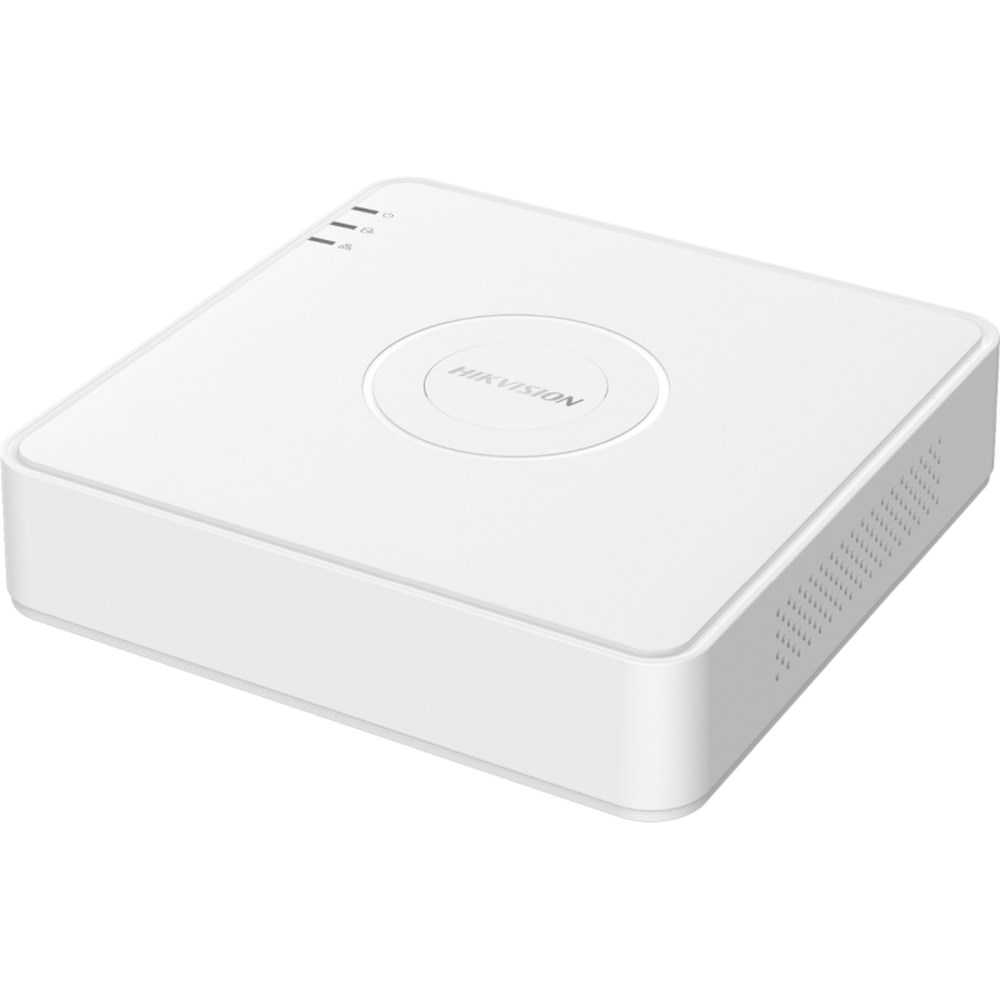

Hikvision DS-7108HGHI-K1 8 Kanal DVR Kayıt Cihazı

Human/Vehicle Analysis:
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;

Video Compression:
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution:
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
For 720p stream access: 720p/WD1/4CIF/VGA/CIF
For SD stream access: WD1/4CIF/VGA/CIF

Frame Rate:
Main stream:
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
For 1080p and 720p stream access CIF/QVGA@15 fps
For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)

Video Bitrate:
32 Kbps to 4 Mbps

Stream Type:
Video, Video & Audio

Audio Compression:
G.711u

Audio Bitrate:
64 Kbps

IP Video Input:
2-ch (up to 10-ch)
Up to 5 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input:
8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

Total Bandwidth:
72 Mbps

Remote Connection:
64

SATA:
1 SATA interface

Capacity:
Up to 4 TB capacity for each disk

USB Interface:
Rear panel: 2 × USB 2.0

Alarm In/Out:
N/A
