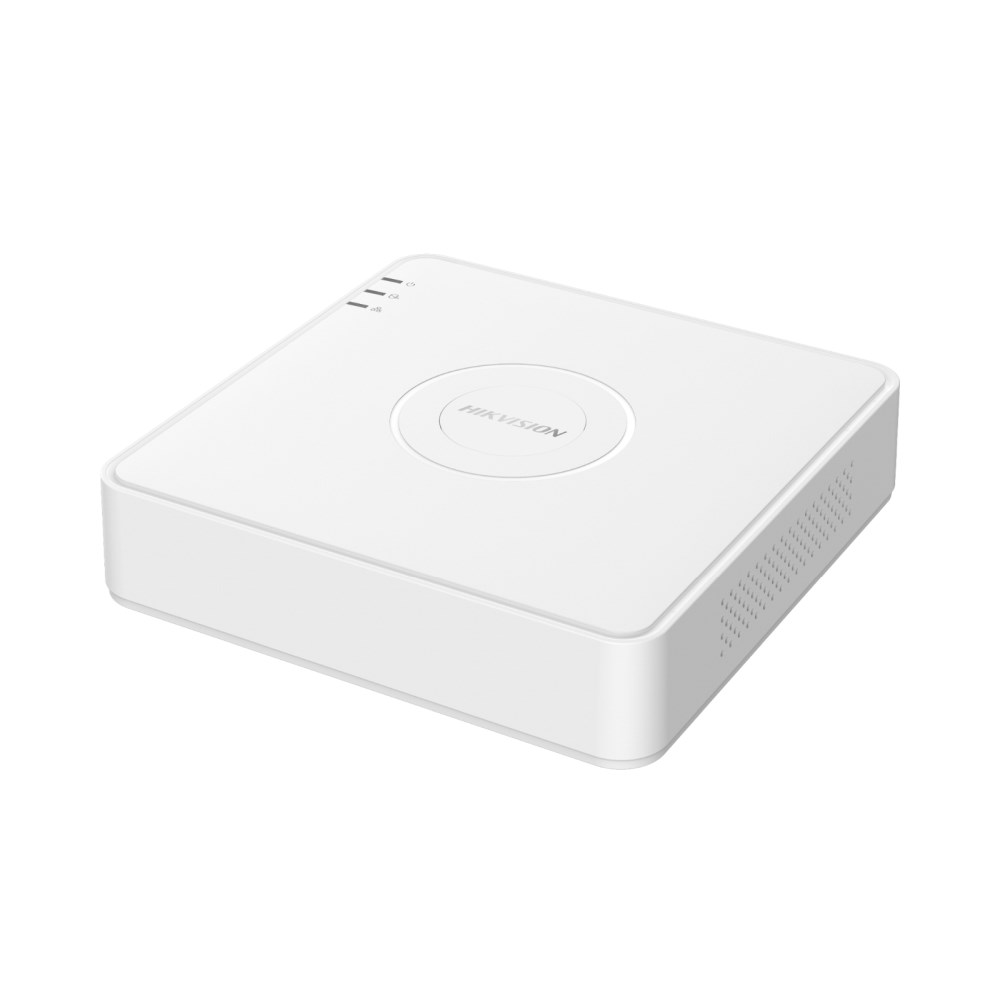

Hikvision DS-7104HGHI-K1 4 Kanal DVR Kayıt Cihazı

Human/Vehicle Analysis:
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;

Video Compression:
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution:
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
For 720p stream access: 720p/WD1/4CIF/VGA/CIF
For SD stream access: WD1/4CIF/VGA/CIF

Frame Rate:
Main stream:
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)

Video Bitrate:
32 Kbps to 4 Mbps

Stream Type:
Video, Video & Audio

Audio Compression:
G.711u

Audio Bitrate:
64 Kbps

IP Video Input:
1-ch (up to 5-ch)
Up to 1080p resolution
Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input:
4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input:
1080p25, 1080p30, 720p25, 720p30

AHD Input:
1080p25, 1080p30, 720p25, 720p30

HDCVI Input:
1080p25, 1080p30, 720p25, 720p30

CVBS Input:
Support

HDMI Output:
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output:
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode:
HDMI/VGA simultaneous output

Audio Input:
1-ch RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable

Audio Output:
1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio:
Reuse the first audio input

Synchronous Playback:
4-ch

Total Bandwidth:
64 Mbps

Network Protocol:
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Remote Connection:
32

Network Interface:
1, RJ45 10/100 Mbps self-adaptive Ethernet interface

SATA:
1 SATA interface

Capacity:
Up to 4 TB capacity for each disk

USB Interface:
Rear panel: 2 × USB 2.0

Alarm In/Out:
N/A

Power Supply:
12 VDC, 1.5 A

Consumption:
≤ 16 W (without HDD)

Working Temperature:
-10 °C to 55 °C (14 °F to +31 °F)

Working Humidity:
10% to 90%
