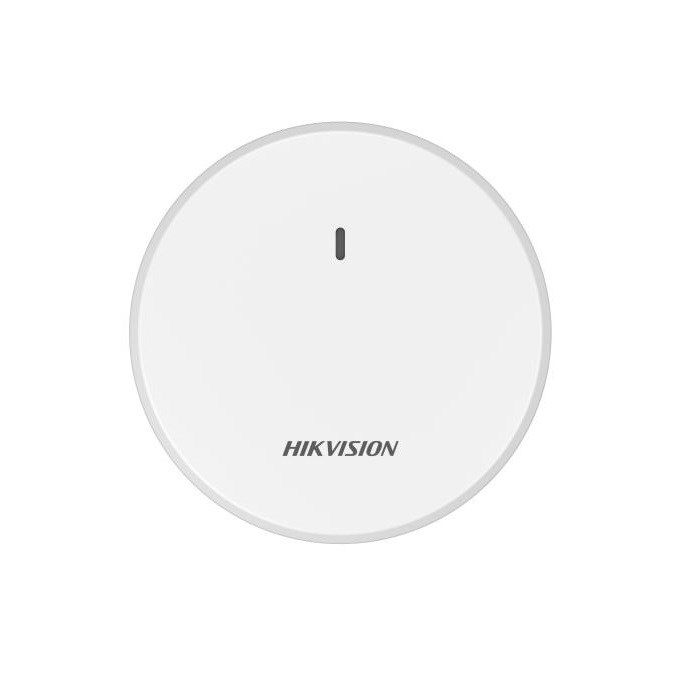

Hikvision DS-3WAP522-SI Wi-Fi 5 Access Point

Installation Mode: Desk-Mounted,Wall-Mounted,Ceiling Mounting

Working Temperature: 0 °C to 40 °C (32 °F to 104 °F)

Working Humidity: 5% to 95% (no condensation)

Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)

Storage Humidity: 5% to 95% (no condensation)

Product Dimensions (W × H × D): 220 mm × 220 mm × 39 mm (8.66'' × 8.66'' × 1.54'')

Packing List: 1200 M Access Point ×1,Screw Pack × 1,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1

Power Consumption: Max. 11.35 W

Maximum Number of Clients: 256

Recommended Number of Clients: 80

Maximum Number of SSIDs: 8

Working Frequency Band: radio 1: 5G(11a/an/ac), radio 2: 2.4G(11b/g/gn)

Wi-Fi Standards: Wi-Fi 5

Wi-Fi Speed: 2.4 G: 300 Mbps,5 G: 867 Mbps

Spatial Streams: 2.4 GHz, 2 × 2 , MU-MIMO, 5 GHz, 2 ×2 , MU-MIMO

Channel Width: 2.4 GHz: Auto/20 /40 MHz,5 GHz: Auto/20 /40 /80/MHz

Number of Antennas: 2.4 GHz：2；5 GHz：2

Antenna Type: Built-in omnidirectional antennas

Antenna Gain: 2.4 GHz: 3 dBi,5 GHz: 4 dBi

Transmit Power: 20 dBm

Interface: 1 × Gigabit RJ45 uplink port

Power Supply: IEEE 802.3af/at POE,12 VDC 1.5 A

LED Indicator: Yellow/green/blue for different working states, flashing mode

Reset Button: Hardware Resetting Button
