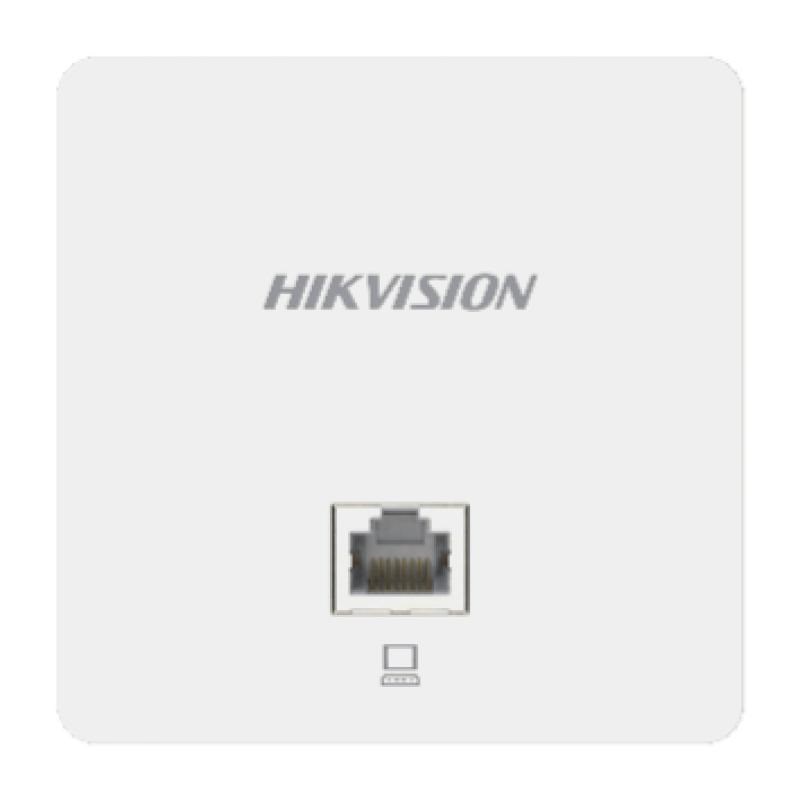

Hikvision DS-3WAP521-SI Wi-Fi 5 In-Wall Access Point

Installation Mode: In-Wall Mounting

Working Temperature: 0 °C to 40 °C (32 °F to 104 °F)

Working Humidity: 5% to 95% (no condensation)

Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)

Storage Humidity: 5% to 95% (no condensation)

Product Dimensions (W × H × D): 86 mm × 86 mm × 35 mm (3.38'' × 3.38'' × 1.37'')

Power Consumption: Max. 8 W

Interface: 1 × Gigabit RJ45 uplink port, 1 × Gigabit RJ45 port

Power Supply: IEEE 802.3af/at POE

LED Indicator: Yellow/green/blue for different working states, flashing mode

Reset Button: Hardware Resetting Button

Maximum Number of Clients: 128

Recommended Number of Clients: 50

Maximum Number of SSIDs: 8

Working Frequency Band: radio 1: 5G(11a/n/ac), radio 2: 2.4G(11b/g/n)

Wi-Fi Standards: Wi-Fi 5

Wi-Fi Speed: 2.4 G: 300 Mbps,5 G: 867 Mbps

Spatial Streams: 2.4 GHz, 2 × 2 , MU-MIMO, 5 GHz, 2 ×2 , MU-MIMO

Channel Width: 2.4 GHz: Auto/20 /40 MHz,5 GHz: Auto/20 /40 /80/ MHz

Number of Antennas: 2.4GHz：2；5GHz：2

Antenna Type: Built-in omnidirectional antennas

Antenna Gain: 2.4 GHz: 3 dBi,5 GHz: 3 dBi

Transmit Power: 20 dBm

Modulation Technology: OFDM: BPSK@6/9Mbp, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps; DSSS: DBPSK@1Mbps, DQPSK@2Mbps, [email protected]/11Mbps; MIMO-OFDM (11n): MCS 0-15; MIMO-OFDM (11ac): MCS 0-9
