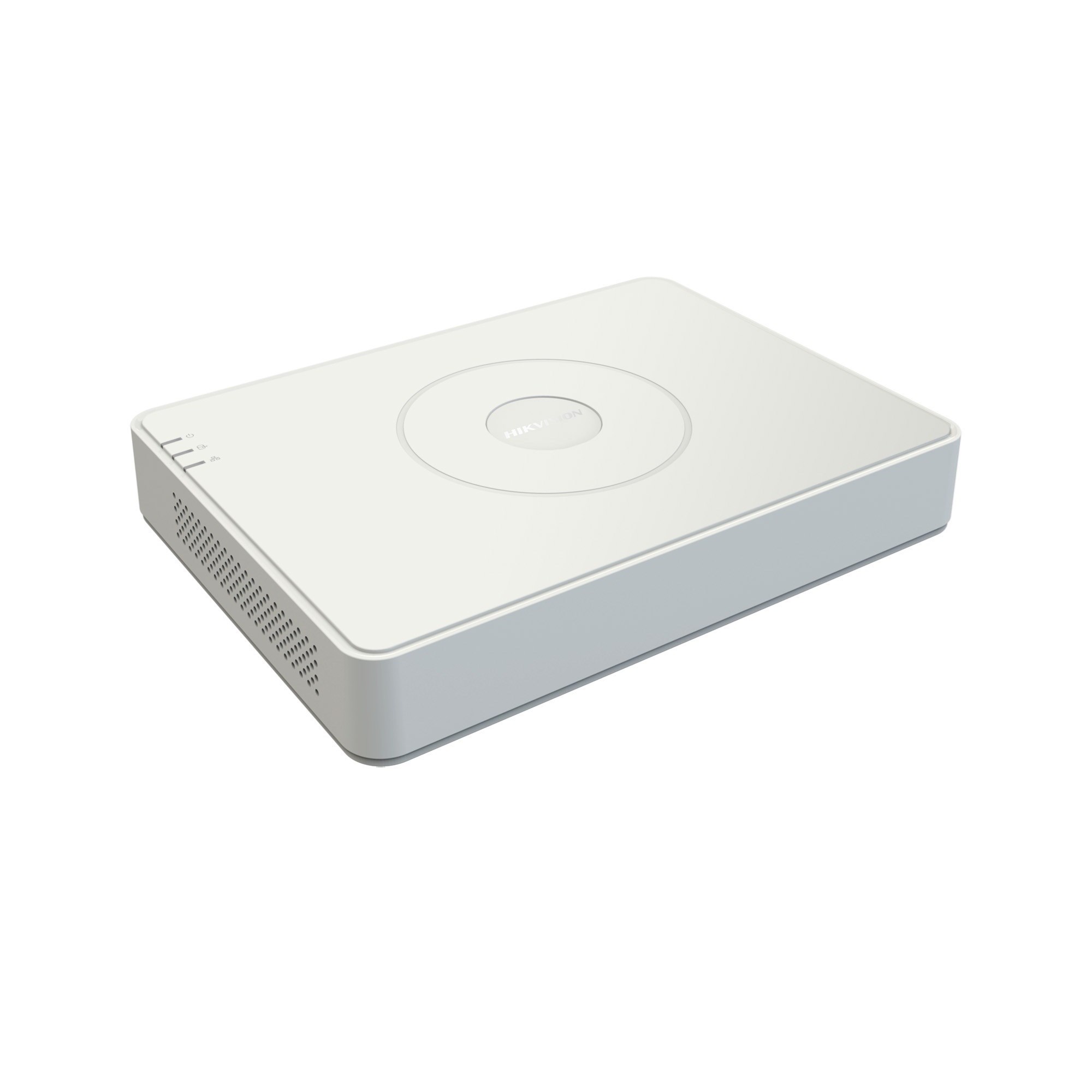

Haikon DS-7116HQHI-K1 16 Kanal DVR Kayıt Cihazı

Haikon DS-7116HQHI-K1 16 Kanal DVR Kayıt Cihazı

Özellikler

Video/Audio Input
Audio Input:1-ch
Video Compression:H.265+/H.265/H.264+/H.264
Analog and HD-TVI video input:16-ch,BNC interface (1.0Vp-p, 75 ?)connection
Supported camera types:3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
Note: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of
DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1.
Support AHD input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz
Support CVI input: 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz
support CVBS input
Video Input Interface:BNC (1.0 Vp-p, 75?)
Audio Compression:G.711u
Audio Input Interface:RCA (2.0 Vp-p, 1 k?)
Two-way Audio:1-ch, RCA (2.0 Vp-p, 1 K?) (using audio input)
Video/Audio Output
HDMI/VGA Output:1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution:When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode enabled: 3 MP/1080p lite/720p/VGA/WD1/4CIF/CIF
Frame Rate:Main stream:
When 1080p Lite mode not enabled:
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
3 MP@15fps
1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate:32 Kbps-6 Mbps
Stream Type:Video/Video&Audio
Audio Output:1-ch RCA(Linear, 1k?)
Audio Bit Rate:64kbps
Dual Stream:Support
Playback Resolution:3 MP/1080p/720p/VGA/WD1/4CIF/CIF
Synchronous Playback:16-ch
Network management
Remote connections:128
Network protocols:TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Hard Disk Driver
Interface Type:1 SATA Interface
Capacity:Up to 6 TB capacity for each disk
External Interface
Network Interface:1; 10M / 100M self-adaptive Ethernet interface
USB Interface:2 USB 2.0 Interfaces
General
Power Supply:12V DC
Consumption:? 15 W(without hard disks)
Working Temperature:-10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working Humidity:10% ~ 90%
Chassis:Mini 1U chassis
Dimensions:285 × 210 × 45 mm
(11.2× 8.3 × 1.8 inch)
Weight:? 1 kg (2.2 lb)
