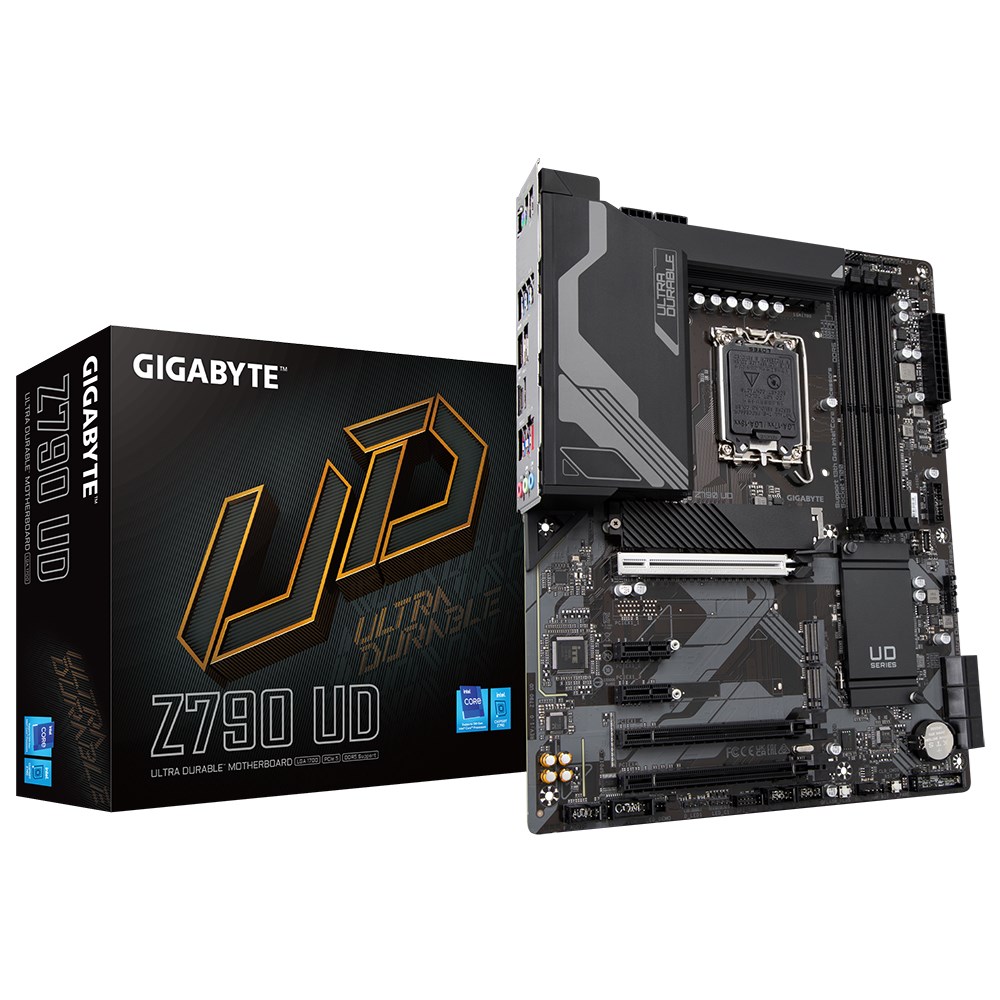

Gigabyte Z790 UD DDR5 Intel Z790 Soket 1700 ATX Anakart

CPU:

LGA1700 socket: Support for the 13th and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors

Chipset:

Intel^® Z790 Express Chipset

Memory:

4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

Onboard Graphics:

Integrated Graphics Processor-Intel^® HD Graphics support

Audio:

Realtek^® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN:

Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Internal I/O Connectors:

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

2 x RGB LED strip headers

3 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB Type-C^® header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x serial port header

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x reset button

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

Back Panel Connectors:

1 x USB Type-C^® port, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 2 Type-A port (red)

4 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x HDMI 2.0 port

1 x DisplayPort

1 x RJ-45 port

3 x audio jacks

I/O Controller:

iTE^® I/O Controller Chip

BIOS:

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor:

ATX Form Factor; 30.5cm x 24.4cm

EAN Numarası: 4719331850364
