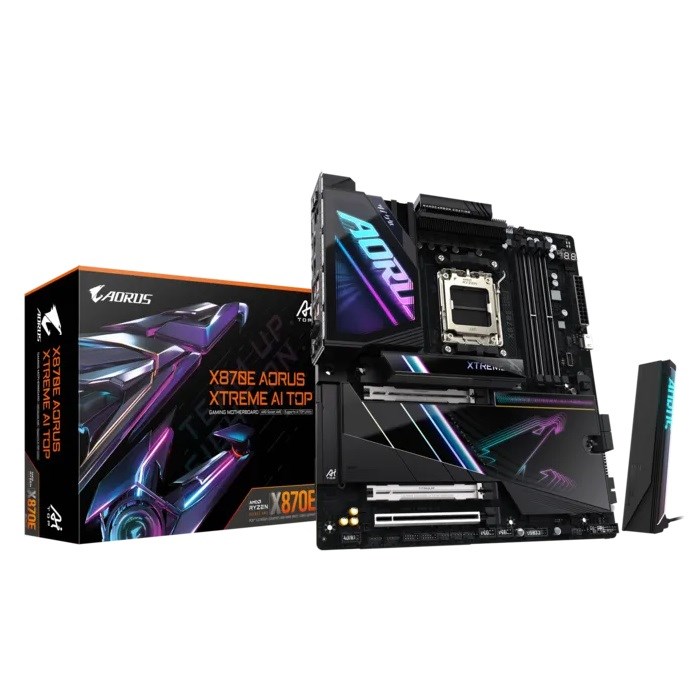

Gigabyte X870E AORUS XTREME AI TOP DDR5 AMD X870E Soket AM5 E-ATX Anakart

CPU:

AMD Socket AM5

Chipset:

AMD X870E

Memory:

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory

Onboard Graphics:

Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller

LAN:

2 x Marvell® AQtion AQC113C 10GbE LAN chips (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Internal I/O Connectors:

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
4 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
2 x temperature sensor headers
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x HDMI port
1 x Trusted PlatformModule header (For the GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
Voltage Measurement Points

Back Panel Connectors:

1 x Q-Flash Plus button
1 x Clear CMOS button
1 x HDMI port
2 x USB4® USB Type-C® ports (DisplayPorts)
6 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 2.0/1.1 ports
2 x RJ-45 ports
2 x antenna connectors (2T2R)
1 x optical S/PDIF Out connector
2 x audio jacks

I/O Controller:

iTE® I/O Controller Chip

BIOS:

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor:

E-ATX Form Factor; 30.5cm x 26.9cm

EAN Numarası: 4719331866150
