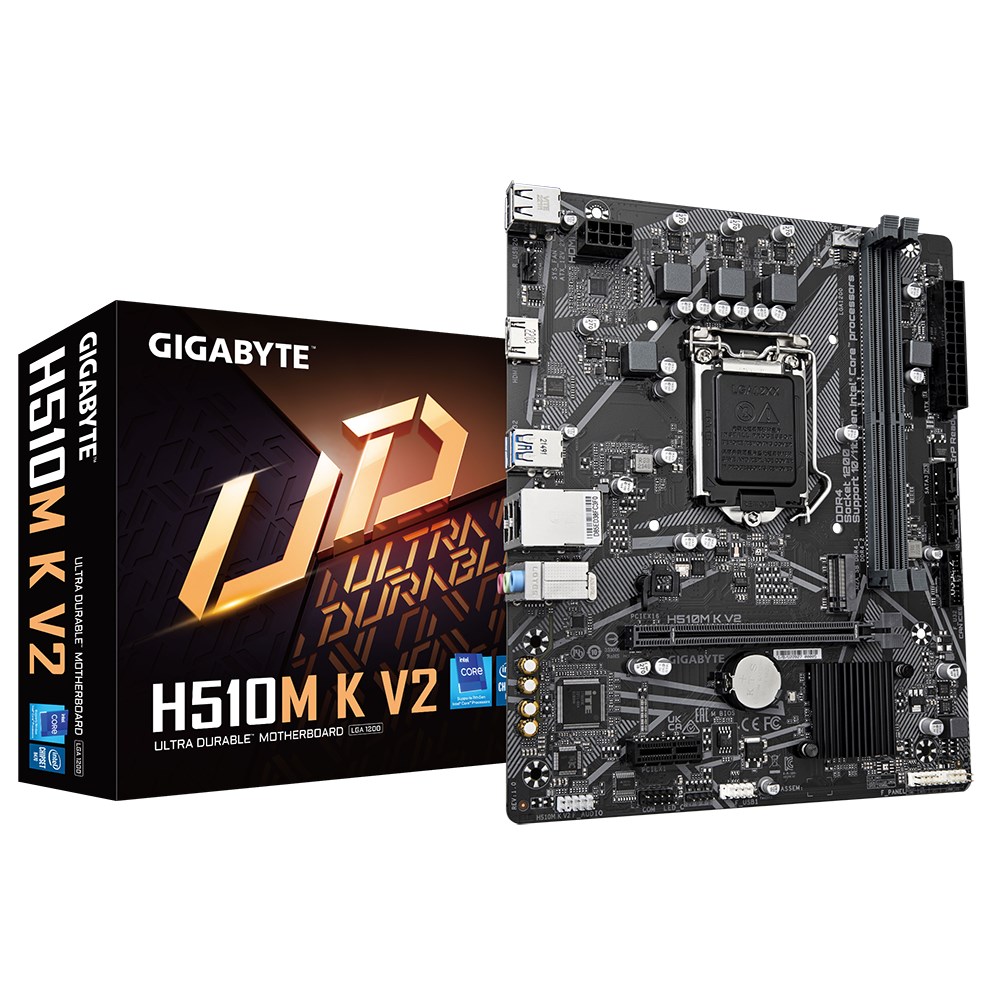

Gigabyte H510M K V2 DDR4 Intel H470 Soket 1200 Micro ATX Anakart

CPU:

LGA1200 package:

11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors

10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors

L3 cache varies with CPU

Chipset:

Intel H470 Express Chipset

Memory:

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Onboard Graphics:

Integrated Graphics Processor-Intel HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

Audio:

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

LAN:

Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Internal I/O Connectors:

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x RGB LED strip header

1 x M.2 Socket 3 connector

2 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x serial port header

1 x Clear CMOS jumper

Back Panel Connectors:

1 x HDMI port

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller:

iTE I/O Controller Chip

BIOS:

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor:

Micro ATX Form Factor; 22.6cm x 18.5cm
