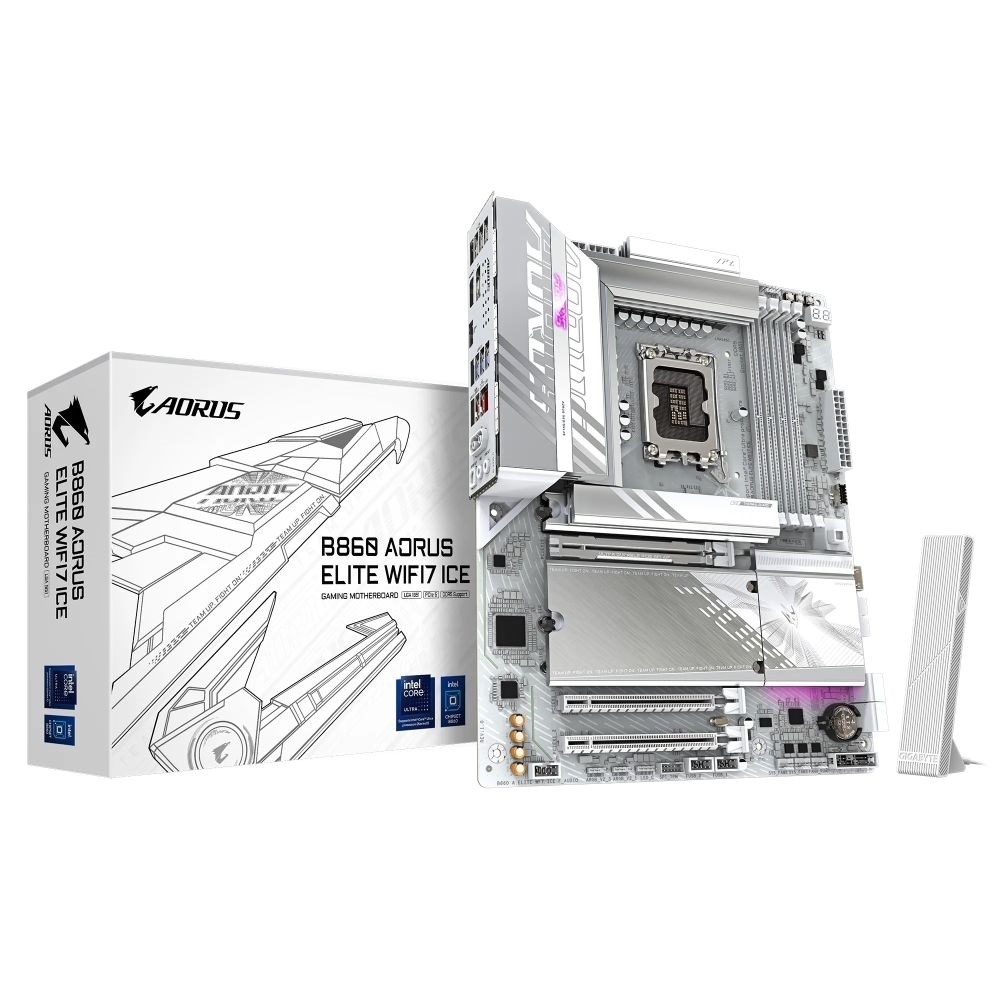

Gigabyte B860 A ELITE WF7 ICE DDR5 Intel B860 Soket 1851 ATX Anakart

CPU:
LGA1851 socket: Support for Intel ® Core™ Ultra Processors

Chipset:
Intel ® B860 Express Chipset

Memory:
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory

Onboard Graphics:
1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

Audio:
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

LAN:
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Internal I/O Connectors:
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port
1 x power button
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors:
1 x USB4® USB Type-C® port (DisplayPort)
2 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x DisplayPort
1 x HDMI port
2 x antenna connectors (2T2R)
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

I/O Controller:
iTE® I/O Controller Chip

BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form Factor:
ATX Form Factor; 30.5cm x 24.4cm

EAN Numarası: 4719331866846
