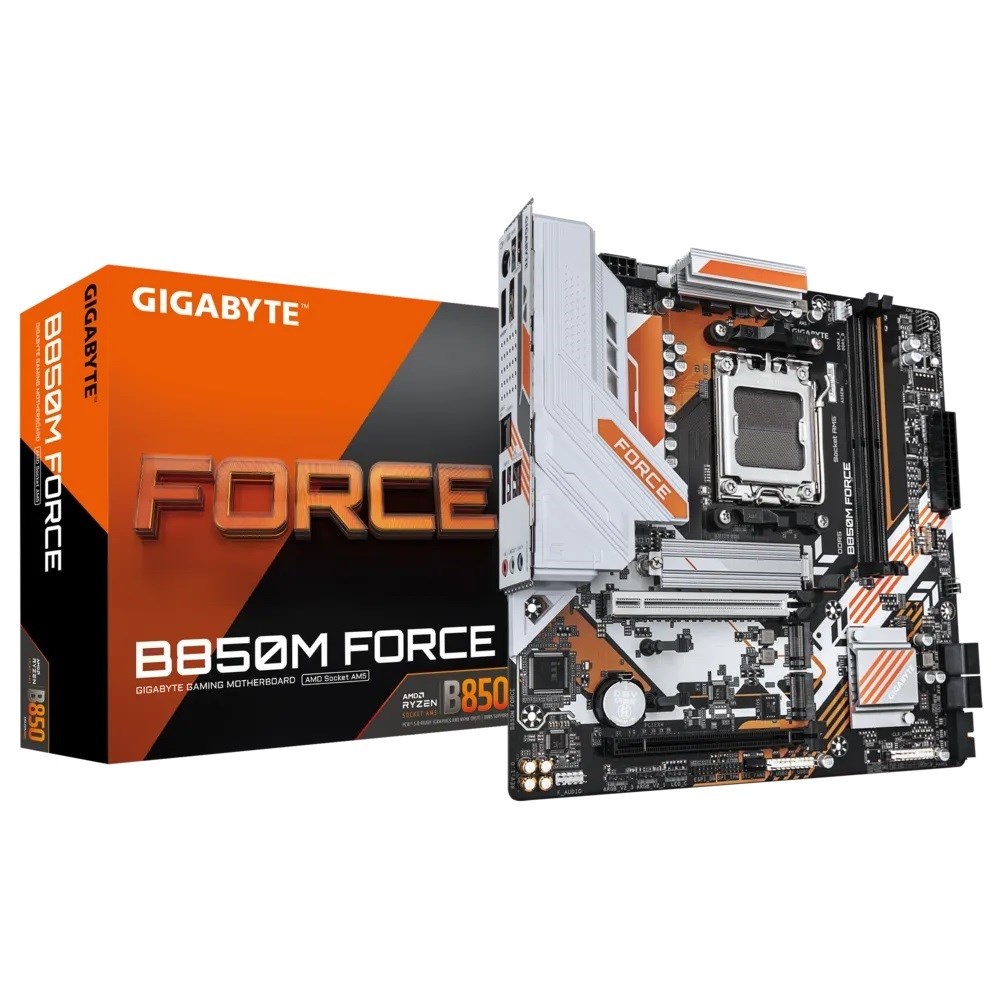

Gigabyte B850M FORCE DDR5 AMD B850 Soket AM5 Micro ATX Anakart

İşlemci:

AMD Socket AM5

Yongaseti:

AMD B850

Bellek:

2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory

Dahili Grafik:

Integrated Graphics Processor with AMD Radeon™ Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

Ses Desteği:

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

Dahili G/Ç Bağlantı Noktaları:

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper
1 x Q-Flash Plus button

Arka Panel G/Ç:

1 x HDMI port
1 x DisplayPort
1 x PS/2 keyboard/mouse port
1 x USB Type-C® port, with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 2 Type-A port (red)
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Form Faktör:

Micro ATX Form Factor; 24.4cm x 24.4cm

EAN Numarası: 4719331874322
