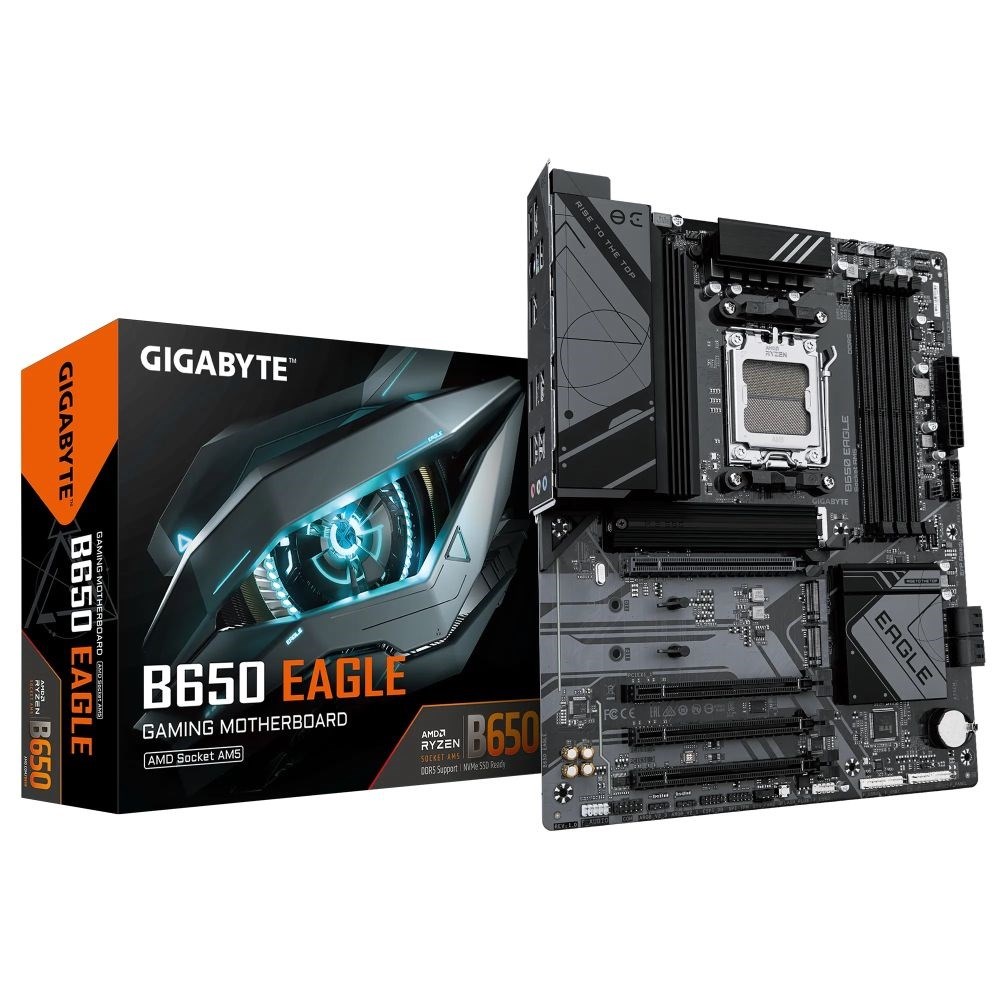

Gigabyte B650 EAGLE DDR5 AMD B650 Soket AM5 ATX Anakart

CPU:

AMD Socket AM5, support for:
AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

Chipset:

AMD B650

Memory:

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Onboard Graphics:

1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Audio:

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

LAN:

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Internal I/O Connectors:

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
2 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
3 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x Q-Flash Plus button
1 x serial port header j
1 x Clear CMOS jumper

Back Panel Connectors:

1 x DisplayPort
1 x HDMI port
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x USB Type-C® port, with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 2 Type-A ports (red)
6 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller:

iTE® I/O Controller Chip

Form Factor:

ATX Form Factor; 30.5cm x 24.4cm
