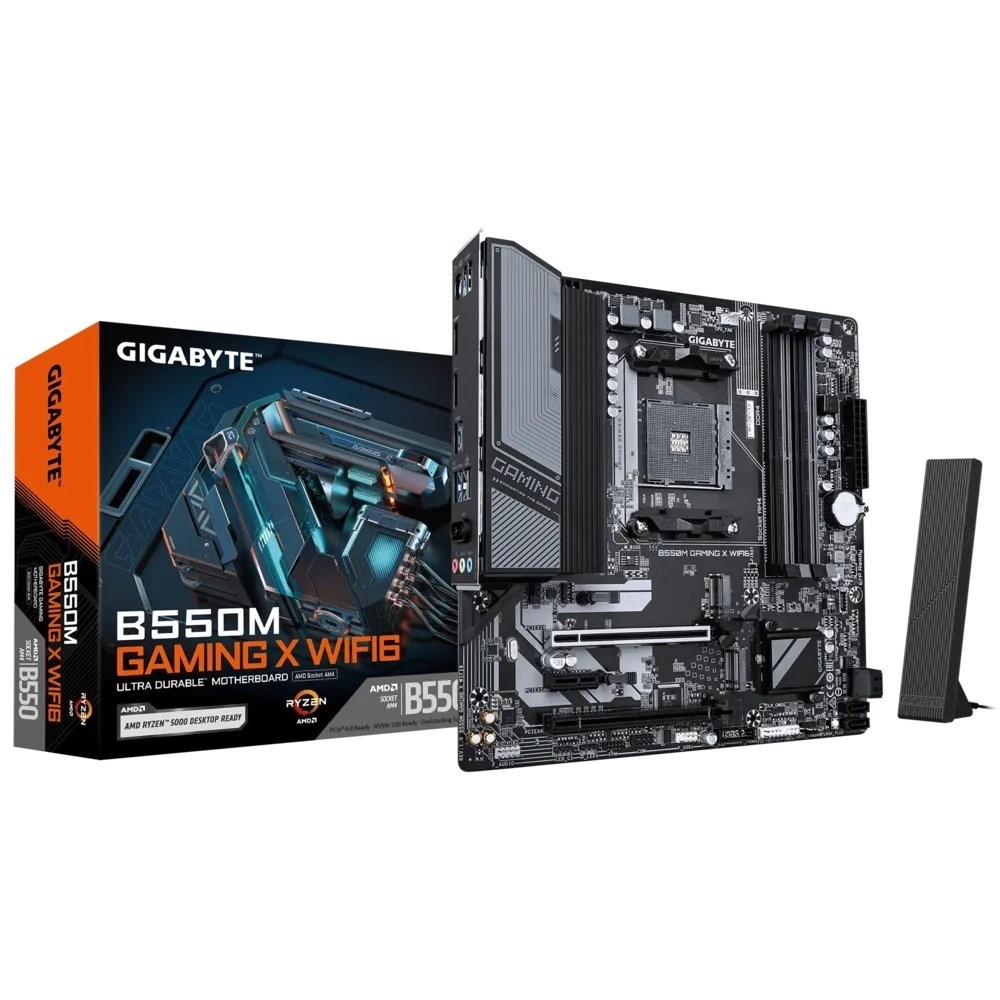

Gigabyte B550M GAMING X WIFI6 DDR4 AMD B550 Soket AM4 Micro ATX Anakart

CPU:

AMD Socket AM4

Chipset:

AMD B550

Memory:

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)of system memory

Onboard Graphics:

Integrated Graphics Processor with AMD Radeon™ Graphics support

LAN:

Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Internal I/O Connectors:

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

Back Panel Connectors:

2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x HDMI port
1 x DisplayPort
4 x USB 3.2 Gen 1 ports
1 x RJ-45 port
2 x antenna connectors
3 x audio jacks

Form Factor:

Micro ATX Form Factor; 24.4cm x 24.4cm

EAN Numarası: 4719331870096
