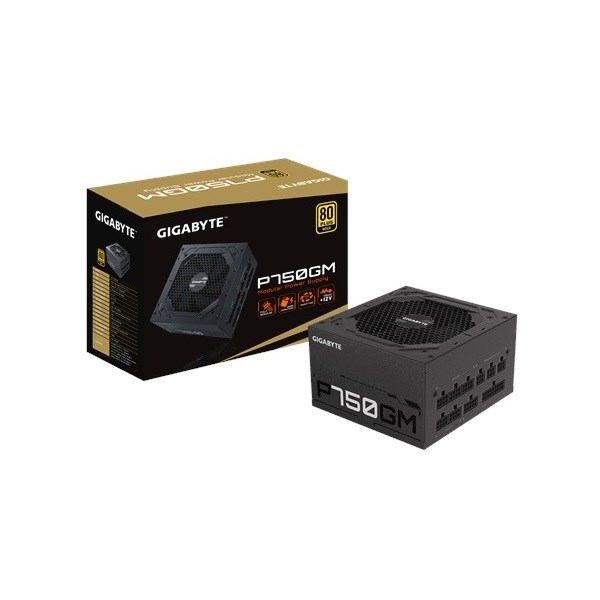

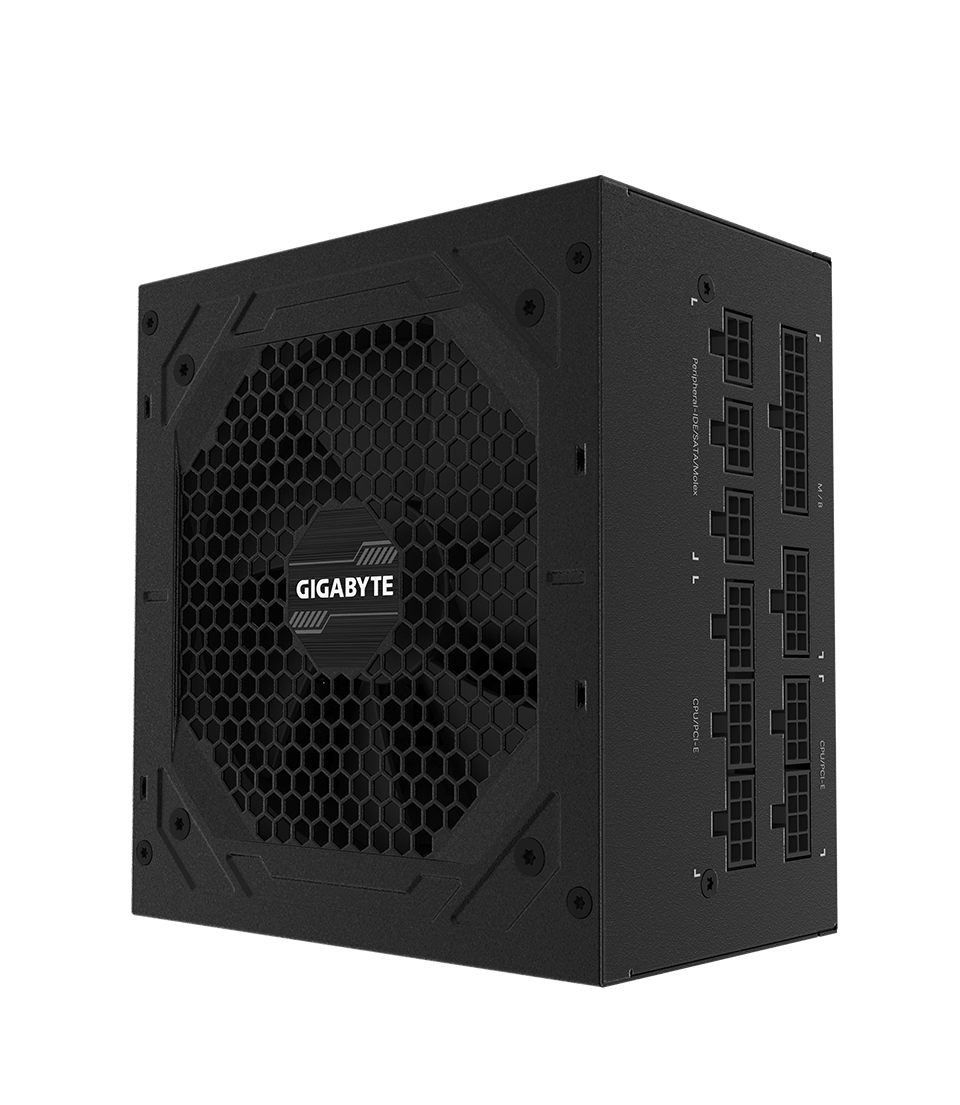

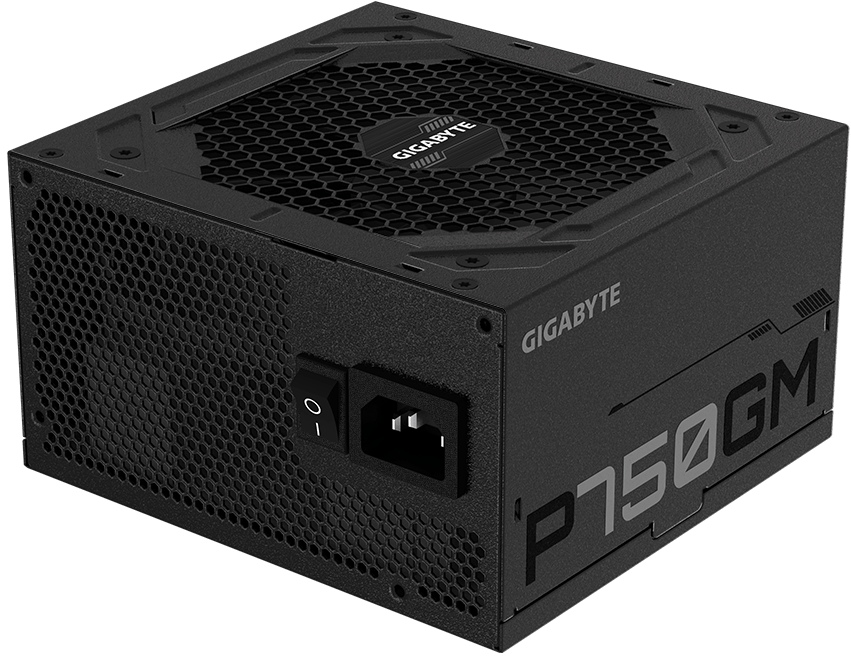

GIGABYTE P750W 80+Gold Full Modüler PSU GP-P750GM POWER SUPPLY

Features

• 80 PLUS Gold certified
• Fully modular design
• 120mm Smart Hydraulic Bearing (HYB) Fan
• Main Japanese capacitors
• Powerful single +12V rail
• OVP/OPP/SCP/UVP/OCP/OTP protection
• Compact size
• 5 years warranty (Adjusted according to different regions)

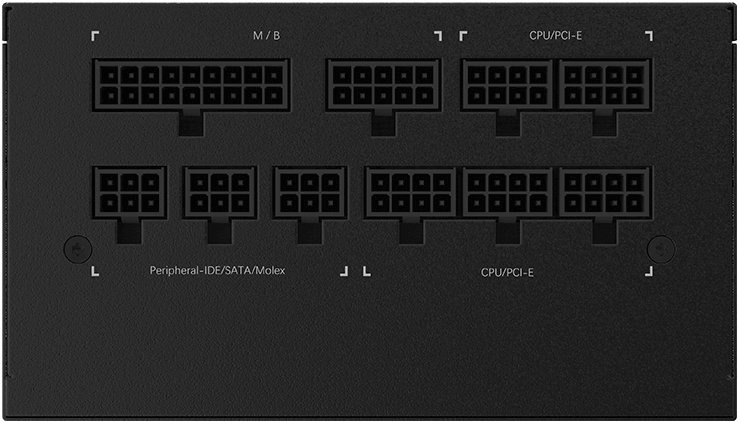

FULLY MODULAR DESIGN

All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.

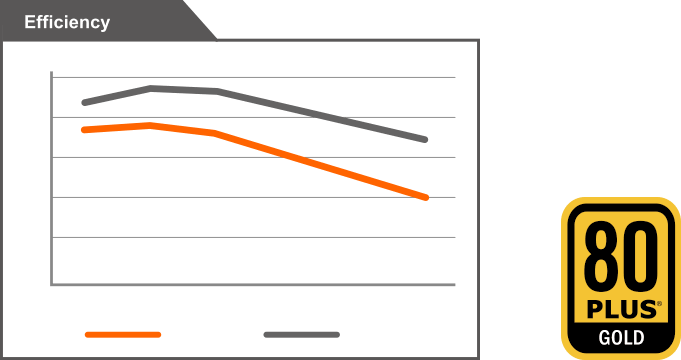

80 PLUS GOLD CERTIFIED

80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.

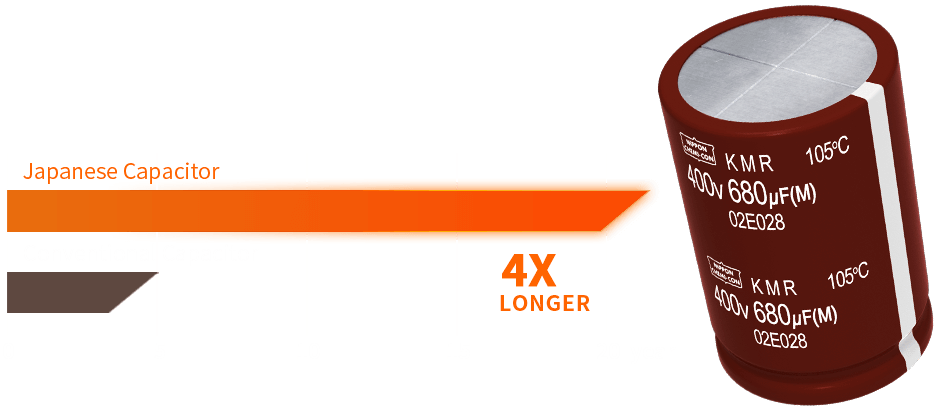

HIGH QUALITY JAPANESE CAPACITORS

The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

The life of the main capacitor is over 20 years
(Environment 25°C)

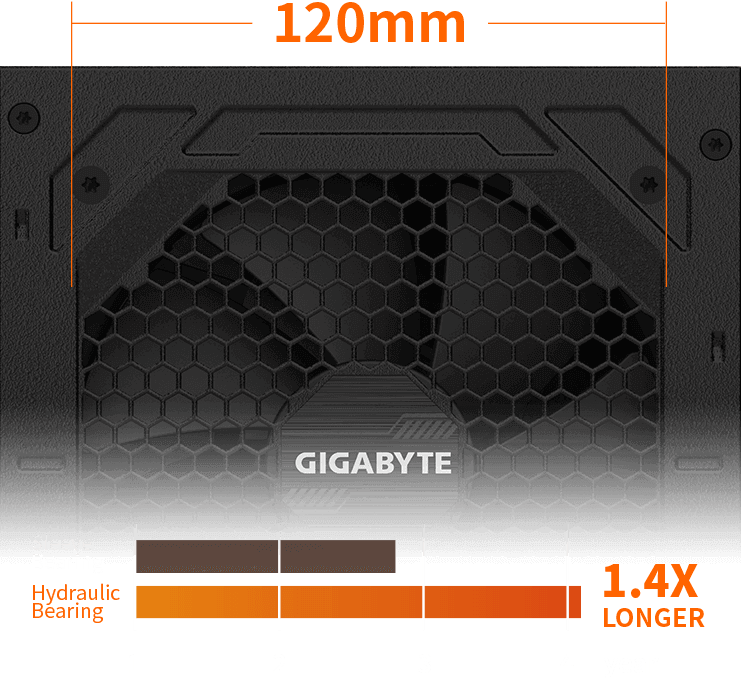

120MM SMART HYDRAULIC BEARING (HYB) FAN

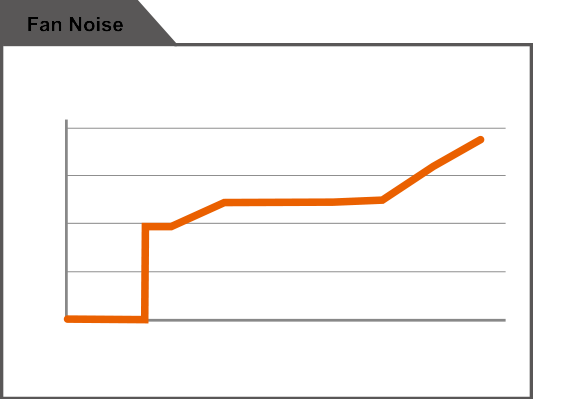

The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.

The curve is for reference only. Please refer to the color box for actual curve.

The life of the Hydraulic Bearing fan is more than 4 years

SINGLE +12V RAIL

Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

PROTECTION

In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

• Model

  GP-P750GM

• Type

  Intel Form Factor ATX 12V v2.31

• PFC

  Active PFC (>0.9 typical)

• Input Voltage

  1‎00-240 Vac (full range)

• Input Current

  1‎2-6 A

• Input Frequency

  6‎0-50 Hz

• Output Capacity

  7‎50W

• Dimension

  1‎50 x 140 x 86 mm

• Fan Type

  1‎20mm Hydraulic Bearing ( HYB ) fan

• 80 PLUS

  Gold

• Efficiency

  9‎0% at typical load

• MTBF

  >100,000 hours

• Protection

  OVP/OPP/SCP/UVP/OCP/OTP

• Power Good Signal

  1‎00-500ms

• Hold Up Time

  >16ms

• Cable Type

  Flat, All black

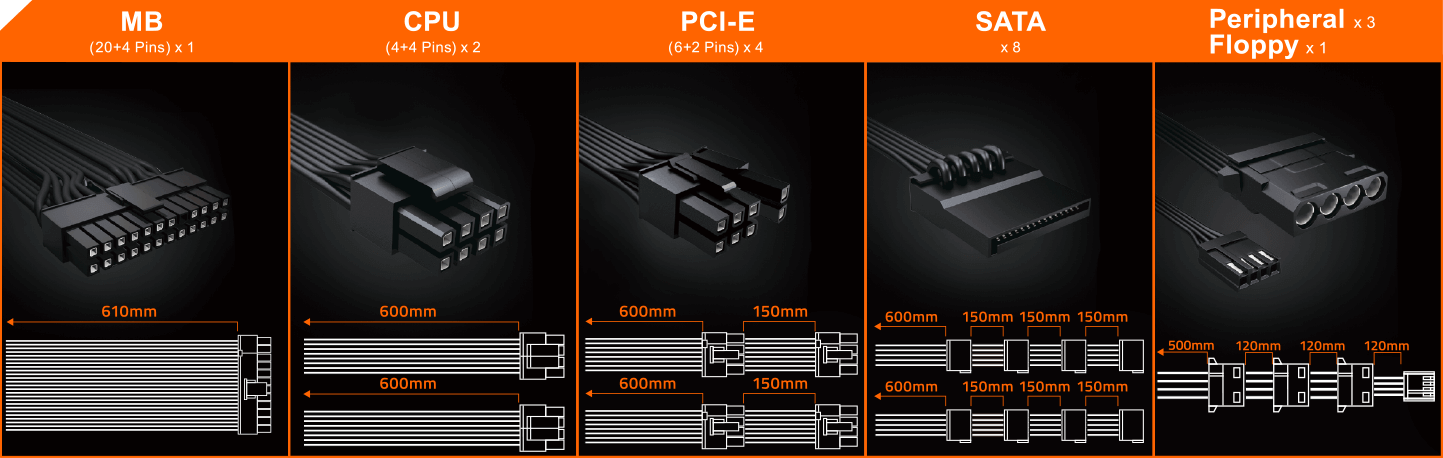

• Connectors

  ATX/MB 20+4 Pin x 1 : 610mm*1
  CPU/EPS 4+4 Pin x 2 : 600mm*2
  PCI-e 6+2 Pin x 4 : 600mm+150mm*2
  SATA x 8 : 600mm+150mm+150mm+150mm*2 :
  4 Pin Peripheral x 3 + 4-Pin floppy x 1 :
  500mm+120mm+120mm+120mm *1

EAN Numarası: 4719331551759
