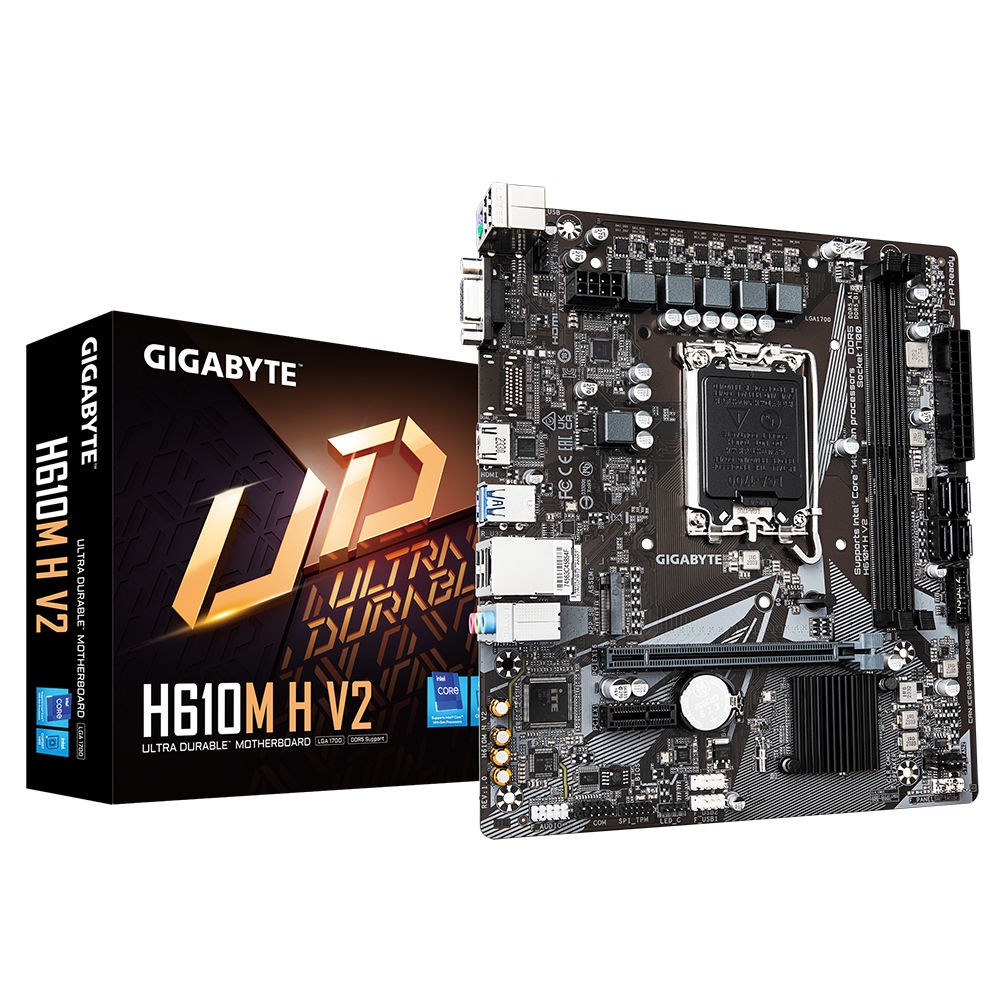

GIGABYTE H610M H V2 DDR5 LGA1700P VGA HDMI M.2 USB3.2 mATX Anakart

• İşlemci

  LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors
  * Please refer to "CPU Support List" for more information.
  L3 cache varies with CPU

• Yongaseti : Intel^® H610 Express Chipset

• Bellek

  14th and 13th Generation Intel^® Core™ i9/i7 Pocessors:
  - Support for DDR5 5600/5200/4800/4400 MT/s memory modules
  13th Generation Intel^® Core™ i5/i3 and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors:
  - Support for DDR5 4800/4400 MT/s memory modules
  2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

• Dahili Grafik

  Integrated Graphics Processor-Intel^® HD Graphics support:
  - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support native HDMI 2.1 TMDS compatible ports.


  (Graphics specifications may vary depending on CPU support.)

• Ses Desteği

  Realtek^® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel

  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN : Realtek^® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

• Genişleme Yuvaları

  CPU:
  - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  Chipset:
  - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

• Depolama Ara yüzü

  Chipset:
  - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD
  support)
  - 4 x SATA 6Gb/s connectors

• USB

  Chipset:
  - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  - 4 x USB 2.0/1.1 ports on the back panel
  Chipset+USB 2.0 Hub:
  - 4 x USB 2.0/1.1 ports available through the internal USB headers

• Dahili G/Ç Bağlantı Noktaları

  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  2 x system fan headers
  1 x M.2 Socket 3 connector
  4 x SATA 6Gb/s connectors
  1 x RGB LED strip header
  1 x front panel header
  1 x front panel audio header
  1 x speaker header
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
  1 x serial port header
  1 x Clear CMOS jumper
  1 x chassis intrusion header

• Arka Panel G/Ç

  1 x PS/2 keyboard/mouse port
  1 x D-Sub port
  1 x HDMI port
  2 x USB 3.2 Gen 1 ports
  4 x USB 2.0/1.1 ports
  1 x RJ-45 port
  3 x audio jacks

• G/Ç Denetleyicisi : iTE^® I/O Controller Chip

• Donanım İzleme

  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control

  * Whether the fan speed control function is supported will depend on the fan you install.

• BIOS

  1 x 128 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Diğer Özellikler

  Support for APP Center

  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


  - @BIOS
  - EasyTune
  - Smart Backup
  - System Information Viewer
  Support for Q-Flash

• Bundled Software

  Norton^® Internet Security (OEM version)
  LAN bandwidth management software

• İşletim Sistemi

  Support for Windows 11 64-bit
  Support for Windows 10 64-bit

• Form Faktör : Micro ATX Form Factor; 22.3cm x 19.6cm

EAN Numarası: 4719331859985
