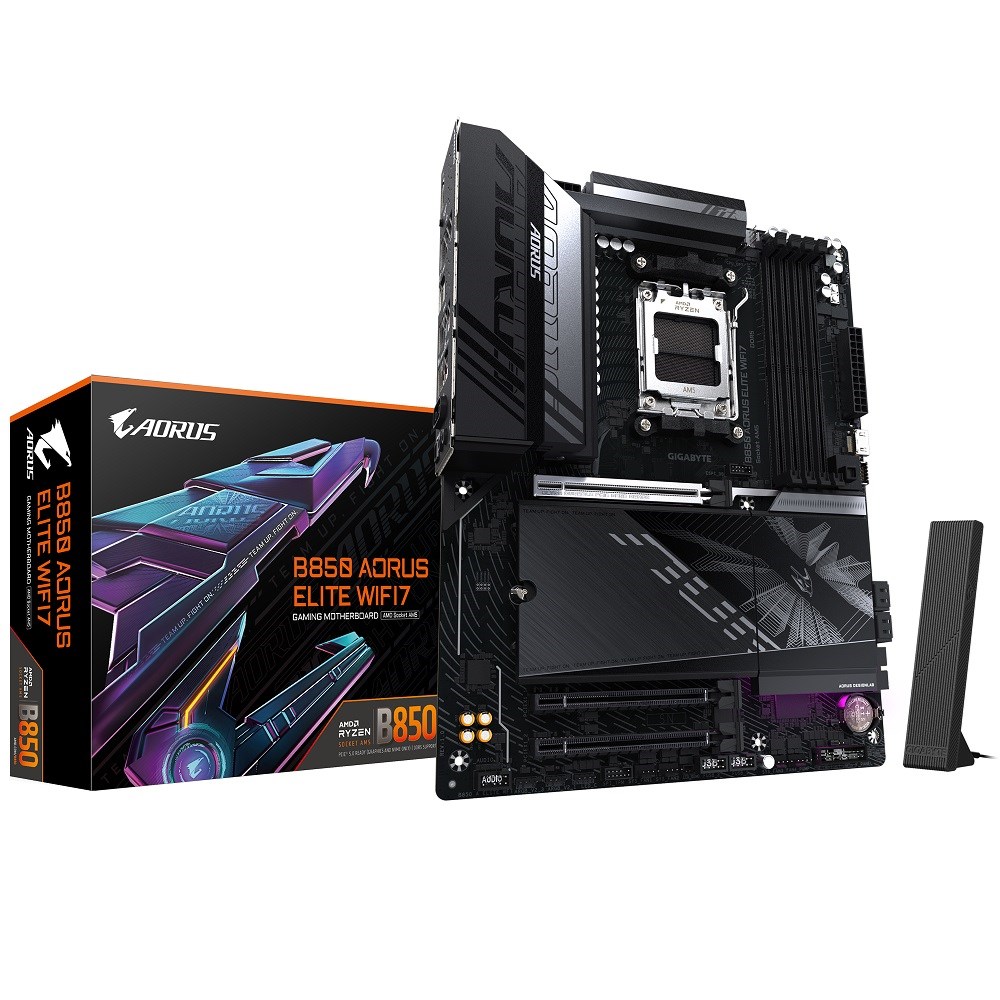

GIGABYTE B850 AORUS ELITE WIFI7 DDR5 Soket AM5 DP USB3.2 ATX Anakart

• X3D Turbo Mode: Unleash new era gaming performance
• DDR5 OC up to 8200MT/s
• AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital twin 14+2+2 phases VRM solution
• Dual Channel DDR5: 4*DIMMs with AMD EXPO™ Memory Module Support
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click: M.2 heatsinks with screwless design
• Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
• Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity: HDMI, DisplayPort
• PCIe UD Slot: PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

• İşlemci

  1. AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors

  (En son CPU destek listesi için GIGABYTE'ın web sitesine gidin)

• Yongaseti

  1. AMD B850

• Bellek

  1. Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
  2. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  3. ECC olmayan DIMM 1Rx8/2Rx8/1Rx16 hafıza modüllerini destekler
  4. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

• Dahili Grafik

  Integrated Graphics Processor - AMD Radeon™ Graphics support

  1. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
     * Support for DisplayPort 1.4 version and HDR.
  2. 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

     * Support for HDMI 1.4.

  (Graphics specifications may vary depending on CPU support.)

• Ses Desteği

  Realtek® Audio CODEC (Only for rev. 1.0)

  1. HD Ses Desteği
  2. 2/4/5.1/7.1-kanal

     * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.



  3. S/PDIF Çıkış Desteği

  Realtek® ALC1220 CODEC (Only for rev. 1.1)
  * The back panel line out jack supports DSD audio.

  1. HD Ses Desteği
  2. 2/4/5.1/7.1-kanal

     * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.



  3. S/PDIF Çıkış Desteği

• LAN

  1. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Wireless Bağlantı Modülü

  Realtek® Wi-Fi 7 RTL8922AE

  1. 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  2. BLUETOOTH 5.4
  3. Support for 11be 160MHz wireless standard

  (Actual data rate may vary depending on environment and equipment.)

  * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)
  ** Wi-Fi 7 channels on 6GHz band availability depends on individual country's regulations.

• Genişleme Yuvaları

  1 x PCI Express x16 slot (PCIEX16), integrated in the CPU

  1. AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
  2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
     * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

  Chipset

  1. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

• Depolama Ara yüzü

  1. 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
     AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
     AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
     AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  2. 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
     AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
     AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
     AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
  3. 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
  4. 4 x SATA 6Gb/s konektörler
  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

  * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

  RAID 0, RAID 1, and RAID 10 support for SATA storage devices

• USB

  İşlemci

  1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2 support
  2. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

  CPU+USB 2.0 Hub

  1. 4 x USB 2.0/1.1 ports on the back panel

  Yongaseti

  1. 1 x USB Type-C^® port with USB 3.2 Gen 2x2 support, available through the internal USB header
  2. 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
  3. 4 x USB 2.0/1.1 yuva dahili USB bağlantısı ile

  Chipset+USB 3.2 Gen 1 Hub

  1. 4 x USB 3.2 Gen 1 ports on the back panel

• Dahili G/Ç Bağlantı Noktaları

  1. 1 x 24-pin ATX ana güç konektörü
  2. 1 x 8-pin ATX 12V güç konektörü
  3. 1 x 4-pin ATX 12V güç konektörü
  4. 1 x CPU Fan konektörü
  5. 1 x CPU fan/water cooling pump header
  6. 3 x Sistem fanı bağlantı noktası
  7. 1 x sistem fan/sıvı soğutma pompa başlığı
  8. 3 x addressable RGB Gen2 LED strip headers
  9. 1 x RGB LED şerit başlığı
  10. 3 x M.2 Soket 3 konektör
  11. 4 x SATA 6Gb/s konnektörü
  12. 1 x ön panel başlığı
  13. 1 x ön panel ses başlığı
  14. 1 x USB Type-C^® header, with USB 3.2 Gen 2x2 support
  15. 1 x USB 3.2 Gen 1 header
  16. 2 x USB 2.0/1.1 konektörü
  17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
      TPM özeliği, bölgesel kuralların farklılığı nedeniyle opsiyonel olabilir
  18. 1 x HDMI bağlantı noktası*
  19. 1 x Power (Güç) Düğmesi
  20. 1 x Reset (Yeniden Başlatma) Düğmesi
  21. 1 x reset jumper
  22. 1 x Clear CMOS bağlayıcı teli

  * Gerçek destek CPU tarafından değişiklik gösterebilir.

• Arka Panel G/Ç

  1. 1 x DisplayPort bağlantı noktası*
  2. 1 x Q-Flash Plus button
  3. 4 x USB 2.0/1.1 yuva
  4. 1 x USB Type-C^® port, with USB 3.2 Gen 2 support
  5. 5 x USB 3.2 Gen 1 ports
  6. 1 x RJ-45 bağlantı noktası
  7. 2 x USB 3.2 Gen 2 Type-A ports (red)
  8. 2 x antenna connectors (2T2R)
  9. 2 x ses jakı
  10. 1 x optik S / PDIF Çıkış konektörü

  * Gerçek destek CPU tarafından değişiklik gösterebilir.

• G/Ç Denetleyicisi

  1. iTE® I/O Kontrol Yongası

• Donanım İzleme

  1. Voltaj dedektörü
  2. Sıcaklık dedektörü
  3. Fan hız dedektörü
  4. Su soğutma akış hızı algılama
  5. Fan hatası uyarısı
  6. Fan hız kontrolü
     * Fan (pompa) hız kontrolü fonksiyonunun desteklenip desteklenmediği, kurduğunuz fan (pompa) 'ya bağlıdır.

• BIOS

  1. 1 x 256 Mbit flash
  2. Lisanslı AMI UEFI BIOS kullanımı
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Diğer Özellikler

  1. Support for GIGABYTE Control Center (GCC)
     *Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  2. Q-Flash desteği
  3. Q-Flash Plus desteği
  4. Support for Smart Backup

• Bundled Software

  1. Norton® Internet Security (OEM versiyon)
  2. LAN bandwidth management software

• İşletim Sistemi

  1. Support for Windows 11 64-bit

• Form Faktör

  1. ATX Form Faktör; 30.5cm x 24.4cm

EAN Numarası: 4719331866105
