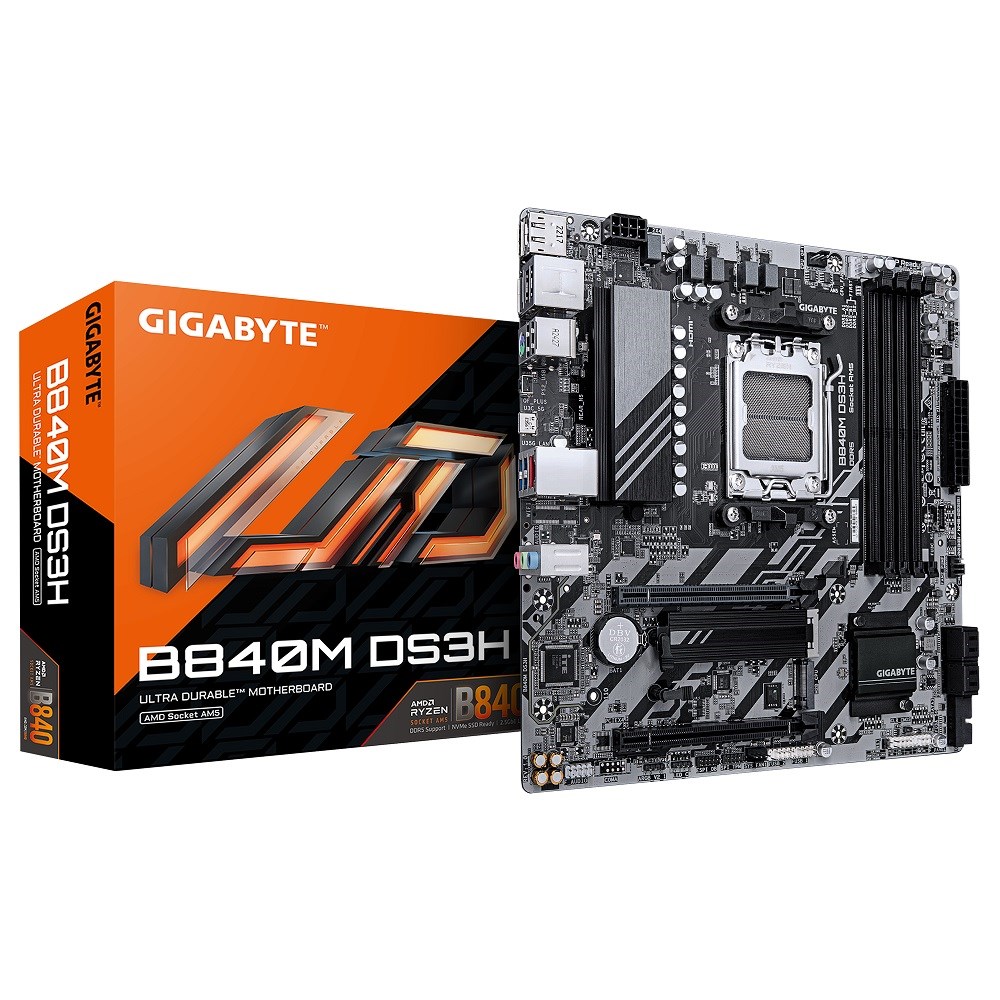

GIGABYTE B840M DS3H DDR5 Soket AM5 M.2 HDMI DP TYPE-C USB3.2 mATX Anakart

• X3D Turbo Mode: Unleash new era gaming performance
• AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital 8+1+2 phases VRM solution
• Dual Channel DDR5: 4*DIMMs with AMD EXPO™ Memory Module Support
• EZ-Latch: PCIe x16 Slot with Quick Release Design
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• Ultra-Fast Storage: 2*M.2 slots, including 1* PCIe 4.0 x4
• M.2 Termal Koruma: To Ensure M.2 SSD Performance
• Fast Networking: 2.5GbE LAN
• Extended Connectivity: 2*DisplayPort, HDMI

• İşlemci

  1. AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors

  (En son CPU destek listesi için GIGABYTE'ın web sitesine gidin)

• Yongaseti

  1. AMD B840

• Bellek

  1. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  2. Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
  3. Çift kanal bellek mimarisi
  4. ECC olmayan DIMM 1Rx8/2Rx8/1Rx16 hafıza modüllerini destekler
  5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

• Dahili Grafik

  Integrated Graphics Processor - AMD Radeon™ Graphics support

  1. Maksimum 4096x2160 @ 60 Hz çözünürlüğü destekleyen 1 x HDMI bağlantı noktası

     * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
     ** Support native HDMI 2.1 TMDS compatible ports.

  2. 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
     * Support for DisplayPort 1.4 version.

  Support for up to triple-display at the same time

  (Graphics specifications may vary depending on CPU support.)

• Ses Desteği

  1. Realtek® audio codec
  2. HD Ses Desteği
  3. 2/4/5.1/7.1-kanal
     * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN

  1. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

• Genişleme Yuvaları

  1 x PCI Express x16 slot (PCIEX16), integrated in the CPU

  1. AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode
  2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
  4. (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)

  Chipset

  1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

• Depolama Ara yüzü

  1. 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
     AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
     AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
     AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  2. 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
     AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
     AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
     AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
  3. 4 x SATA 6Gb/s konektörler
  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

  * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

  RAID 0, RAID 1, and RAID 10 support for SATA storage devices

• USB

  İşlemci

  1. 1 x USB Type-C® port, with USB 3.2 Gen 1 support on the back panel
  2. 1 x USB 3.2 Gen 1 port on the back panel

  CPU+USB 2.0 Hub

  1. 4 x USB 2.0/1.1 ports on the back panel

  Yongaseti

  1. 1 x USB Type-C^® port with USB 3.2 Gen 1 support, available through the internal USB header
  2. 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
  3. 4 x USB 2.0/1.1 yuva dahili USB bağlantısı ile

• Dahili G/Ç Bağlantı Noktaları

  1. 1 x 24-pin ATX ana güç konektörü
  2. 1 x 8-pin ATX 12V güç konektörü
  3. 1 x CPU Fan konektörü
  4. 1 x CPU fan/water cooling pump header
  5. 1 x sistem fan başlığı
  6. 1 x sistem fan/sıvı soğutma pompa başlığı
  7. 2 x addressable RGB Gen2 LED strip headers
  8. 1 x RGB LED şerit başlığı
  9. 4 x SATA 6Gb/s konnektörü
  10. 2 x M.2 Socket 3 konnektörler
  11. 1 x ön panel başlığı
  12. 1 x ön panel ses başlığı
  13. 1 x USB Type-C^® header, with USB 3.2 Gen 1 support
  14. 1 x USB 3.2 Gen 1 header
  15. 2 x USB 2.0 / 1.1 başlıkları
  16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
      TPM özeliği, bölgesel kuralların farklılığı nedeniyle opsiyonel olabilir
  17. 1 x reset jumper
  18. 1 x Clear CMOS bağlayıcı teli

• Arka Panel G/Ç

  1. 1 x HDMI bağlantı noktası (Not:)
  2. 2 x DisplayPorts (Note)
  3. 1 x Q-Flash Plus button
  4. 1 x PS/2 Klavye/Fare bağlantı noktası
  5. 1 x USB Type-C^® port, with USB 3.2 Gen 1 support
  6. 2 x USB 3.2 Gen 1 ports
  7. 4 x USB 2.0/1.1 yuva
  8. 1 x RJ-45 bağlantı noktası
  9. 3 x ses jakı

  (Not) Gerçek destek CPU'ya göre değişebilir.

• G/Ç Denetleyicisi

  1. iTE® I/O Kontrol Yongası

• Donanım İzleme

  1. Voltaj dedektörü
  2. Sıcaklık dedektörü
  3. Fan hız dedektörü
  4. Su soğutma akış hızı algılama
  5. Fan hatası uyarısı
  6. Fan hız kontrolü
     * Fan (pompa) hız kontrolü fonksiyonunun desteklenip desteklenmediği, kurduğunuz fan (pompa) 'ya bağlıdır.

• BIOS

  1. 1 x 256 Mbit flash
  2. Lisanslı AMI UEFI BIOS kullanımı
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Diğer Özellikler

  1. Support for GIGABYTE Control Center (GCC)
     *Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  2. Q-Flash desteği
  3. Q-Flash Plus desteği
  4. Support for Smart Backup

• Bundled Software

  1. Norton® Internet Security (OEM versiyon)
  2. LAN bandwidth management software

• İşletim Sistemi

  1. Support for Windows 11 64-bit
  2. Windows 10 64-bit desteği

• Form Faktör

  1. Mikro ATX Form Faktörü; 24,4 cm x 24,4 cm

EAN Numarası: 4719331868437
