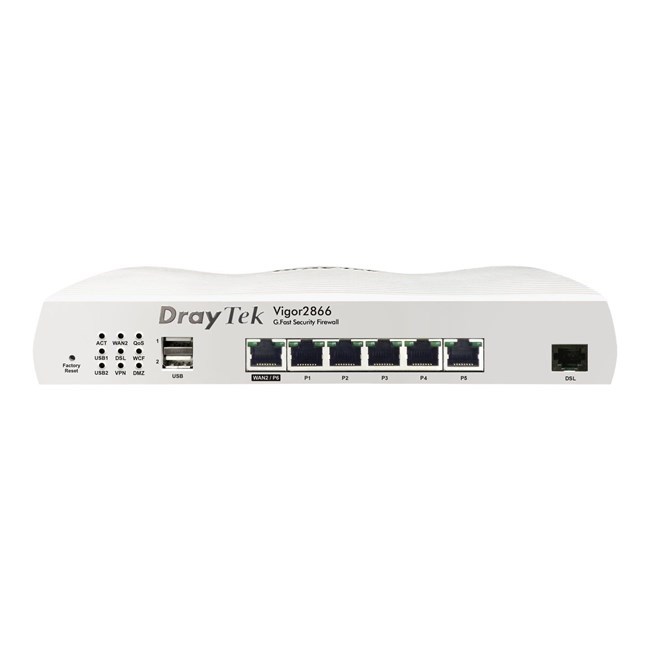

Draytek Vigor 2866 VDSL2 & ADSL2 Dual-WAN VPN Router

Model

2866

Performance

NAT Session

60K

Max. NAT (Mbps)

800

Max. NAT with Hardware Acceleration : Single WAN (Mbps)

940

Max. NAT with Hardware Acceleration : Dual WAN (Mbps)

1800

WAN

Switchable WAN/LAN (GbE)

1

xDSL

1

VDSL Standards

ITU-T G.993.2 Annex A/B/M/Q

ITU-T G.993.5 (Vectoring)

VDSL2 Profile

12a, 12b, 17a, 35b, 8a, 8b, 8c, 8d

G.fast Profile

106Mhz, 212Mhz

ADSL Standards

ITU-T G.992.3 ADSL2 (AnnexA only)

ITU-T G.992.5 ADSL2+ (G.adslplus)

Other Standards

ITU-T G.998.4 (Retransmission)

Band Plan

997, 998

3G/4G/LTE (via USB)

2

Wireless WAN (2.4GHz + 5GHz)

Internet Connection

IPv4

PPPoE

PPPoA

DHCP

Static IP

MPoA

PPTP/L2TP

IPv6

PPP

DHCPv6

Static IPv6

TSPC

AICCU

6rd

6in4 Static Tunnel

802.1p/q Multi-VLAN Tagging

Multi-VLAN/PVC

Failover

Load Balancing

IP-based, Session-based

WAN Active on Demand

Link Failure, Traffic Threshold

Connection Detection

ARP, Ping, Strict ARP

WAN Data Budget

Dynamic DNS

DrayDDNS

LAN

Fixed LAN (RJ-45, GbE)

5

LAN Subnet

8

DMZ Port

1

VLAN

802.1q Tag-based VLAN

Port-based VLAN

Max. Number of VLAN

16

DHCP Server

Multiple IP Subnet

Custom DHCP Options

Bind-IP-to-MAC

LAN IP Alias

Wired 802.1x Authentication

Port Mirroring

Local DNS Server

Conditional DNS Forwarding

Hotspot Web Portal (Profile No.)

4

Hotspot Authentication

Click-Through

Social Login

SMS PIN

Voucher PIN

RADIUS

External Portal Server

Other Ports

USB

2

USB Type

2.0

FXS (RJ-11)

Networking

Routing

IPv4 Static Route

IPv6 Static Route

Policy Route

Inter-VLAN Route

RIP v1/v2

BGP

Policy-based Routing

Protocol

IP Address

Port

Domain

Country

High Availability

DNS Security (DNSSEC)

IGMP

IGMP v2/v3

IGMP Proxy

IGMP Snooping & Fast Leave

Local RADIUS server

SMB File Sharing (Requires external storage)

VPN

LAN-to-LAN

Teleworker-to-LAN

Protocols

PPTP

L2TP

IPsec

L2TP over IPsec

SSL

GRE

IKEv2

IKEv2-EAP

IPsec-XAuth

OpenVPN

Max. VPN

32

Max. OpenVPN + SSL VPN

16

IPsec VPN (AES 256 bits) (Mbps)

300

SSL VPN (Mbps)

150

User Authentication

Local

RADIUS

LDAP

TACACS+

mOTP

IKE Authentication

Pre-Shared Key, X.509

IPsec Authentication

SHA-1, SHA-256

Encryption

MPPE

DES

3DES

AES

VPN Trunk (Redundancy)

Failover, Load Balancing

Single-Armed VPN

NAT-Traversal (NAT-T)

VPN Matcher

Firewall & Content Filtering

NAT

Port Redirection

Open Ports

Port Triggering

DMZ Host

UPnP

ALG (Application Layer Gateway)

FTP, H.323, RTSP, SIP

VPN Pass-Through

IPsec, L2TP, PPTP

IP-based Firewall Policy

Content Filtering

APP

URL Keyword

DNS Keyword

Web Category*(*subscription required)

Web Features

DoS Attack Defense

Spoofing Defense

Bandwidth Management

IP-based Bandwidth Limit

IP-based Session Limit

QoS (Quality of Service)

TOS

DSCP

802.1p

IP Address

Port

Application

VoIP Prioritization

APP QoS

Management

Local Service

HTTP

HTTPS

Telnet

SSH v2

FTP

TR-069

Config Backup/Restore

Config File Compatibility

Vigor2860, Vigor2862, Vigor2865

Firmware Upgrade

HTTP, TFTP, TR-069

2-Level Administration Privilege

Access Control

Access List, Brute Force Protection

Notification Alert

E-mail, SMS

SNMP

v1, v2c, v3

Syslog

VPN Managment

8

AP Managment (APM)

20

Mesh (Number of manageable APs)

Switch Management (SWM)

10

VigorACS Management (Since f/w)

V4.3.2

Physical

Power Input

DC 12V @ 2A

Max. Power Consumption (watts)

22.8

Dimension (mm)

241 x 166 x 46

Operating Temperature

0 to 45°C

Storage Temperature

-25 to 70°C

Operating Humidity (non-condensing)

10 to 90%
