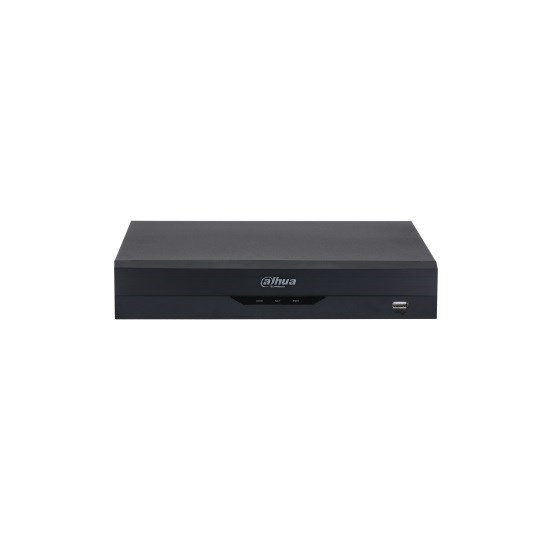

Dahua XVR5116HS-I3 16 Kanal 1080P Kayıt Cihazı

System

Main Processor

Embedded processor

Operating System

Embedded Linux

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

Advanced Model: 2 channel, 10 IVS for each channel General Model: 4 channels, 10 IVS for each channel

Face Detection

Face Attributes

6 attributes: Gender, age groups (6), glasses, expressions (8), face mask, beard, with up to four detection panels displayed at the same time.

Face Detection Performance of AI by Recorder (Number of Channels)

2 channels, and a single channel can detect up to 12 faces.

Face Recognition

Face Database Capacity

Up to 10 face databases and 10,000 pictures.

Face Recognition Performance of AI by Recorder (Number of Channels)

2 channels

SMD Plus

SMD Plus by Recorder

Full-channel SMD Plus (AI by recorder), secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog Camera Input

16 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.

Camera Input

1. CVI: 5MP, 4MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps.
2. TVI: 5MP, 4MP, 1080p@25/30, 720p@25/30 fps.
3. AHD: 5MP, 4MP, 1080p@25/30, 720p@25/30 fps.

IP Camera Input

16+8 channels, each channel up to 6MP

Encoding Capacity

All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15fps); 1080N/720p/960H/D1/CIF (1fps–25/30 fps)

Dual-stream

Supported (D1/CIF (1 fps–15 fps)).

Video Frame Rate

PAL: 1 fps–25 fps.
NTSC: 1 fps–30 fps.

Video Bit Rate

32 Kbps–6144 Kbps Per Channel

Audio Sampling

8 KHz, 16 bit Per Channel

Audio Bit Rate

64 Kbps Per Channel

Bit Rate Type

Video stream and composite stream.

Video Output

1 HDMI ,1 VGA
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720

It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode.

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25

Third-party Camera Access

Onvif, RTSP, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung;

Compression Standard

Video Compression

AI Coding/H.265+/H.265/H.264+/H.264

Audio Compression

G.711A/G.711u/PCM

Network

Network Protocol

HTTP, HTTPS, TCP / IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P

Mobile Phone Access

iPhone, iPad, Android

Interoperability

ONVIF 16.12, CGI Conformant

Browser

Chrome, IE9 or above, Firefox

Network Mode

Single-address mode

Recording Playback

Record Mode

Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Recording Playback

1/4/9/16
It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode.

Backup Method

USB Device/Network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Alarm

General Alarm

Motion detection, Video Loss, tampering

Anomaly Alarm

No disk, disk error, low space, offline, ip conflict, MAC conflict

Intelligent Alarm

Face detection, face recognition, perimeter protection

Alarm Linkage

Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email

Ports

Audio Input

1, RCA (external)
16, BNC (coaxial)

Audio Output

1, RCA

Two-way Talk

Yes (share the same audio input with the first channel)

HDD Interface

1 SATA Port, up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature

RS-485

1 Port, for PTZ Control

USB

2 USB Ports (1 USB 2.0 , 1 USB 3.0)

HDMI

1

VGA

1

Network Port

1 (10/100/1000 Mbps Ethernet port, RJ-45)

General

Power Supply

DC12V, 2A

Power Consumption

Lower than 12 W

Net Weight

1.17 kg (2.58 lb)

Gross Weight

1.57 kg (3.46 lb)

Product Dimensions

Compact 1U, 260.0 mm × 237.4 mm × 47.6 mm (W × D × H) 10.24" × 9.35" × 1.87" (W × D × H)

Packaging Dimensions

333.0 mm × 89.0 mm × 315.0 mm (L × W × H)
13.11" × 3.50" × 12.40" (L× W × H)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90%

Installation

Desktop

Certifications

CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
