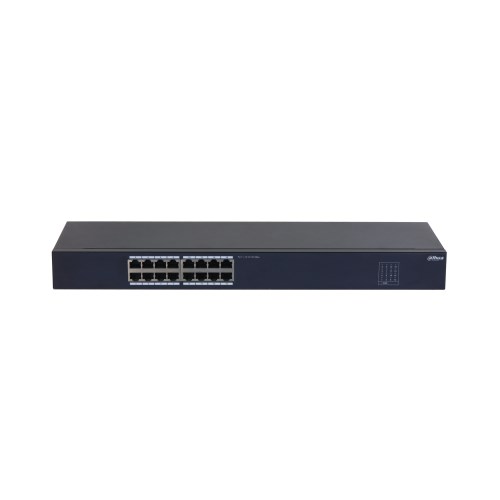

Dahua SF1016 16 Port Yönetilemez Switch

Hardware

Included Power Adapter

Yes

Ethernet Port

16

Ethernet Port Speed

10/100 Mbps

Description of Function Slots

Port 1-16: 16 × RJ-45 10/100 Mbps

Power Supply

Built-in power supply: 100–240 VAC, 50/60 Hz, max 0.7 A

Operating Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–90% (RH), non-condensing

Storage Temperature

–40 °C to +75 °C (–40 °F to +167 °F)

Power Consumption

Idling: 0.5 W Full load: 1.6 W

Performance

Layer

Layer 2

Switching Capacity

3.2 Gbps

Packet Forwarding Rate

2.38 Mpps

Packet Buffer Size

2 Mbit

Jumbo Frame

2048 Byte

MAC Table Size

8K Byte

Communication Standard

IEEE802.3; IEEE802.3u; IEEE802.3X

General

Statics Protection

Air discharge: 8 kV Contact discharge: 6 kV

Lighting Protection

Common mode: 2 kV Differential mode: 0.5 kV

Net Weight

1.57 kg (3.46 lb)

Gross Weight

2.49 kg (5.49 lb)

Product Dimensions

440 mm × 155 mm × 43.7 mm (17.32" × 6.10" × 1.72") (L × W × H)

Packaging Dimensions

523 mm × 273 mm × 109 mm (20.59" × 10.75" × 4.29") (L × W × H)

Casing Material

Iron

Installation

Desktop mount; rack mount

Certifications

CE
