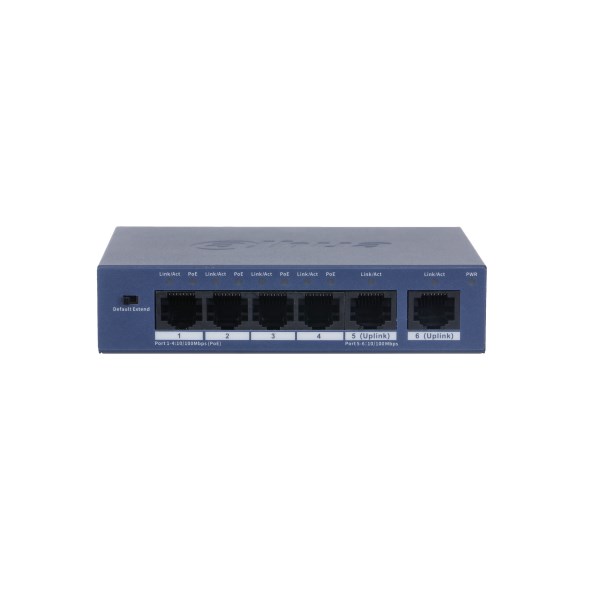

Dahua S3006-4ET-36 6 Port Yönetilemez Switch

Basic:

Layer

Unmanaged

Switching Capacity

1.2 Gbps

Packet Forwarding Rate

0.893 Mpps

Description of Function Slots

Port 1-4: 4 × RJ45 10/100 Mbps (PoE)
Port 5-6: 2 × RJ45 10/100 Mbps (Uplink)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–90% (RH), non-condensing

Storage Temperature

–40 °C to +75 °C (–40 °F to +167 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Supply

External power supply: 53 V, 50/60 Hz, max 0.8 A

Power Consumption

Idling: 1.3 W
Full load: 38.3 W

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lightning Protection

Common mode: 6 kV
Differential mode: 1 kV

Net Weight

0.19 kg (0.42 lb)

Gross Weight

0.635 kg (1.40 lb)

Product Dimensions

115.5 mm × 84.3 mm × 27 mm (4.55" × 3.32" × 1.06") (L × W × H)

Packaging Dimensions

196 mm × 115 mm × 85 mm (7.72" × 4.53" × 3.35") (L × W × H)

Casing Material

Sheet Metal

Installation

Desktop mount; wall mount

Certifications

CE

PoE:

PoE

Yes

PoE Power

Port 1-4≤30 W, total≤36 W

PoE Protocol

IEEE 802.3af; IEEE 802.3at

PoE Pin Assignment

1,2,4,5 (V+),3,6,7,8 (V-)

Long Distance PoE Transmission

Yes

Hardware:

DIP Switch

Long Distance PoE: The transmission distance of ports 1–4 can reach up to 250 meters. The negotiation speed can be reduced to 10 Mbps.

Performance:

Packet Buffer Size

768 Kbit

Jumbo Frame

2048 Byte

MAC Table Size

2K

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3x
