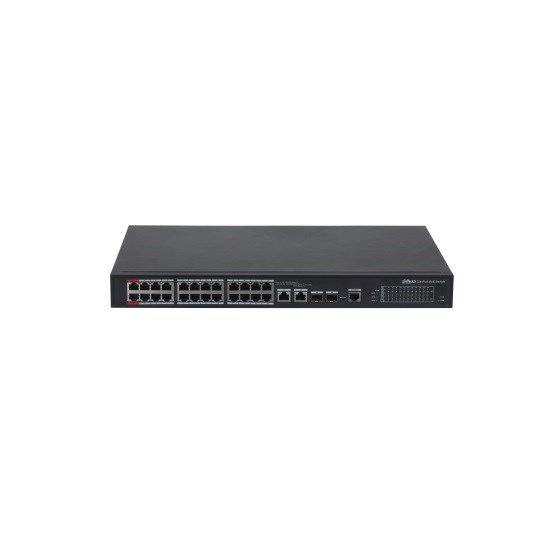

Dahua PFS4226-24ET-360-V3 24 Port 10/100 360W POE Switch

Performance

Layer

Layer 2

Managed

Yes

Switching Capacity

8.8 Gbps

Packet Forwarding Rate

6.55 Mpps

Packet Buffer Memory

2.75 Mbit

MAC Table Size

4K

Communication Standard

IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab;

IEEE 802.3z

Hardware Feature

Standard Power Supply

Yes

PoE

Yes

Ethernet Port

24

Optical Port

2

Ethernet Port Rate

100 Mbps

Optical Port Rate

1 Gbps

Number of Bussiness Card Slots

Port 1-24: 24 × RJ-45 10 M/100 M (PoE)
Port 25-26: 2 × RJ-45 10 M/100 M/1000 M (uplink)
Port 25-26: 2 × SFP 1000 M (uplink) (combo)

Debugging

Console × 1

Power Supply

100V–240V AC

Operating Temperature

–10 °C to +55 ° (14 °F to 131 °F)

Operating Humidity

10% RH–90% RH

Power Consumption

Idling: 10W
Full load: 360W

PoE

PoE Standard

IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt

PoE Budget

Port 1-2 ≤ 90W, Port 3-24 ≤ 30W, total ≤ 360W

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

PoE Management

Power consumption management
Power on and power off
Power down for overload
Green PoE
Legacy support

Long Distance PoE Transmission

250 m long-distance power supply

Function

Spanning Tree Protocol

IEEE 802.1d (STP); 802.1w (RSTP)

VLAN

IEEE802.1q Standard VLAN

Flow Control

Support IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex)

Link Aggregation

Static; LACP

Port Mirroring

One-to-one; multiple-to-one

Multicast

GMP snooping based on port

DHCP

DHCP client

Security

Hardware supports IP and MAC binding based on port, MAC filtering based on port, and IEEE802.1x port authentication

QoS

High and low priority
WRR
802.1P
DSCP
Priority based on protocol

General

ESD

Air discharge: 8kV
Contact discharge: 6kV

Thunder-proof

Common mode: 4kV
Differential mode: 2kV

Dimensions

440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73") (L × W × H)

Packaging Dimensions

Packing box: 527 mm × 412 mm × 110 mm (20.75" × 16.22" × 4.33") (L × W × H)
Protective box: 584 mm × 549 mm × 446 mm (22.99" × 21.61" × 17.56") (L × W × H)

Certification

CE, UL, FCC
