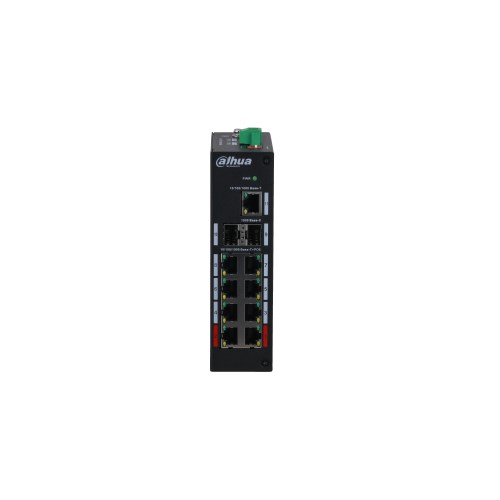

Dahua PFS3211-8GT-120 11 Port Yönetilemez Switch

Hardware Feature

Ethernet Port

Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE)

Port 9-10: 2 × SFP 1000 Mbps (uplink)

Port 11: 1 × RJ-45 10/100/1000 Mbps (uplink)

PoE Power Consumption

Port 1-2≤ 90W, Port 3-8 ≤30W, Total≤120W

Power Consumption

Idling: 5 W

Full load: 120 W

Standard

IEEE802.3/IEEE802.3u/IEEE802.3X/IEEE 802.3az/IEEE 802.3ab

PoE

PoE Protocol

IEEE 802.3af/ IEEE 802.3at/ Hi-PoE/IEEE 802.3bt

Power Supply Pin

1,2,4,5 (V+),3,6,7,8 (V-)

Long Distance

250 m long distance PoE transmission

PoE Power Management

Yes

PoE Watchdog

Yes

Performance

Switching Capacity

33 Gbps

Packet Forwarding Rate

16.37 Mpps

Packet Buffer Memory

1.75 Mbit

Flow Control

Enable by default

Working Temperature

–30 °C to +65 °C (-22°F to +149°F)

Application Humidity

5%~95% (RH)

General

Power Input

48 V - 57 V DC

Lighting Protection

Common mode 4 kV

Differential mode 2 kV

ESD Protection

Air discharge 8 kV

Contact discharge 6 kV

Wall-mount Installation

Yes

Anti-theft Lock Hole

Yes

Weight

0.67 kg (1.48 lb)

Dimension

150mm × 110mm × 42mm (5.91" × 4.33" × 1.65")
