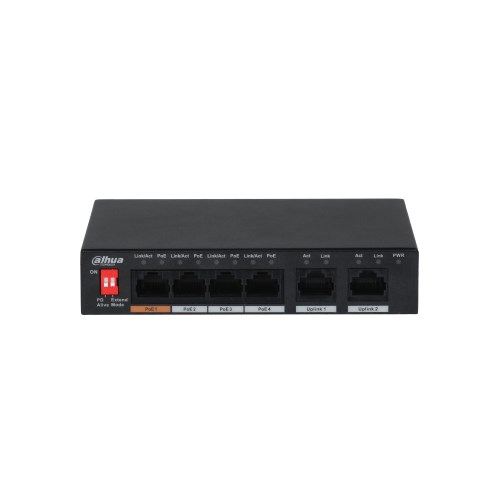

Dahua PFS3006-4ET-60 4 Port Yönetilemez Switch

Hardware:

Ethernet Port

4

Optical Port

0

Ethernet Port Rate

100 Mbps

Number of Business Card Slots

Port 1–4: 4 × RJ-45 10/100 M (PoE)
Port 5–6: 2 × RJ-45 10/100 M (uplink)

Power Supply

53V DC

Operating Temperature

–10°C to +55°C (+14°F to +131°F)

Operating Humidity

5%–95%

Storage Temperature

–20°C to +70°C (–4°F to +158°F)

Storage Humidity

5%–95%

Power Consumption

Idling: 1.5W
Full load: 60W

Performance:

Switching Capacity

1.80 Gbps

Packet Forwarding Rate

0.89 Mpps

Packet Buffer Size

1 Mbit

MAC Table Size

2K

Communication Standard

IEEE802.3, IEEE802.3u, IEEE802.3x

PoE:

PoE Standard

IEEE802.3af/IEEE802.3at/Hi-PoE

PoE Power

60W

PoE Power Consumption Management

Yes

PoE Pin Assignment

PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Far Distance Mode

250 m @10 Mbps

General:

ESD

Air discharge: 8kV
Contact discharge: 6kV

Thunderproof

Common mode: 2kV
Differential mode: 1kV

Net Weight

0.3 kg (0.66 lb)

Gross Weight

0.9 kg (1.98 lb)

Product Dimensions

130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02")

Packaging Dimensions

267 mm × 239 mm × 77 mm (10.51" × 9.41" × 3.03")
