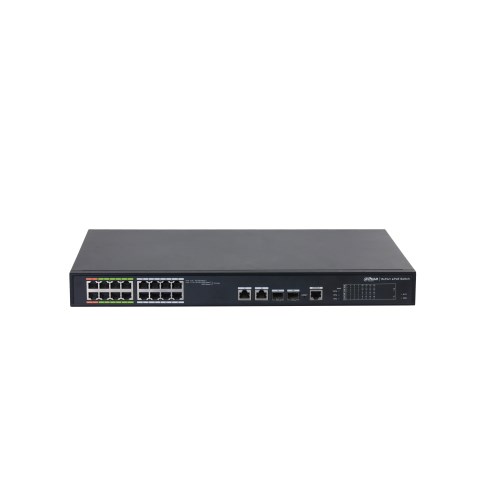

Dahua LR2218-16ET-240 16 Port Yönetilebilir Switch

Hardware

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

16

Ethernet Port Speed

10/100 Mbps

Ethernet Port Uplink Speed

10/100/1000 Mbps

Optical Port Uplink Speed

1 Gbps

Description of Function Slots

Port1–16: 16 × RJ–45 10/100 Mbps;
Port17–18: 2 × RJ–45 10/100/1000 Mbps;
Port17–18: 2 × SFP 1000 Mbps (combo)

Debugging

1 × Console port

Reset Button

1

Power Supply

Built-in power supply: 100–240 VAC, 50/60 Hz, 6 A

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

5%–95% (RH)

Storage Temperature

–20 °C to +70 °C (–4 °F to +158 °F)

Storage Humidity

5%–95% (RH)

Power Consumption

Full load: 240 W

Performance

Layer

Layer 2

Management Type

Yes

Switching Capacity

8.8 Gbps

Packet Forwarding Rate

5.36 Mpps

Packet Buffer Size

2.75 Mbit

MAC Table Size

4K

VLAN Number

31

Communication Standard

IEEE802.3; IEEE802.3u; IEEE802.3X; IEEE 802.3ab; IEEE 802.3z

Feature

PoE Protocol

IEEE802.3af; IEEE802.3at; Hi-PoE

PoE Power

Port 1–2 ≤60 W;
Port 3–16 ≤30 W;
Total ≤240 W

PoE Power Consumption Management

PoE power consumption management;
PoE power on/off;
Turns off PoE if overload is detected;
Green PoE

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

ePoE

Yes

Spanning Tree Protocol

STP/RSTP

VLAN Function

Port-based VLAN

Link Aggregation

Static link aggregation
LACP

IEEE 802.3x Flow Control

Yes

Multicast

IGMP Snooping v1/v2

DHCP Function

DHCP Client

Security

Multi-level user management and password; protection;
802.1X;
RADIUS;
Port isolation

QoS/ACL

SP/WRR queue scheduling

Equipment Management

SNMPv1/v2/v3;
System logs, and multi-level alarms;
LLDP

General

Statics Protection

Air discharge: 8 kV;
contact discharge: 6 kV

Lighting Protection

Common mode: 4 kV;
differential mode: 2 kV

Net Weight

3.14 kg (6.92 lb)

Gross Weight

4.12 kg (9.08 lb)

Product Dimensions

440 mm × 300 mm × 44 mm
(17.32"" × 11.81"" × 1.73"") (L × W × H)

Packaging Dimensions

565 mm × 530 mm × 415 mm (22.24" × 20.87" × 16.34") (L × W × H)

Casing Material

Sheet metal

Installation

Desktop mount; rack mount

Certifications

CE; FCC
