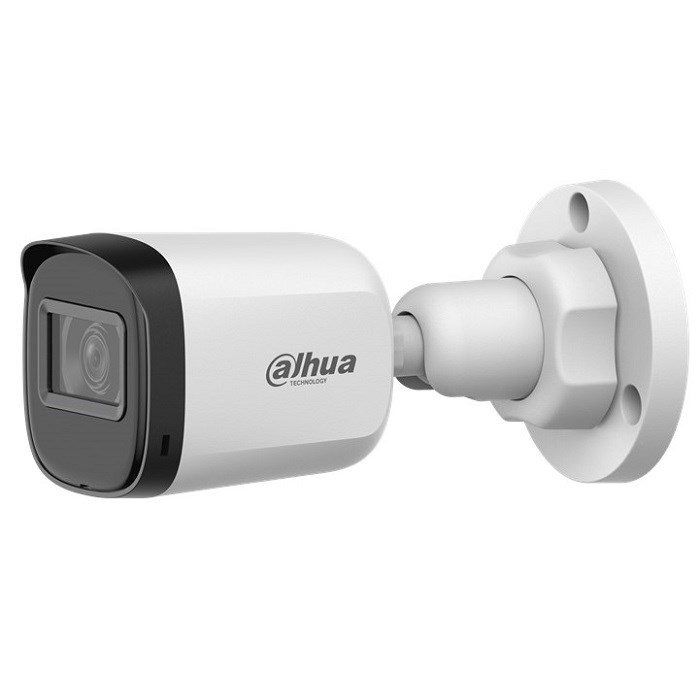

Dahua HAC-B1A21-U-0360B 2MP Bullet HDCVI Kamera

Max. 30 fps@1080p

CVI/CVBS/AHD/TVI switchable

3.6 mm fixed lens (2.8 mm, 6 mm optional)

Max. IR length 20 m, Smart IR

IP67,12 VDC

Camera
Pixel 2 MP
Image Sensor 2MP CMOS
Max. Resolution 1920 (H) × 1080 (V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
Min. Illumination
0.04 [email protected] (Color, 30 IRE)
0.004 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >65 dB
Illumination Distance 20 m (65.62 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR light)
Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm; 3.6 mm; 6 mm
Max. Aperture F2.0
Field of View
2.8 mm: H: 100°; V: 53°; D: 120°
3.6 mm: H: 82°; V: 42°; D: 98°
6 mm: H: 53°; V: 30°; D: 60°
Iris Control Fixed
Close Focus Distance
2.8 mm: 0.6 m (1.97 ft)
3.6 mm: 1.0 m (3.28 ft)
6 mm: 2.0 m (6.56 ft)

Video
Video Frame Rate
CVI:
PAL: 1080p@25 fps; 720p@25 fps
NTSC: 1080p@30 fps; 720p@30 fps
TVI:
PAL: 1080p@25 fps; 720p@25 fps
NTSC: 1080p@30 fps; 720p@30 fps
AHD:
PAL: 1080p@25 fps; 720p@25 fps
NTSC: 1080p@30 fps; 720p@30 fps
CVBS:
PAL: 960H
NTSC: 960H
Resolution 1080p (1920 × 1080); 720p (1280 × 720); 960H (960 ×
576/960 × 480)
Day/Night Auto (ICR)/Color/B/W
BLC BLC; HLC; DWDR

WDR DWDR
White Balance Auto; Area white balance
Gain Control Auto/Manual
Noise Reduction 2D NR
Smart Illumination Yes
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)

Certification
Certifications
CE (EN55032:2015, EN61000-3-2:2014, EN61000-
3-3:2013, EN55024:2010+A1:2015, EN55035:2017,
EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)


Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port


Power
Power Supply 12 VDC ± 30%
Power Consumption Max. 2.7 W (12 VDC, IR on)


Environment
Operating Temperature –40 °C to +60 °C (–40 °F to 140 °F)
Operating Humidity <95% (RH), non-condensing
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Protection IP67


Structure
Casing Plastic
Product Dimensions 149.3 mm × 69.8 mm × 69.8 mm (5.88" × 2.75" × 2.75")
Packaging Dimensions 164 mm × 79 mm × 90 mm (6.46" × 3.11" × 3.54")
Net Weight 0.14 kg (0.31 lb)
Gross Weight 0.17 kg (0.37 lb)
Installation Wall mount; ceiling mount; horizontal pole mount

EAN Numarası: 6923172577368
