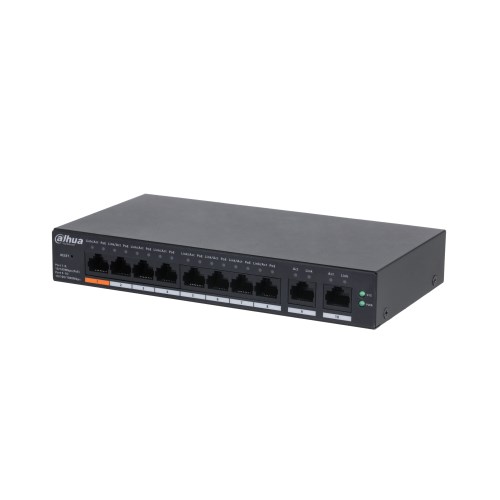

Dahua CS4010-8ET-60 8 Port Cloud Managed Switch

Basic:

Layer

Layer 2

Switching Capacity

4.8 Gbps

Packet Forwarding Rate

3.57 Mpps

Description of Function Slots

Port 1-8: 8 × RJ-45 10/100 Mbps (PoE); Port 9-10: 2 × RJ-45 10/100/1000 Mbps (uplink)

PoE Power

Port 1 ≤ 60 W, Port 2-8 ≤ 30 W, total ≤ 60 W

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

5% –95% (RH), non-condensing

Power Consumption

Idling: ≤3 W;

Full load: 65 W

Power Supply

External power supply: 53 VDC, 1.226 A

Statics Protection

Air discharge: 8 kV; Contact discharge: 6 kV

Lightning Protection

Common mode: 4 kV; Differential mode: 2 kV

Net Weight

0.28 kg (0.64 lb)

Product Dimensions

130 mm × 90 mm × 26 mm (5.11" × 3.54" × 1.02") (L × W × H)

Hardware:

PoE

Yes

Reset Button

1

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

5%–95% (RH), non-condensing

Performance:

MTBF

232.62 years

Packet Buffer Size

4 Mbit

Jumbo Frame

9216 Byte

MAC Table Size

8K

VLAN Number

32

Communication Standard

IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab

Feature:

PoE Protocol

IEEE802.3af; IEEE802.3at; Hi-PoE

PoE Power Consumption Management

Yes

PoE Pin Assignment

1,2,4,5（V+）,3,6,7,8（V-）

Long Distance PoE Transmission

Yes

VLAN Function

Port-based VLAN

IEEE 802.3x Flow Control

Yes

DHCP Function

DHCP Client

Equipment Management

Web management; App management

General:

Gross Weight

0.80 kg (1.76 lb)

Packaging Dimensions

265 mm × 238 mm × 76 mm (10.43" × 9.37" × 2.99") (L × W × H)

Casing Material

Sheet metal

Installation

Desktop mount; wall mount

Certifications

CE
