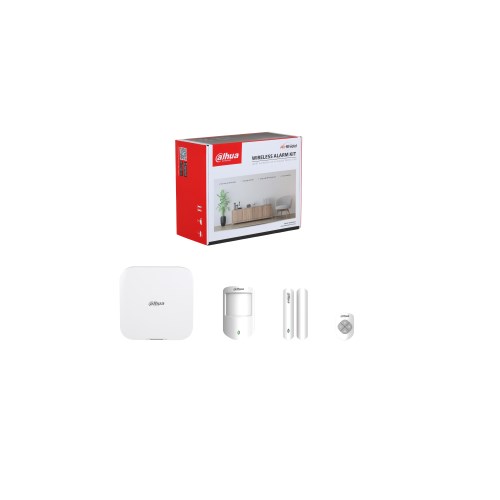

Dahua ART-ARC3800H-03-W2(868) Wireless Alarm Kit

Port:

Wireless Zone

Hub:150 channels wireless peripherals (6 sirens, 64 PIR cameras(only 8 indoor PIR cameras), 64 keyfobs, 8 keypads and 4 repeaters)

Network Mode

Hub:Ethernet and Wi-Fi

Network Port

Hub: 1 RJ-45, 10 Mbps/100 Mbps Ethernet port.

Storage Battery

Hub: One built-in 4,750 mAh rechargeable lithium battery.

Video & Audio:

Video Input

Hub: 8-ch IPC, which only supports the upload of alarm videos.

Audio Output

Hub: 1 channel

Volume Control

Hub: Yes

Voice Broadcast

Hub: Local speaker

Function:

Indicator Light

Hub: The indicator indicates the status of alarms, arming and disarming, the network connection and device failure.
Keyfob: 1 dual-color status indicator (Green means normal and red means abnormal)
Door Detector: 1 green alarm indicator
PIR Detector: 1 green alarm indicator

Button

Hub: Includes a reset button, voltage button and AP switch button.
Keyfob: 4 (Home, Away, Disarm, and SOS)
Door Detector: 1 power switch
PIR Detector: 1 power switch

Video Linkage

Hub: Yes

Offline Cache

Hub: Stores up to 50 alarm messages.

Arm and Disarm

Hub: App, Keypad, remote control, card, scheduled arming and disarming.

Remote Update

All: Cloud update

Low Battery Detection

All: Yes

Tamper

Hub: Yes
Door Detector: Yes
PIR Detector: Yes

User Management

Hub: 33 app users (31 general users, 1 admin user and 1 installer) and 32 keypad users

Logs

Hub: Up to 5, 000 entries

Measuring Range (Temperature)

Door Detector: –15 °C to +65 °C (+5 °F to +149 °F) (indoor)
PIR Detector: –15 °C to +65 °C (+5°F to +149 °F) (indoor)

Transmission Protocol

Hub: SIA, SoftGuard

Technical:

Sensor

Door Detector: Reed switch
PIR Detector: Dual elements low-noise PIR sensor

Detection Mode

PIR Detector: PIR

Sensitivity

PIR Detector: 3 levels adjustable

Detection Range

PIR Detector: 12 m (39.37 ft) (90°) with installation height of 2.2 m (7.21 ft)

Detection Speed

PIR Detector: 0.3 m/s–3 m/s (0.98 ft/s–9.84 ft/s)

Movement Distance

Door Detector: < 40 mm (1.57")

Pet Immunity Level

PIR Detector: ≤ 18 kg (39.68 lb)

White Light Resistance Level

PIR Detector: 2000 lx

Two-way Digital Temperature Compensation

PIR Detector: Yes, no attenuation of detection distance in high temperature.

Scenario

Door Detector: Non-metal doors

Wireless:

Carrier Frequency

All: 868.0 MHz–868.6 MHz

Transmitter Power (EIRP)

All: Limit 25 mW

Communication Mechanism

All: Two-way

Communication Distance

Hub: Up to 2,000 m (6561.68 ft) in an open space.
Keyfob: Up to 900 m (2952.76 ft) in an open space.
Door Detector: Up to 1,200 m (3937.01 ft) in an open space.
PIR Detector: Up to 1,600 m (5249.34 ft) in an open space.

Encryption Mode

All: AES128

Frequency Hopping

All: Yes

General:

Language

Hub: English

Power Supply

Hub: 100-240 VAC, 50/60 HZ
Keyfob: CR2032 battery
Door Detector: CR123A battery
PIR Detector: CR123A battery

Standby Time

Hub:The battery lasts up to 12 hours when it is fully charged and is within the following conditions: It is connected to the Wi-Fi, its ID is connected to the alarm receiving center, the heartbeat interval is 1,800 seconds, and it is connected to 8 peripherals and the cloud.
Keyfob: 3 years
Door Detector: 4 years
PIR Detector: 4 years

Power Consumption

Hub: 220 VAC 80 mA(Max) 220 VAC 40 mA(Standby)
Keyfob: 40 mA(Max), 0.5 uA (Standby)
Door Detector: 42 mA(Max), 29 uA (Standby)
PIR Detector: 44 mA(Max), 34 uA (Standby)

Operating Temperature

All: –10 °C to +55 °C (+14 °F to +131 °F) (indoor)

Operating Humidity

All: 10%–90% (RH)

Product Dimensions

Hub: 174.8 mm × 174.8 mm × 38.3 mm (6.88” × 6.88” × 1.51”) (L × W × H)
Keyfob: 60.0 mm × 39.5 mm × 15.0 mm (2.36" × 1.56" × 0.59") (L × W × H)
Door Detector: 100.2 mm × 20.8 mm × 20.3 mm (3.94" × 0.82" × 0.80") (L × W × H)
PIR Detector: 104.0 mm × 60.0 mm × 50.0 mm (4.09" × 2.36" × 1.97") (L × W × H)

Net Weight

Hub: 510 g (1.12 lb)
Keyfob: 20 g (0.04 lb)
Door Detector: 70 g (0.15 lb)
PIR Detector: 100 g (0.22 lb)

Gross Weight

Kit: 1.46 kg (3.22 lb)

Installation

Hub: Wall mount; Desktop mount
Door Detector: Bracket mount
PIR Detector: Wall mount

Casing Material

All: PC + ABS

Certifications

Hub:
CE
EN 50131-1:2006+A1:2009+A2:2017+A3:2020
EN 50131-3:2009
EN 50131-6:2017+A1:2021
EN 50131-5-3:2017
EN 50131-10: 2014
EN 50136-2: 2013+A1:2023
Security Grade 2
Environmental Class II
ATS category: SP2/DP2
Keyfob:
CE
EN 50131-1:2006+A1:2009+A2:2017+A3:2020
EN 50131-6:2017
EN 50131-5-3:2017
EN 50131-3:2009
Security Grade 2
Environmental Class II
Door Detector:
CE
EN 50131-1:2006+A1:2009+A2:2017+A3:2020
EN 50131-6:2017
EN 50131-5-3:2017
EN 50131-2-6:2008
Security Grade 2
Environmental Class II
PIR Detector:
CE
EN 50131-1:2006+A1:2009+A2:2017+A3:2020
EN 50131-2-2:2017
EN 50131-6:2017
EN 50131-5-3:2017
Security Grade 2
Environmental Class II

Anti-corrosion Level

Basic Protection

Storage Temperature

All: –10 °C to +55 °C (+14 °F to +131 °F)

Storage Humidity

All: 10%–90% (RH)

Packaging Dimensions

Kit: 270 mm × 218 mm × 122 mm (10.63" × 8.58" × 4.80") (L × W × H)

Wi-Fi:

Wi-Fi Standard

Hub:IEEE 802.11b/g/n

Wi-Fi Frequency Range

Hub:2400-2483.5 MHz

Wi-Fi Power Transmission

Hub:≤20 [email protected] MHz
